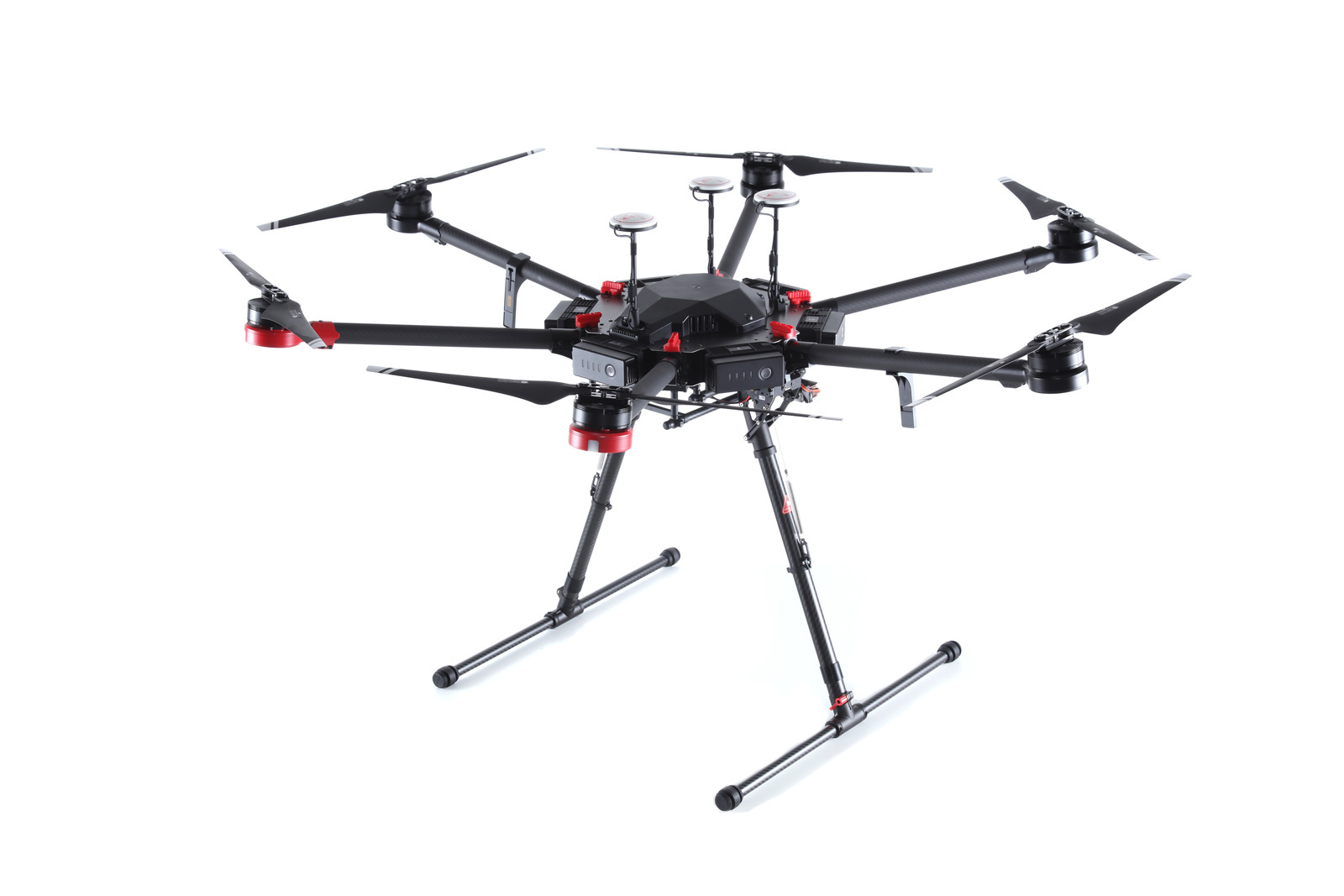

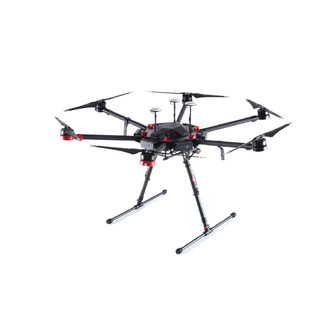

DJI Matrice 600 Pro
The Matrice 600 Pro (M600 Pro) inherits everything from the M600 with improved flight performance and better loading capacity.

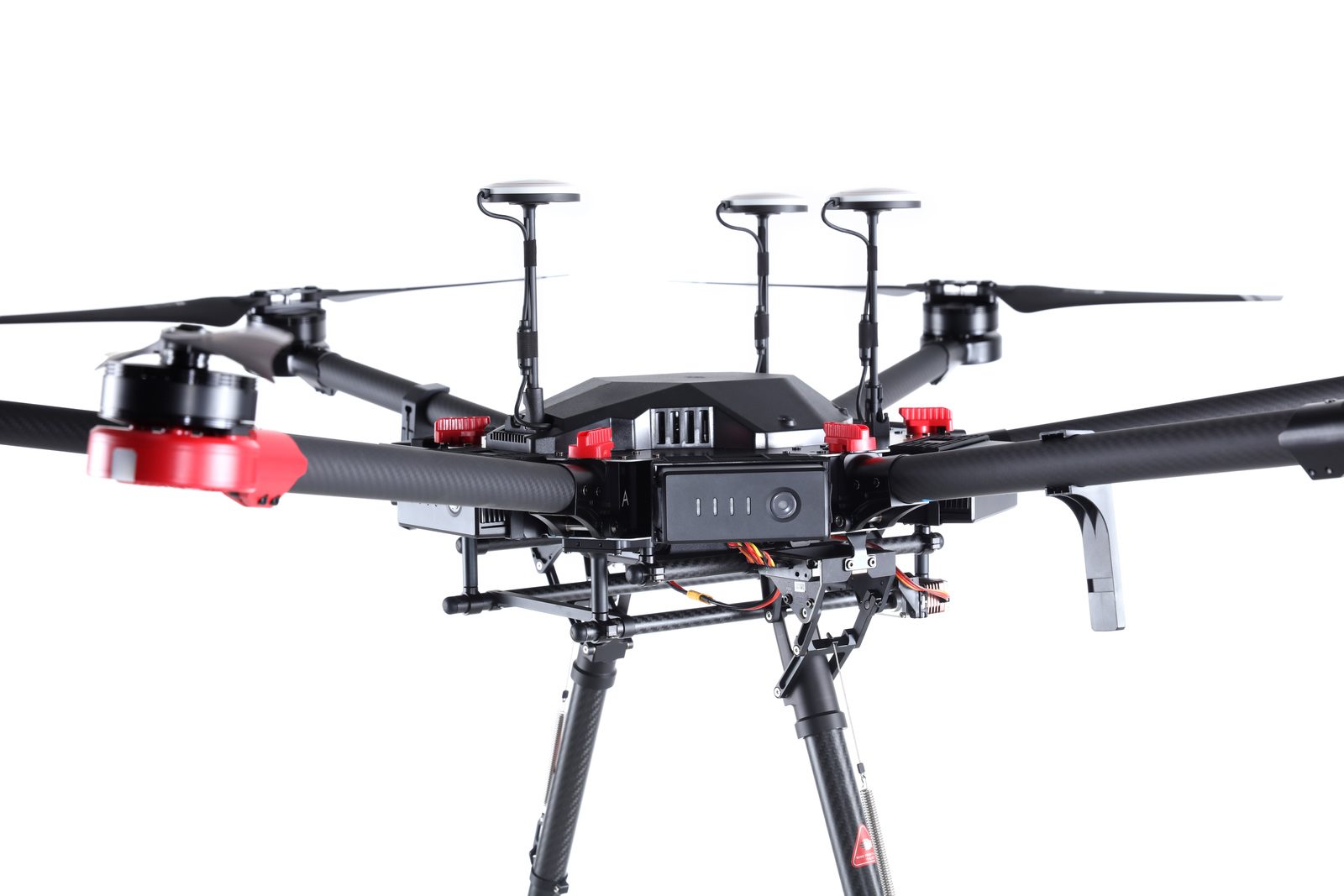

Pre-installed arms and antennas reduce time required for setup, and the system’s modular design makes it easy to mount additional modules.The airframe is equipped with the latest DJI technologies, including the A3 Pro flight controller, Lightbridge 2 HD transmission system, Intelligent Batteries and Battery Management system. All Zenmuse cameras and gimbals are natively compatible and full integration with third party software and hardware make the M600 Pro ideal for professional aerial photography and industrial applications.
Aerial Imaging Solution

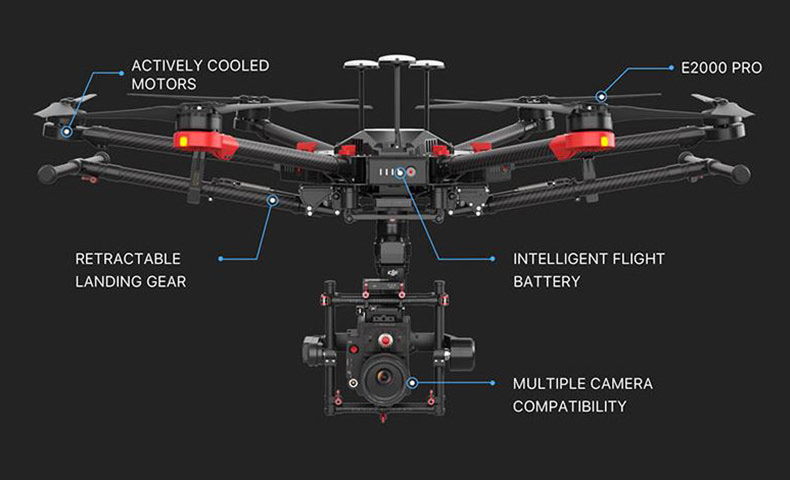

Dustproof propulsion systems simplify maintenance and active cooling motors ensure that operation is reliable for extended periods of time. The M600 Pro is natively compatible with current Zenmuse cameras and gimbals. With a maximum payload of 6kg, it effortlessly supports the Ronin-MX gimbal, DJI Focus and a range of cameras from Micro Four Thirds systems to the RED EPIC.

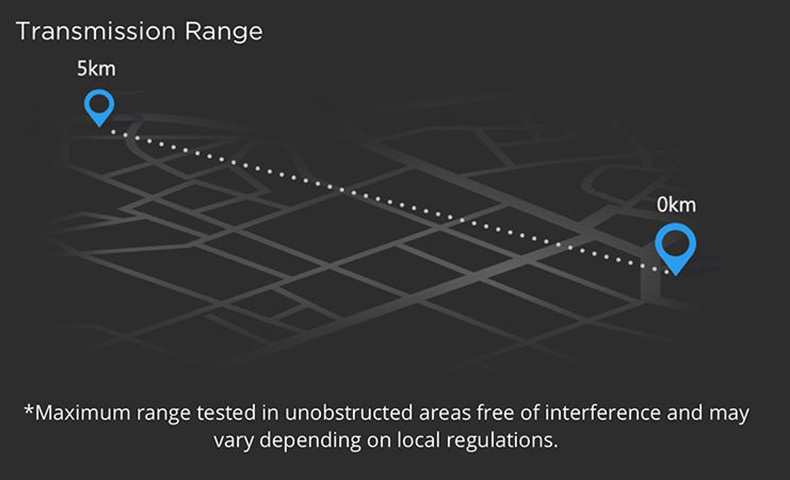

Extended Flight Time and Transmission Range
The M600 Pro has an extended flight time and a 5km* long-range transmission. A comprehensive battery management system means that if any of its six Intelligent Batteries are turned on or off, the rest will follow suit. The battery management system monitors every battery during flight, ensuring safe landing in the event of single battery failure. Compared to traditional non-intelligent batteries, the M600 Pro’s battery management system simplifies maintenance while enhancing security.
Professional HD Transmission
DJI Lightbridge 2 has been designed to meet all the requirements of professional broadcasting, offering high frame rates and HD live streaming. USB, mini-HDMI, 3G-SDI ports and Lightbridge 2 Ground Unit all support video output at up to 1080p/60fps. Dynamic, self-adaptive wireless data links enable long-range transmission with ultra-low latency, supporting a broadcast standard output of 720p/59.94fps and 1080i/50fps, enabling even more creative opportunities for aerial imaging.
Using dual antennas, the D-RTK GNSS system is a significant breakthrough for high-precision industrial applications. It is able to withstand strong magnetic interference and provides centimeter-level accuracy in environments with metal structures.
Open SDK Development
The M600 Pro is fully compatible with the DJI Onboard SDK and Mobile SDK to meet the requirements of those building software for various industrial applications. It has four - dual parallel - CAN ports and one API port for connecting DJI devices, including the D-RTK GNSS units or third party components of your choice.
Powerful App Control
The M600 Pro supports the DJI GO app and DJI Assistant 2. Get a live HD view, battery status, redundancy status, transmission strength and much more, straight from the DJI GO app. DJI GO is also the control center for the camera, giving access to shutter speed, ISO, photo or video capture, on any Zenmuse series camera and remote focus and aperture control on the Zenmuse X5 and X5R cameras. DJI Assistant 2 supports firmware updates and Ground Station, and comes with a built-in flight simulator.
A3 Pro Flight Controller, Superlative Performance
Complete Integration, Ultra Convenient

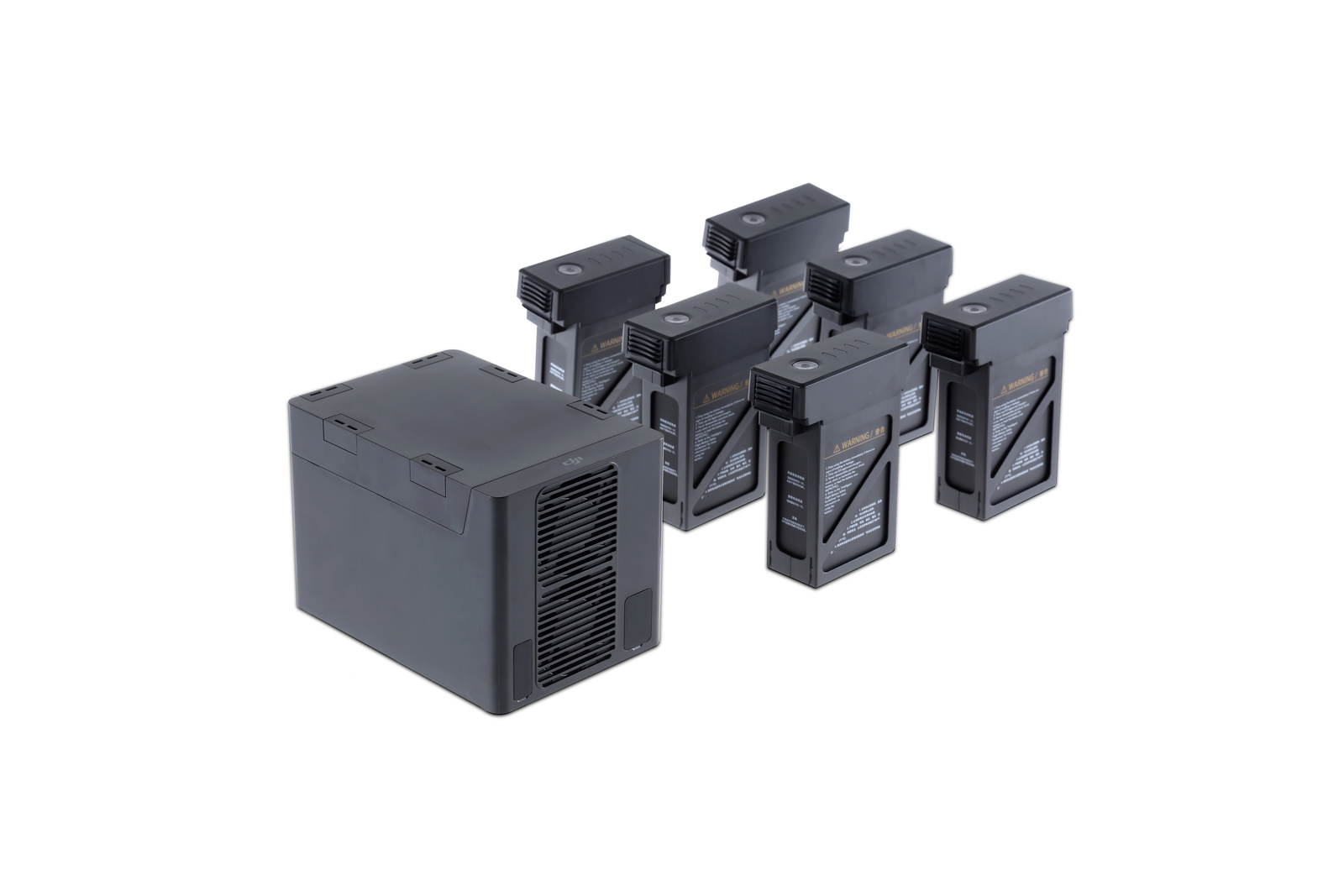

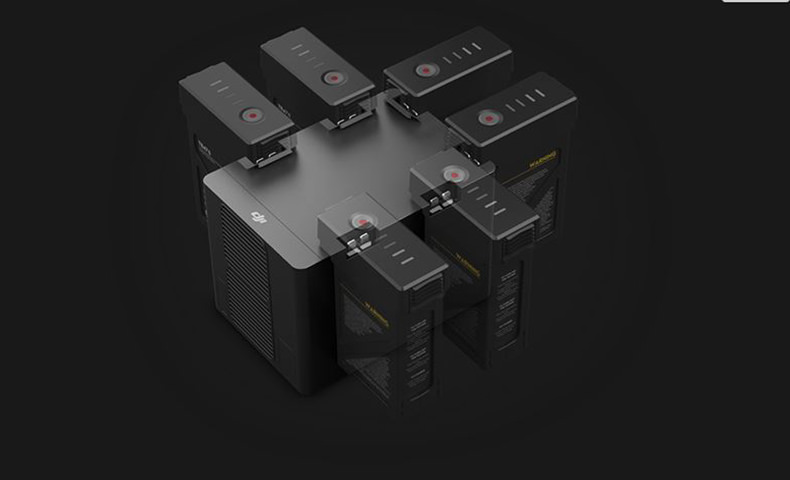

Charge Six Batteries Simultaneously
Aerial Imaging Solution
Extended Flight Time and Transmission Range
Professional HD Transmission
Diagonal Wheelbase: 1133 mm
1668 mm x 1518 mm x 727 mm with propellers, frame arms and GPS mount unfolded (including landing gear)
437 mm x 402 mm x 553 mm with propellers, frame arms and GPS mount folded (excluding landing gear)
Package Dimensions: 525 mm x 480 mm x 640 mm
Weight: (with six TB47S batteries) 9.5 kg
Weight: (with six TB48S batteries) 10 kg
Max Takeoff Weight Recommended: 15.5 kg
Hovering Accuracy: (P-GPS) Vertical: ±0.5 m, Horizontal: ±1.5 m
Max Angular Velocity Pitch: 300°/s, Yaw: 150°/s
Max Pitch Angle: 25°
Max Wind Resistance: 8 m/s
Max Ascent Speed: 5 m/s
Max Descent Speed: 3 m/s
Max Service: Ceiling Above Sea Level
2170R propellers: 2500 m; 2195 propellers: 4500 m
Max Speed: 40 mph / 65 kph (no wind)

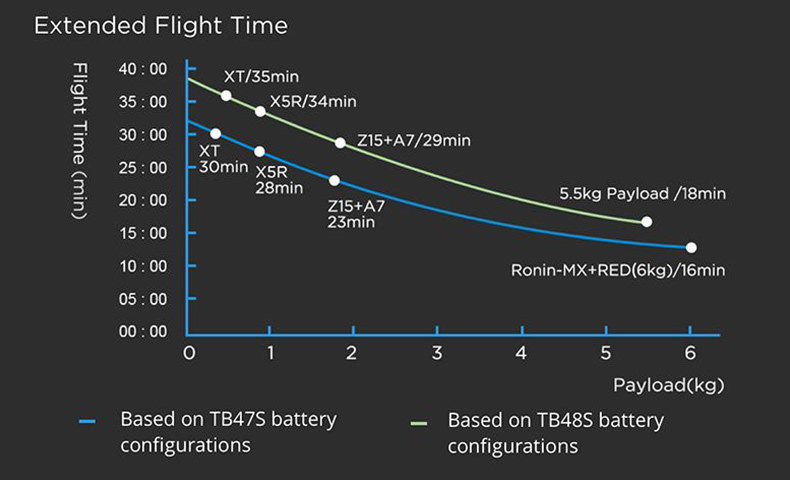

Hovering Time* (with six TB47S batteries) No payload: 32 min, 6 kg payload: 16 min
Hovering Time* (with six TB48S batteries) No payload: 38 min, 5.5 kg payload: 18 min
Supported DJI Gimbals: Ronin-MX; Zenmuse Z30, Zenmuse X5/X5R, Zenmuse X3, Zenmuse XT; Zenmuse Z15 Series HD Gimbal: Z15-A7, Z15-BMPCC, Z15-5D III, Z15-GH4
Flight Control System: A3 Pro
Motor model: DJI 6010
Propeller model: DJI 2170R
Retractable Landing Gear: Standard
Operating Temperature: 14° F to 104° F (-10° C to 40° C)
Voltage Output: 26.1 V
Rated Power: 600 W
Single Battery Port Output Power: 100 W
Operating Frequency: 920.6 MHz to 928 MHz (Japan); 5.725 GHz to 5.825 GHz; 2.400 GHz to 2.483 GHz
Max Transmission Distance FCC Compliant: 3.1 mi (5 km), CE Compliant: 2.2 mi (3.5 km) (Unobstructed, free of interference)
Transmitter Power: (EIRP) 10 dBm @ 900M, 13 dBm @ 5.8G, 20 dBm @ 2.4G
Video Output Port: HDMI, SDI, USB
Operating Temperature: 14°F to 104° F (-10° to 40° C)
Battery: 6000 mAh LiPo 2S
Standard Battery (TB47S)
Capacity: 4500 mAh
Voltage: 22.2 V
Battery Type: LiPo 6S
Energy: 99.9 Wh
Net Weight: 595 g
Operating Temperature: 14° F to 104° F (-10°C to 40° C)
Max Charging Power: 180 W
Additional Battery Option (TB48S)
Capacity: 5700 mAh
Voltage: 22.8 V
Battery Type: LiPo 6S
Energy: 129.96 Wh
Net Weight: 680 g
Operating Temperature: 14°F to 104° F (-10°C to 40° C)
Max Charging Power: 180 W

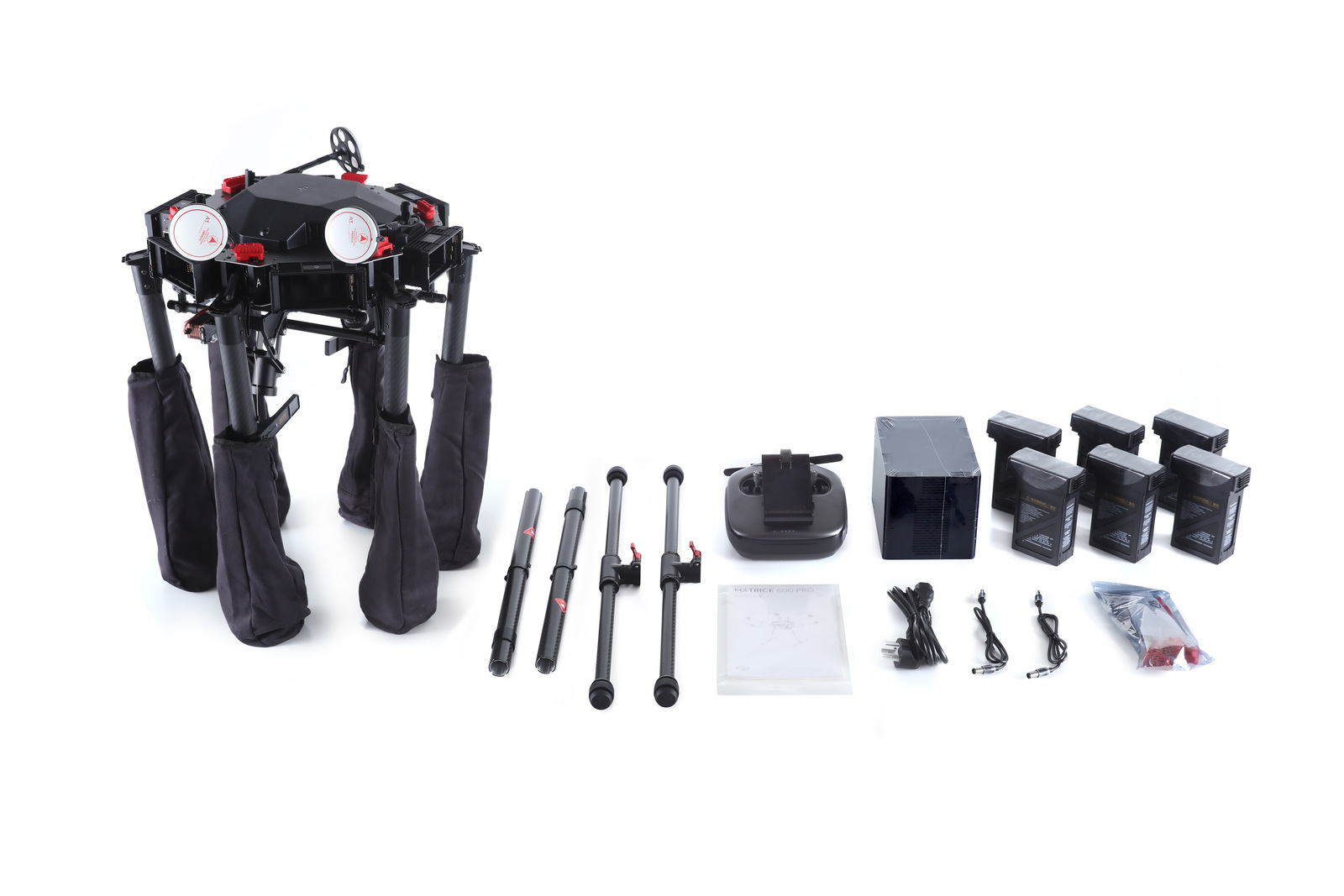

In the box
Aircraft Body (With Arm Sleeves) x 1
Landing Gear Leg x 2
Landing Skid x 2
Spring x 2

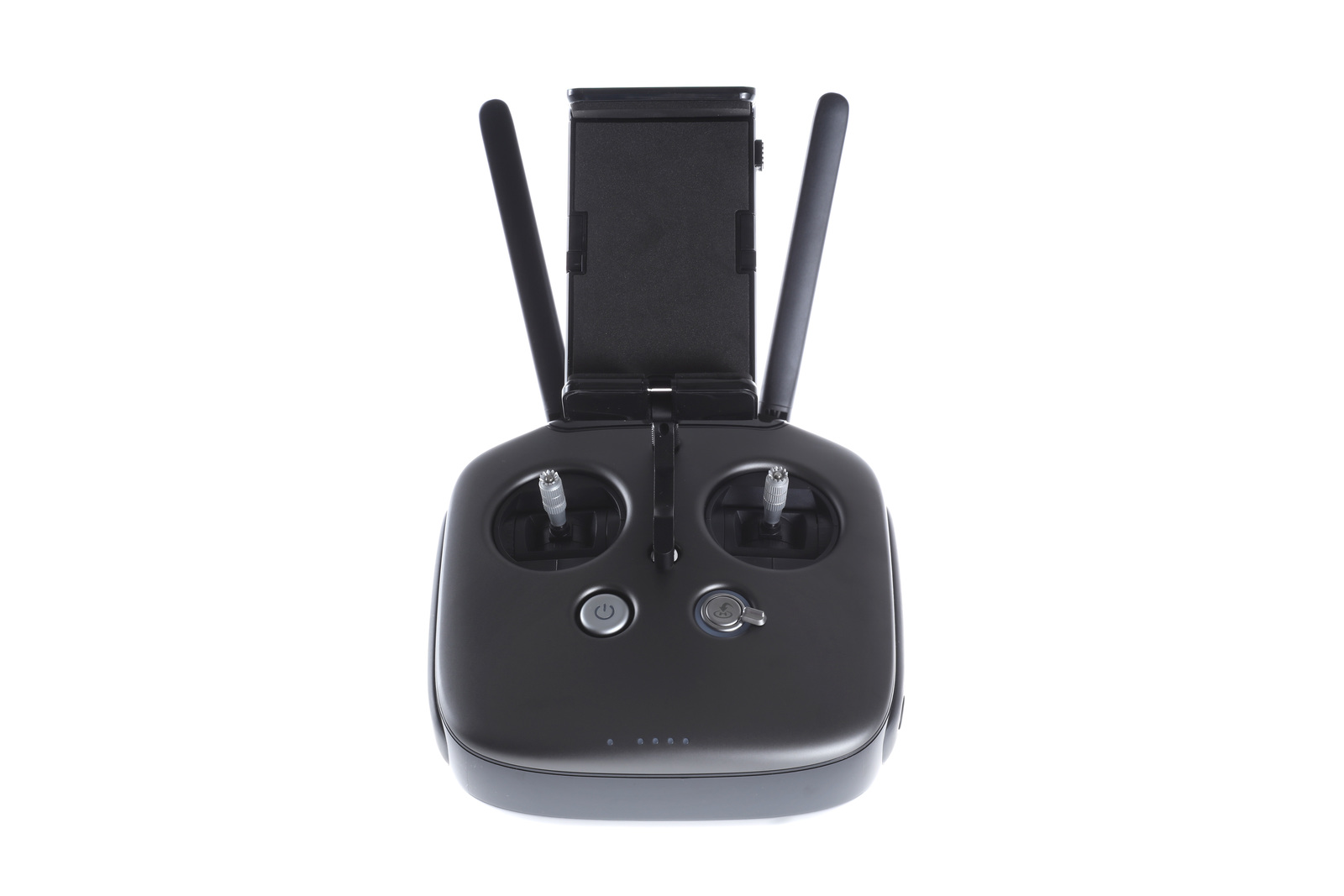

Remote Controller x 1
Intelligent Flight Battery (TB47S) x 6
Hex Charger x 1

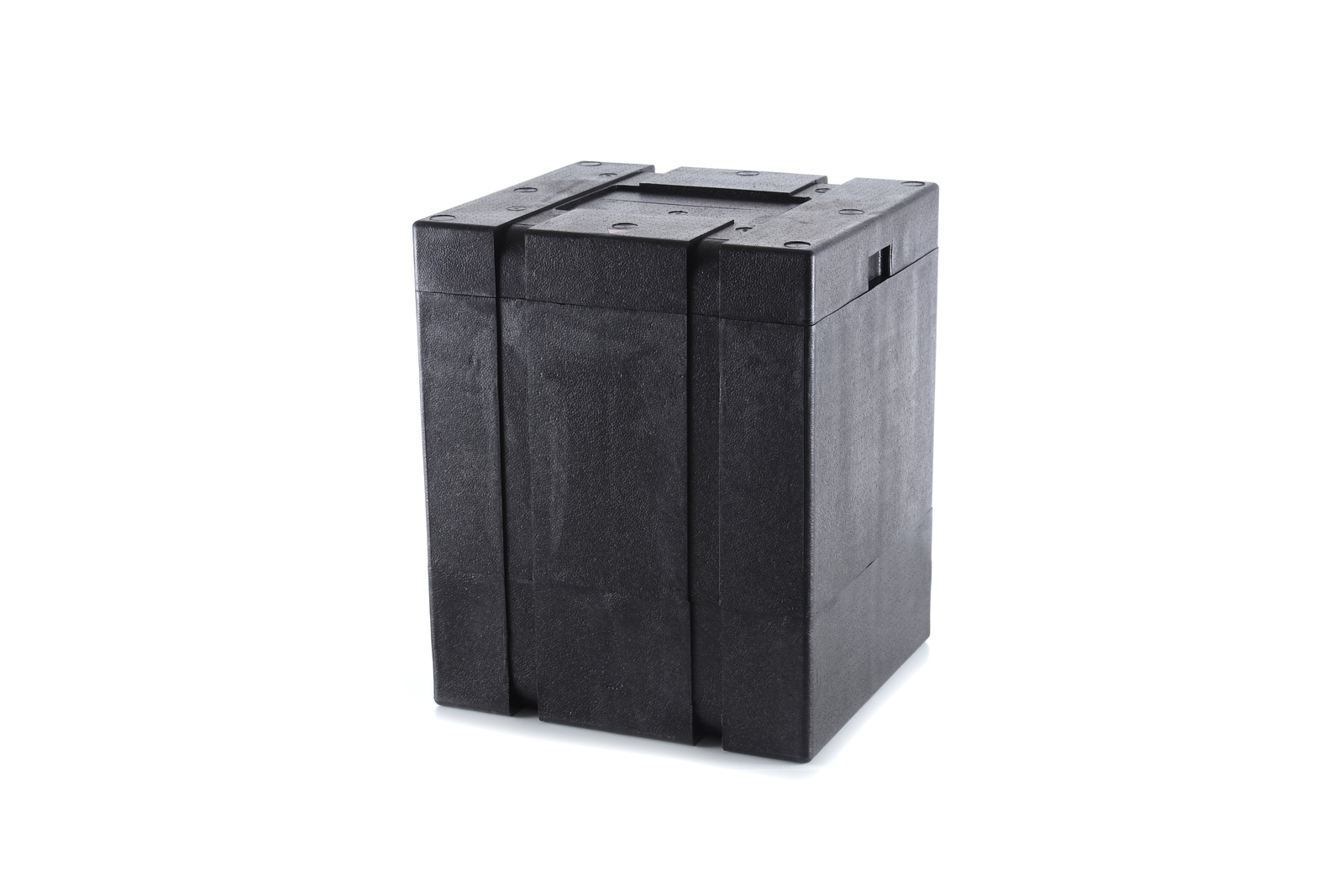

Inner Foam Case x 1
Power Cable x 1
RC Charging Cable x 2
Micro USB Cable x 1
Knob (With Gasket) x 6
WHY BUY FROM US?
By buying from Ferntech, you'll have the confidence that you are dealing directly with New Zealand's leading drone experts. Our staff are knowledgable drone pilots who offer expert advice, trusted support and superior specialist service. Only through us will you receive a full New Zealand warranty, phone and email support, and access to our certified Repairs Centre with DJI-qualified drone technicians. And we guarantee that we will have the best prices on the market — if not let us know and we will match any price (conditions apply).
Central Board: 12 Months
Remote Controller: 12 Months
Remote Controller: Channel Expansion Kit 12 Months
Motor: 6 Months
Battery: 6 Months and Charge Cycle less than 200 Times
Battery Charger: 6 Months
Battery Charging Hub: 6 Months
Frame: No Warranty
Propeller: No Warranty
What are the new features of the Matrice 600 when compared to the S1000+?
The S1000+ is merely an aerial platform and has no integrated electronic devices on board. The M600 is a fully integrated aerial platform designed for professional film making and industrial application. The on-board A3 flight controller ensures reliable flight performance while the E2000 Pro propulsion system effectively increases payload. Also, multiple expansion ports guarantee maximized compatibility with add-on devices. The M600 also integrates the Lightbridge 2 transmission system, bringing live HD view and the ability to communicate directly gimbals such as the Ronin-MX.
What is the maximum payload of the M600?
When 6 TB47S batteries are installed, the maximum payload is 6kg. When 6 TB48S batteries are installed, the maximum payload is 5.5kg.
What is the maximum flight time of the M600?
With TB47S batteries, the M600 can fly for 35 minutes with no extra payload or 16 minutes with 6kg of payload. With TB48S batteries, the M600 can fly for 40 minutes with no extra payload or 18 minutes with 5.5kg of payload.
How can I retract the landing gear on the M600? Is the M600 able to retract the landing gear automatically?
You can control the position of the landing gear when the M600 is in the air with a flick of the switch on your remote controller. There is also a toggle in the DJI GO app that enables the M600 to intelligently retract its landing gear when it’s 1.2m above the take-off point. However, the landing gear will not lower itself. To land, you will need to manually toggle the landing gear using the switch.
Can I use other flight controllers than the A3 with the M600?
The M600 comes with the A3 flight controller seamlessly integrated and there is no need to install other flight controllers.
Does the M600 come with the A3 or the A3 Pro flight controller as standard?
The standard flight controller is the A3. However, you may upgrade to the A3 Pro by adding two additional A3 GNSS and IMU modules. You can also upgrade to D-RTK for greater positioning accuracy.
Can the A3 flight controller be used on other aerial platforms?
The A3 flight controller on M600 has been customized specifically for the M600 and can only be used with the M600. Please do not remove the A3 from M600 and do not install it on other platforms.
Will the flight performance and accuracy be increase if I upgrade to A3 Pro?
The A3 Pro enhances the reliability and stability of M600 by providing redundancy when any of the GNSS or IMU modules is interfered with or otherwise fails. However, only one set of GNSS and IMU modules can be in effect at any time during the flight, so flight accuracy remains the same as with the A3.
How is the M600’s accuracy enhanced by adding the D-RTK module?
Accuracy increases to 1cm +1ppm horizontally and 2cm + 1ppm vertically with D-RTK GNSS.
Can I link third party remote controllers to the Lightbridge 2 on the M600?
The M600 is a fully integrated aerial platform designed for professional filmmaking and industrial applications. The built-in Lightbridge 2 system is only compatible with DJI remote controllers. Please do not use third party remote controllers with the M600.
Does the M600 support dual video input?
Yes. The integrated Lightbridge 2 supports dual video input.
Can the M600 be connected to multiple remote controllers? How many slave controllers can be connected at one time?
The Lightbridge 2 on the M600 supports up to one Master and three Slave devices at the same time.
What propulsion system does the M600 use? Can I use the E2000 Standard instead?
The M600 has a customized E2000 propulsion system built-in and does not support the E2000 Standard.
How do I best prevent propellers from coming loose on the M600?
Screw position indicators on the propellers and adapters enable you to see if a screw has come loose. Check that the marks align before each flight to ensure safety.
Can I swap the motors on the M600 and Agras MG-1?
The motors on Matrice 600 and Agras MG-1 share the same performance specification but have a different exterior design so they are not interchangeable.
Can I use a mix of TB47S and TB48S batteries with the M600?
No, all six batteries installed on the M600 must be of the same model.
What are the differences between the TB47D (for the M100) and the TB47S (for the M600)? Can I use TB47D or TB48D batteries with the M600?
Though the battery capacity and structural design of the TB47D (TB48D) are identical to that of the TB47S (TB48S), the program setting of the ‘D’ series and the ‘S’ series differ. The M600 can only be set up with DJI TB47S/TB48S Intelligent Flight Batteries.
Can I charge the TB47S/TB48S batteries with the Inspire 1 Charging Hub?
Yes, the Charging Hubs for the M600 and Inspire 1 are compatible with all TB47/TB48 batteries.
Do I need to turn on each battery individually in order to turn on the aircraft?
To turn on the aircraft, you only need to turn on one of the six batteries installed on the M600. The other batteries will turn on and synchronize their boot-up sequence. However, if the voltage discrepancy across the batteries exceeds 1.5v, the boot-up sequence will not be synchronized and you will receive an error message in the APP and through the Battery Management System.
Is it true that the aircraft will only take off when all six batteries are installed?
Yes, and we strongly recommend you to fully charge all batteries before flight.
How does the battery redundancy system on the M600 work?
In the case that one of the six batteries fails during flight, the M600 will re-calculate the remaining battery capacity, then hover in its current position or begin auto-landing. When the M600 hovers, you can manually land the M600 and then examine the batteries.
Expansion and Customisation
Which gimbals are supported by the M600?
The M600 supports the Zenmuse Z15 series, Zenmuse X3, Zenmuse X5, Zenmuse X5R, Zenmuse XT and the Ronin-MX.
Does the M600 support DJI’s SDKs?
The M600 is compatible with the Mobile SDK and the Onboard SDK. M600 also supports hardware Expansion.
How do I update the firmware on the M600?
For the M600 aircraft, use the DJI Assistant 2 software to update the firmware. For the remote controller, you can only update the firmware through the DJI GO app.
What can I do when the aircraft is unable to take off and the flight controller LED signals red?
Connect the M600 to the DJI GO app and see the status bar at the top of the display for error messages notifying you of the problem.
The Battery Management Board gives an error message when I turn on the M600. How do I resolve this problem?
First of all, ensure that all batteries are firmly installed, especially the batteries that are not turned on. If all batteries are firmly installed, please check the remaining capacity of all batteries. If the ones that cannot be turned on are low on charge, please recharge the batteries to full.
What is the cause of the problem when the six batteries cannot be turned on simultaneously, making the aircraft unable to take off?
If the voltage discrepancy across the six batteries exceeds 1.5v, the aircraft will not take-off to ensure maximum flight safety. Please charge all six batteries before your flight.
How can I tell if any module in the redundant system has malfunctioned?
The GNSS and IMU modules have built-in LED status indicators. If the indicators are green or blue, the respective module is functioning properly. If the indicator signals red, the module has malfunctioned. Please connect your aircraft to the DJI GO app or Assistant software for further information.
