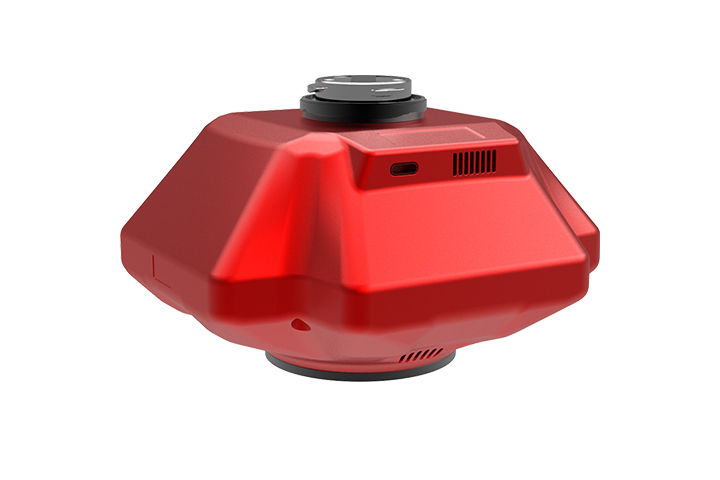

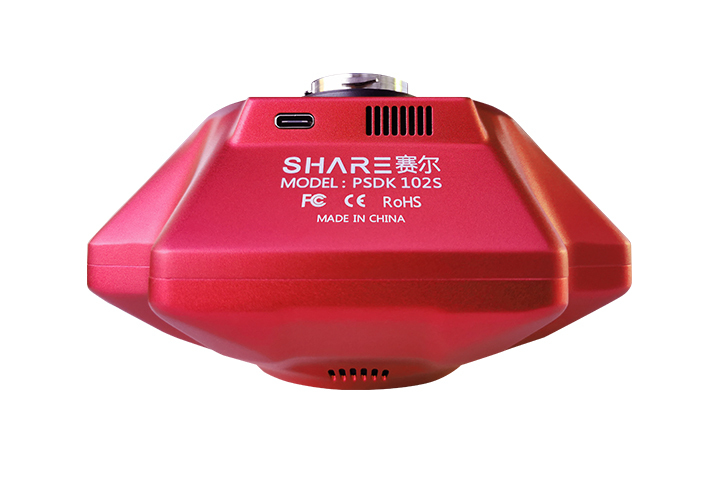

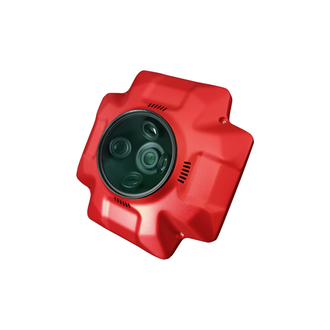

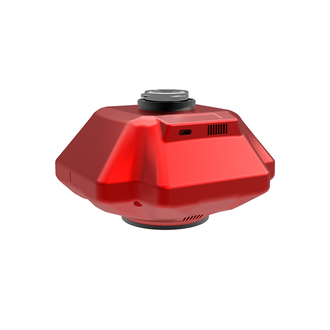

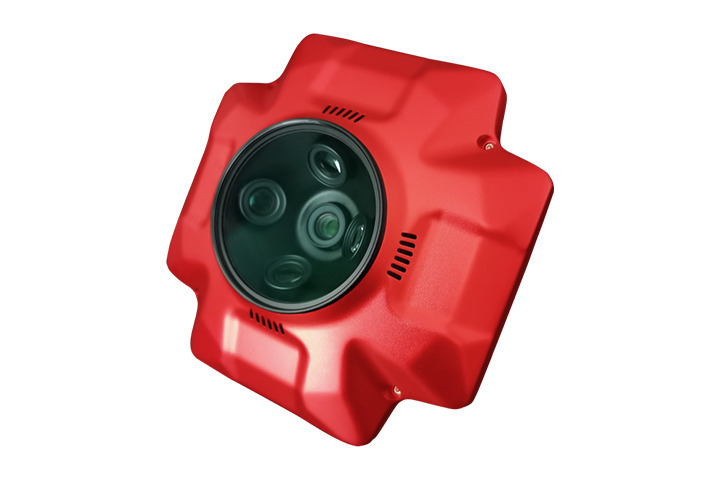

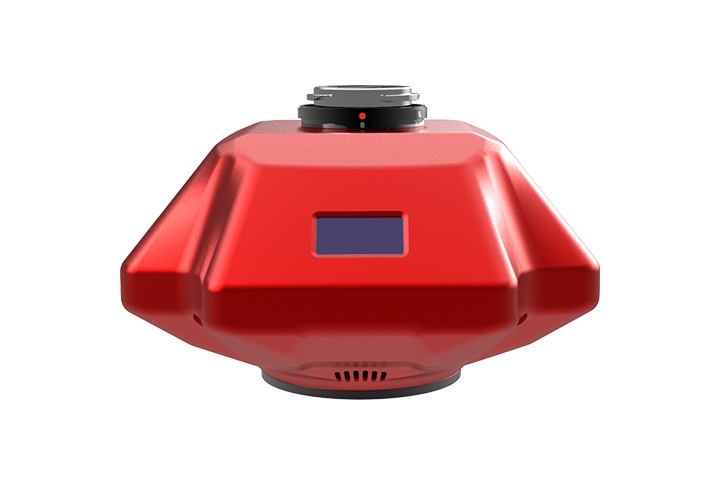

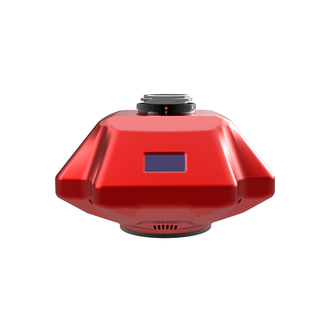

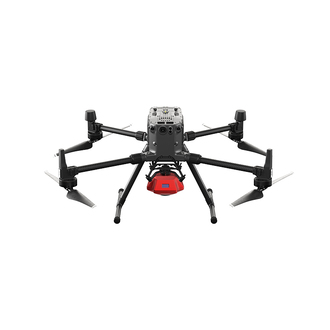

PSDK 102S - 5 Camera Oblique Mapping

Contact for Pricing
SKU: PSDK102S

PSDK 102S five-lens aerial oblique camera, designed by SHARE UAV, is a new generation mapping camera can realize drone surveying and mapping with no GCPs used


In Stock

FREE SHIPPING ON ALL ORDERS OVER $300

All orders placed before 2pm will be delivered the next day on overnight track and trace courier. Larger items will be sent on a two day service to the South Island. Please note rural addresses (RD) can take 1-3 days longer.


PSDK 102S five-lens aerial oblique camera, designed by SHARE UAV, is a new generation mapping camera can realize drone surveying and mapping with no GCPs used. Camera is seamless docking with DJI Matrice 300 RTK through SkyPort. Using CNC designed housing makes PSDK 102S have better heat dissipation, smaller wind resistance coefficient, stronger structure, which is more conducive to aerial survey flight. Besides, PSDK 102S also has intelligent self-test, one-key reset, intelligent heat dissipation, real-time image transmission and other functions.



Features



Lightweight Camera Body

The volume is only 140 x 140 x 80 mm and the weight is as light as 650 g, which effectively reduces the flight weight and improves the flying duration and operation efficiency.

Independent POS Data

The five lenses independently collect POS data, and the POS data is accurate to 1 cm. It is compatible with DJI Terra, which can achieve survey with no GCPs used, greatly improve data accuracy, and the efficiency of internal and external operations.

Easy Mounting

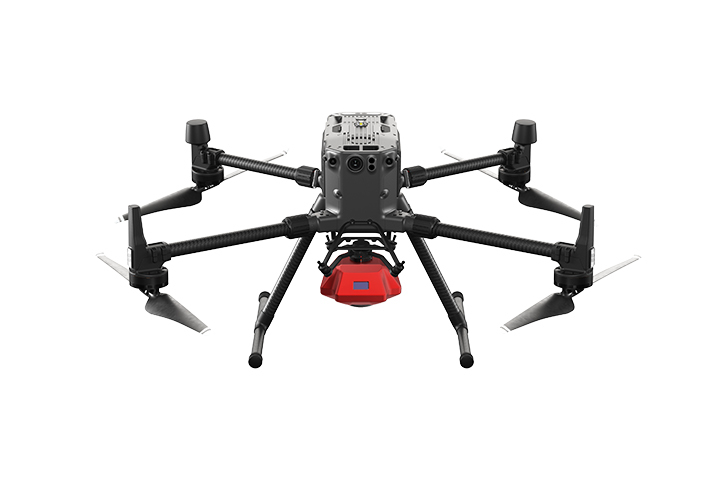

PSDK 102S is mounted to DJI Matrice 300 RTK through SkyPort which is integrated with power, RTK signal connection, data transmission, image transmission.

Simple Operation

PSDK 102S can be easily controlled on DJI Pilot directly.



Applications

Cadastral Surveying

PSDK 102S can realize surevey with no GCPs used, and its independent POS data accurate to 1cm can meet the cadastral surveying and mapping requirements for accuracy.

Topographic Measurement

PSDK 102S has clear imaging and true color reproduction which can provide accurate topographic measurement data and apply it to the ground qualitative exploration, mineral development and river survey and other scenarios.

Planning and Design

In the planning and design of infrastructure construction in smart cities, beautiful rural construction, architecture, water conservancy, transportation, etc., PSDK 102S can provide accurate measurement and mapping data, and generate high-quality 3D models as basic data for later applications.



Dowload the brochure from this link

Product Specifications

General

Size 140 x140 x 80 mm

Weight ≤ 650 g

Camera

QTY of Lens 5 pcs

Focal Length 35 mm

Effective Pixels 24.3MP,total pixels≥120MP

Sensor Size APS-C (23.5mm x 15.6mm)

Lens Angle 45 degree

Pixel Size 6000 x 4000

Exposure Interval ≥0.8 s

Storage 1280 GB

Electrical

Power Supply SkyPort Power On / Off

Auto On / Off

Data Reading USB3.0 Type-C

Working Environment

Operating Temperature -10℃~50℃

Humidity 95%

In the box

PSDK 102S - 5 Camera Oblique x 1
