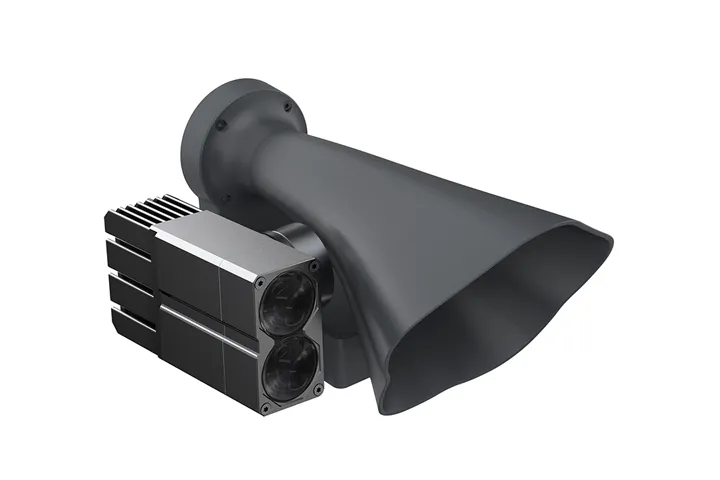

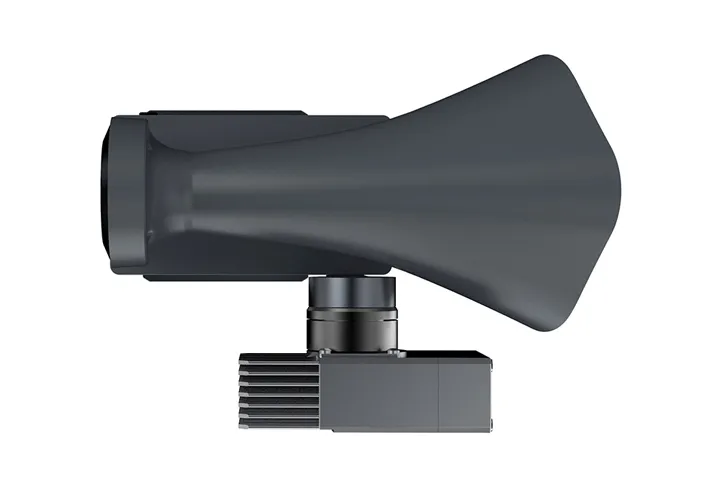

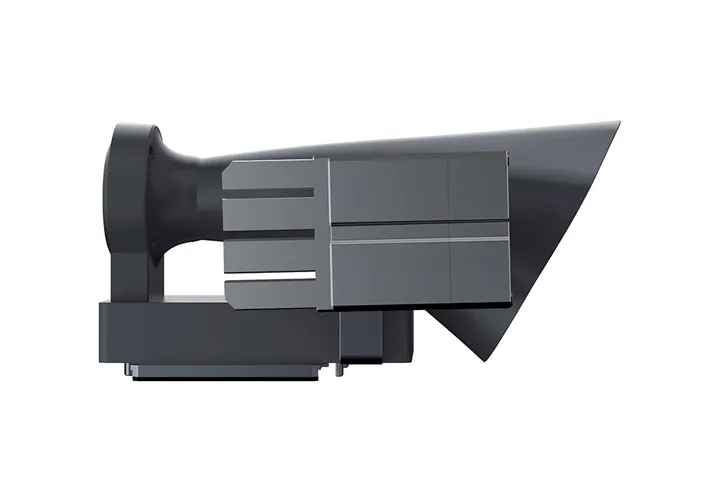

CZI LP12 Searchlight & Speaker System for M30 Series

Features

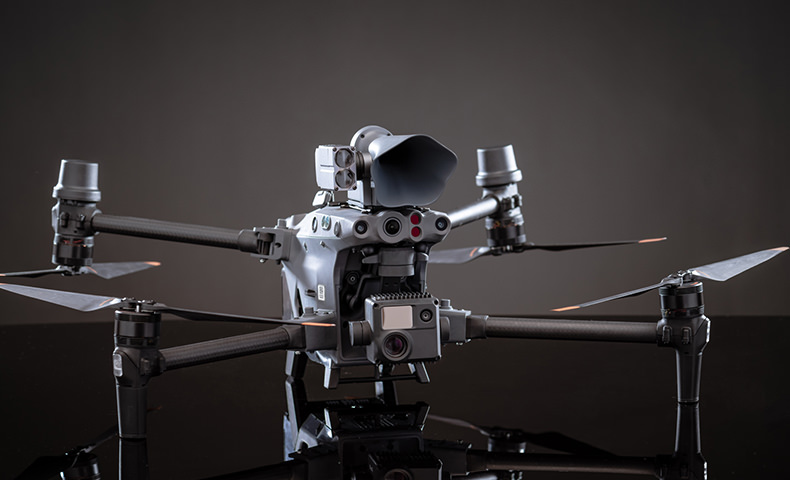

LP12 is a searchlight and speaker integrated payload designed specifically for the DJI Matrice 30 Series. With its streamline design, it pushes the limits of product performance while taking characterised appearance into account, and effectively reduces wind resistance and improves the duration of flight. The LP12 is the most efficient lighting and broadcasting payload product from CZI so far, combining the imaging optics of the Gimbal Light Series, with the LRAD long distance broadcasting technology of the Mega Phone Series, it is also extremely light weight thanks to it's small size. Weighing only 270g, it has an effective illumination distance up to 100m and an effective broadcasting distance of 200m, which meets the operational needs of security patrols and outdoor search and rescue scenarios. The LP12 is integrated with DJI Pilot, allowing quick access to all broadcast and light functions, making it more convenient to operate.

Key Features

Broadcasting and lighting two-in-one design.
Live broadcasting
Light weight, only 270g.
Long duration of flight.
Excellent sound and light effects.
LRAD Sound Technology & Optical Imaging.
120dB Ultra-high sound pressure.
Effective illumination distance up to 100m.
Effective sound distance up to 200m.
Quick mount and dismount for easy use.
OSDK Perfectly adapted to DJI M30 Series.

Product Specifications

Electrical interface: DJI OSDK
Weight: 270g(without quick-mount fixture) 283g(with quick-mount fixture)
Dimensions: L162*W111*H75mm
Searchlight power: Regular mode:30w Ultra bright mode&Flashing mode:40w
Speaker power: 15W
Power supply voltage: 24V
Luminous flux: 2000lm±3%
Searchlight FOV: 13°
Spot diameter: 34m（distance：150m） 29.6m（distance：130m） 22.8m（distance：100m） 11.4m（distance：50m）
Illuminated area: 102㎡（distance：50m） 407㎡（distance：100m） 688㎡（distance：130m） 917㎡（distance：150m）
Central illuminance: 20Lux（ distance：50m） 4.5Lux（ distance：100m） 2.5Lux（ distance：130m） 1.7Lux（ distance：150m）
Gimbal movement range: Pitch -120°~+45°
Maximum sound pressure: 120dB
Effective broadcasting: 200m@74db 350m@69db
Broadcasting method: Upload the recording files Play audio file Text To Speech (supports multi-language) Background sound. Live broadcasting.
Audio formats: mp3/wav/m4a/flac/aac
App support: DJI Pilot2
Operating temperature: -15°C~+40°C

In the box

CZI LP12 Searchlight & Speaker System x 1
