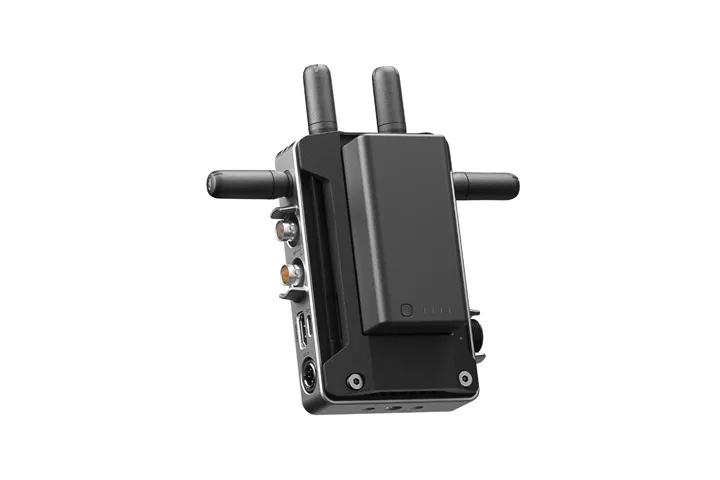

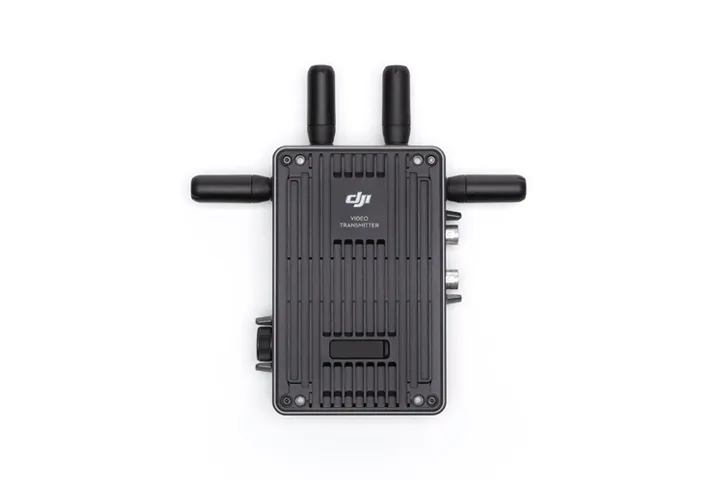

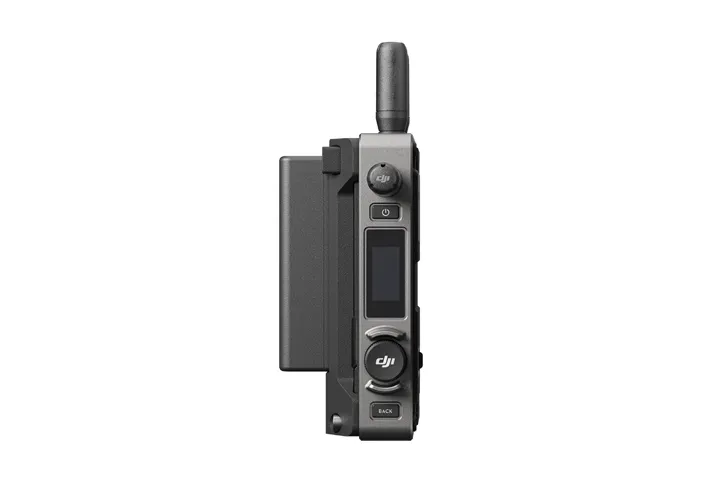

DJI Video Transmitter

Note: The DJI Video Transmitter must be used with the DJI High-Bright Remote Monitor.

Features

With the latest O3 Pro video transmission technology, the DJI Video Transmitter offers a stunning 20,000-foot [2] ground transmission range. In addition to 2.4 GHz and 5.8 GHz, it supports the DFS frequency band and an AES 256-bit encryption algorithm that can output a 1080p/60fps FHD feed to multiple remote monitors simultaneously with significantly enhanced security, stability, and anti-interference capability.

Tips

1. Requires the DJI High-Bright Remote Monitor for use.
2. Measured in Control mode with FCC compliance in a standard, interference-free environment.

Compatibility

DJI High-Bright Remote Monitor
DJI Ronin 2
DJI RS 3 Pro

Product Specifications

Max Transmission Distance: Approx. 20,000 ft (approx. 6 km for FCC, approx. 4 km for CE/SRRC/MIC)
Max Resolution and Frame Rate: 1920×1080@60fps
Operating Frequency:
Non-DFS Frequency Band
2.400-2.484 GHz
5.150-5.250 GHz
5.725-5.850 GHz
DFS Frequency Band
5.250-5.350 GHz
5.470-5.600 GHz
5.650-5.725 GHz
Max Bandwidth: 40 MHz

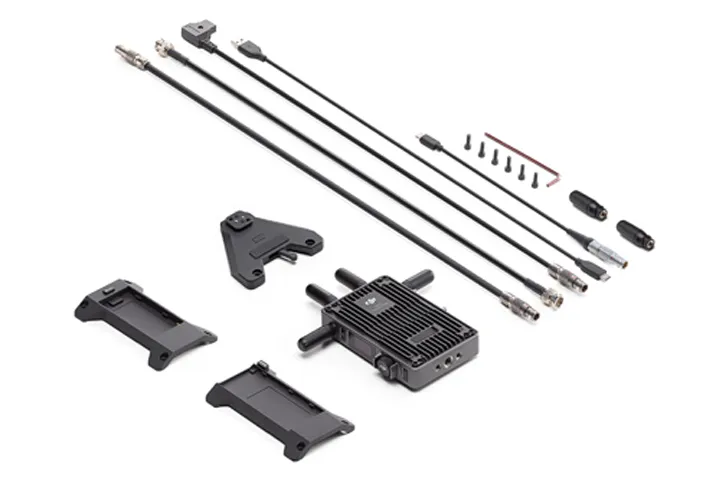

In the box

Video Transmitter × 1
Ronin Video Transmission Antenna × 2
WB37 Battery Adapter (TX) × 1
NP-F Battery Adapter (TX) × 1
USB-C Cable ×1
SDI Cable × 1
DJI DC Power Cable × 1
DC to P-TAP Power Cable × 1
USB-C to LEMO Power Cable × 1
RS Gimbal Mounting Plate × 1
Installation Toolkit × 1
