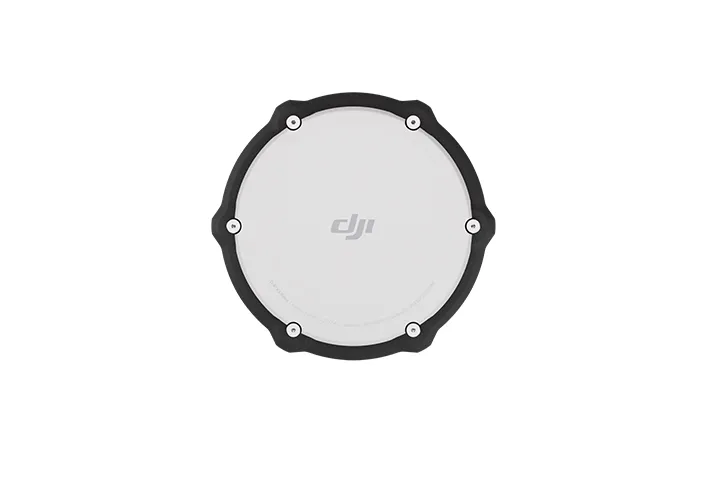

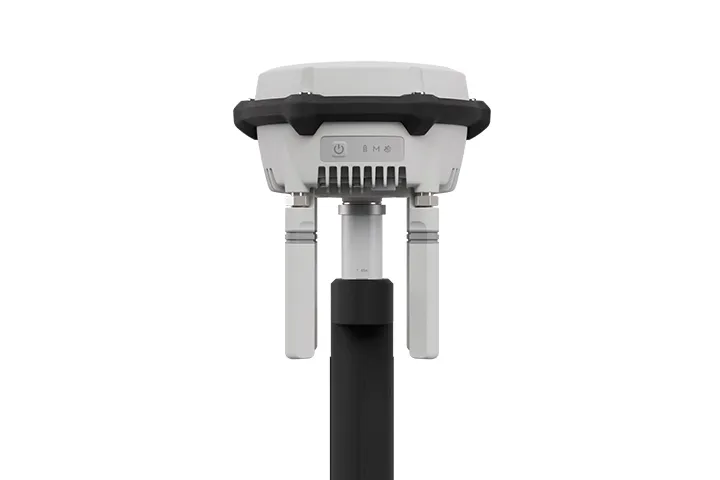

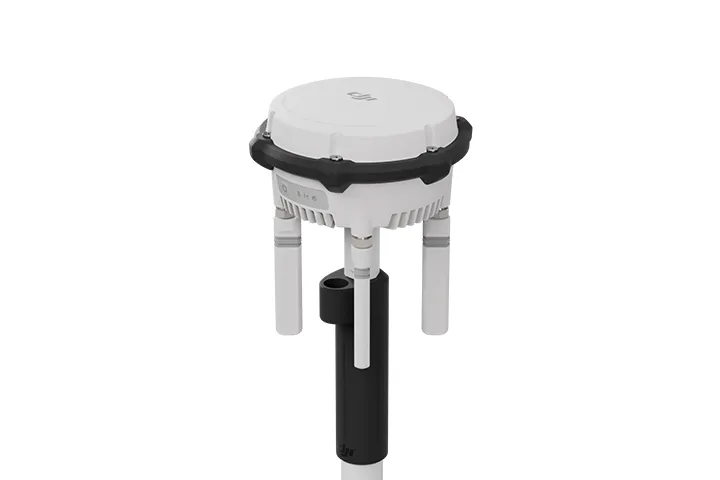

DJI D-RTK 3 Agriculture Edition

Features

The DJI D-RTK 3 Agriculture Edition is the ideal high-precision GNSS base station for DJI Agras drone users who need centimeter-level accuracy without the extra features of the Enterprise edition. Purpose-built for agricultural workflows, it delivers fast, stable RTK corrections in the field.

Product Specifications

Supports satellite systems
GPS: L1/L2/L5
BeiDou: B1I/B2I/B3I/B1C/B2A/B2B
Galileo: E1/E5a/E5b/E6
GLONASS: G1/G2
QZSS: L1CA/L2C/L5
L-BAND
Dimensions
345 mm × 244 mm × 300 mm
Weight
3.77 kg (including packaging)
Power consumption
7 W
Battery capacity
6500 mAh
Operating Time
7 hours
Operating Frequency
Broadcast Mode: O4: 2.4G/5.8G
Relay Mode: Not Supported
Effective signal range
FCC: 15 km
SRRC: 12 km
CE/JP: 8 km
Charging Time
2.5 hours (30W recharge)
Ingress Protection Rating
IP67
Positioning Accuracy
PPP Satellite-Based Service Accuracy:
Convergence Time: 20 mins
Horizontal: 30 cm (RMS)
Elevation: 40 cm (RMS)
Network RTK Calibration:
Horizontal: 0.8 cm + 1 ppm (RMS)
Vertical: 1.5 cm + 1 ppm (RMS)
1 ppm: Accuracy decreases by 1 mm for every 1 km increase in distance between the aircraft and the base station. For example, if the aircraft is 1 km away from the base station, the accuracy is 1.1 cm

In the box

DJI D-RTK 3 Agriculture Edition x 1
