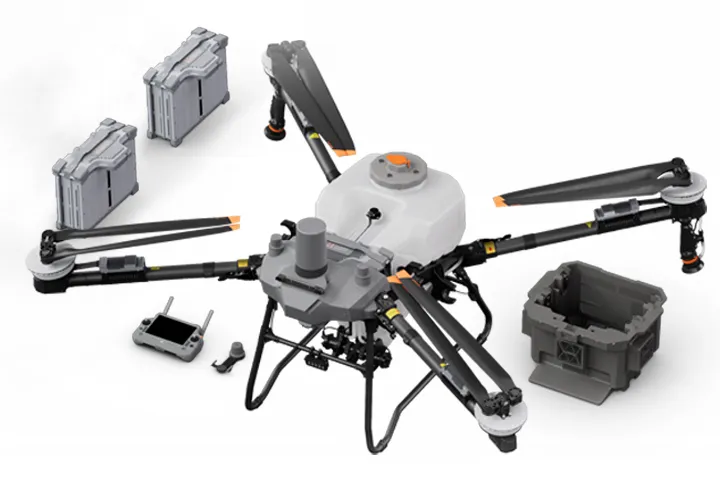

DJI Agras T70P Three Battery Combo (No Charger)

DJI Agras T70P Three Battery Combo (No Charger)

Contact for Pricing

New Release

SKU: T70P_COMBO

The DJI Agras T70P agricultural drone is newly upgraded to support spraying, spreading, and lifting in various operational scenarios, with a maximum payload capacity of 70 kg

Have a Question?

Free Shipping on all orders over $350
Order before 2.00pm for same day dispatch
Click & collect from Auckland & Christchurch stores
Local warranty, support and repairs

Efficiency Expert.

The DJI Agras T70P agricultural drone is newly upgraded to support spraying, spreading, and lifting in various operational scenarios, with a maximum payload capacity of 70 kg^[1]. It delivers enhanced efficiency while featuring Safety System 3.0^[2] and advanced algorithms for comprehensive, round-the-clock^[3] protection.

Highlights:
• 70 L Spraying Tank^[1], 40 L/min Flow Rate
• 20 m/s Max Operation Speed^[6]
• 100 L Spreading Tank^[1], 400 kg/min Flow Rate^[4]
• 65 kg Lifting^[5]
• Obstacle Avoidance, AR Enhanced Display
• Ultra-Fast Charging

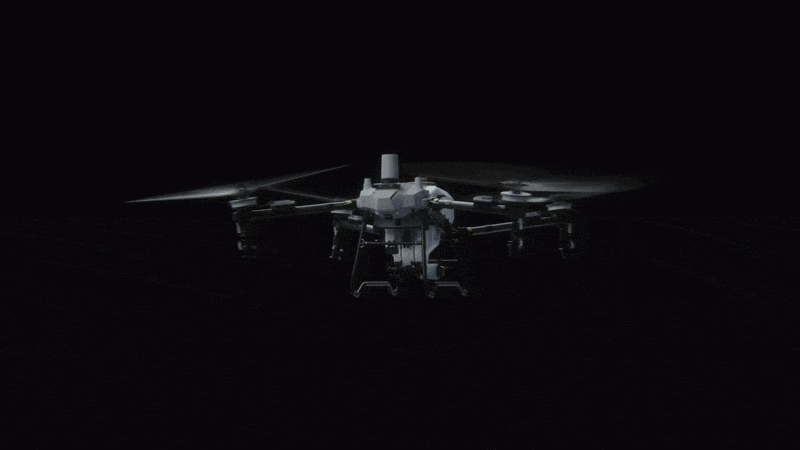

Spraying System

Efficient Operation, Outstanding Performance.

The T70P comes equipped with a 70 L tank and dual atomization centrifugal sprinklers, offering high flow rates for faster flight speeds and greater operational efficiency in field applications. Orchard users can choose an optional mist sprinkler set, which upgrades both flow rate and atomization effects, ensuring thorough penetration even through dense canopies and tall plants.

Field Operations
• 20% Increase in Operation Efficiency^[7]
• 30 L/min High Flow Rate
• 20 m/s Maximum Flight Speed^[6]
• 4 - 11 m Effective Spray Width^[9]

Orchard Operations
• 40 L/min Four Sprinklers (Optional)
• 65% Increase in Penetration and Leaf Underside Coverage^[7]

Water-Cooled Mist Sprinklers (Optional)
Fine droplets as small as 50 μm^[23] penetrate canopies effectively, ensuring thorough leaf coverage. The newly designed liquid flow path rapidly dissipates heat generated by dual centrifugal motors, enhancing durability and extending the system's lifespan.

Dual Atomization Centrifugal Sprinklers
New flow path design, dual sprinklers support a maximum flow rate of 30 L/min, Particle size range of 50-500 μm^[8], suitable for most operational scenarios.

Magnetic Drive Impeller Pumps
Corrosion-resistant, stable, and reliable, an optimized impeller structure and increased chamber volume meet the high flow demands of orchard scenarios.

Solenoid Valves
Precision starting and stopping eliminates leaking.

Dual-Channel Electromagnetic Flow Meter
Real-time precise flow detection and dynamic control ensures high-precision operations. It avoids direct contact with the liquid, preventing corrosion and enhancing durability.

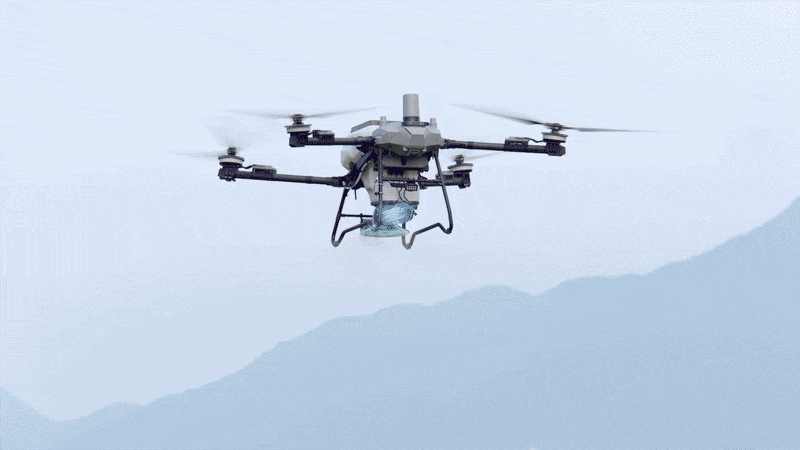

Spreading System

Outstanding Efficiency and Performance

The T70P features a new spreading system with a larger payload and capacity, delivering a 270% increase in spreading flow rate^[7] for significantly improved efficiency. Equipped with a new screw feeder, it supports a wide range of granulars and excels in diverse scenarios, including fields, orchards, and aquaculture.

• 100 L (70 kg) Large Capacity Spreading Tank^[10]
• 400 kg/min High Flow Rate^[4]
• 10 m Effective Spreading Width^[11]
• 0.5-10 mm Granule Size Range^[12]

Brand-New Screw Feeder
Spreading accuracy doubled, flow rate increased by 270%^[7], and granulars applicability further enhanced.

High-Precision Weighing Sensor
Provides real-time, accurate granulars quantity display for precise usage and refilling, effectively minimizing waste. It also supports automatic flow calibration and cloud-based storage of operation templates, ensuring precise and convenient spreading.

Centrifugal Spreader Disc
Ensures uniform spreading across the entire flow range with outstanding results. Features a stainless steel cap for durability and strength.

Large Loading Gate
Allows for easy and convenient bulk loading.

Four Feeder Types for Different Granulars
Supports four interchangeable feeder sizes for precise flow and greater adaptability across seeding, fertilizing, and feeding^[12].

Extra-Large Feeder: Suitable for granulars such as fertilizers, wheat seeds, granular fungicides, feed, etc.
Large Feeder (Optional): Suitable for granulars such as rice seeds, cover crop seeds, etc.
Medium Feeder: Suitable for granulars such as rice seeds.
Medium-Small Feeder (Optional): Suitable for granulars such as aquatic feed and other high-volume, small-particle materials.
Small Feeder (Optional): Suitable for granulars such as rapeseed, granular herbicides, grass seeds, granular insecticides, etc.

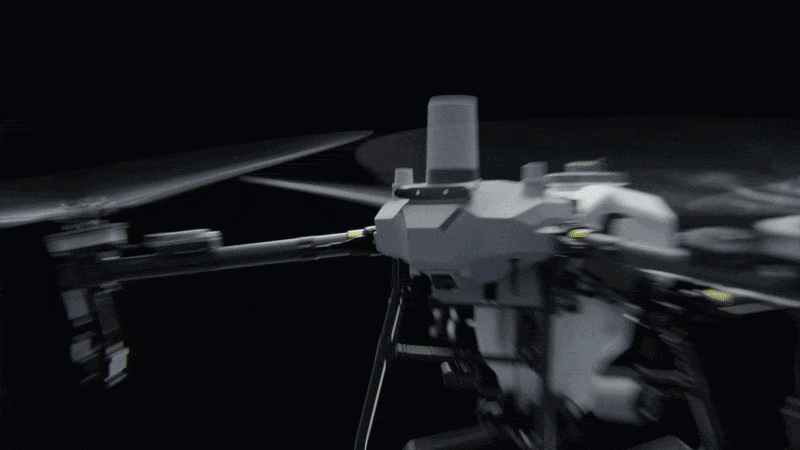

Safety System^[2]

Obstacle Avoidance, AR Enhanced Display

The T70P is equipped with intelligent obstacle avoidance and AR-enhanced display. With Safety System 3.0, its radar and vision systems work together with upgraded algorithms to deliver comprehensive obstacle awareness, enabling smooth navigation and effortless maneuvering through fields.

Millimeter-Wave Radar: The front radar performs 5,000 vertical airspace scans per second combined with 360° horizontal mechanical rotation scanning, along with a rear radar, offering a more comprehensive detection range.
Tri-Vision System^[13]: Two black-and-white fisheye cameras and an FPV camera work in tandem with radar through visual fusion algorithms to enhance Terrain Following and obstacle avoidance capabilities.
Night Navigation Light: In addition to the existing low beam lights, new front-facing high beams and downward supplemental lighting have been added. The downward lighting automatically activates during landing, ensuring safer nighttime operations.
Night Vision Color FPV Camera: Utilizing virtual gimbal technology, the FPV camera's pitch angle can be freely adjusted. It supports night vision mode, and when combined with night navigation lights, obstacles remain clearly visible even in the dark^[14].

Obstacle Avoidance Capability
Supports 360° horizontal and upward obstacle avoidance, along with steep slope Terrain Following without aerial mapping. The detection rate for diagonal cables and power lines has been improved^[2], ensuring all field obstacles are clearly detected.

Intelligent Obstacle Bypassing
The newly upgraded Safety System 3.0 incorporates intelligent detection algorithms, enabling obstacle detection and smarter route selection, significantly improving obstacle clearance rates^[7]. Additionally, it features an advanced terrain mapping algorithm that accurately extracts terrain features for high-precision Terrain Following operations in agricultural settings.

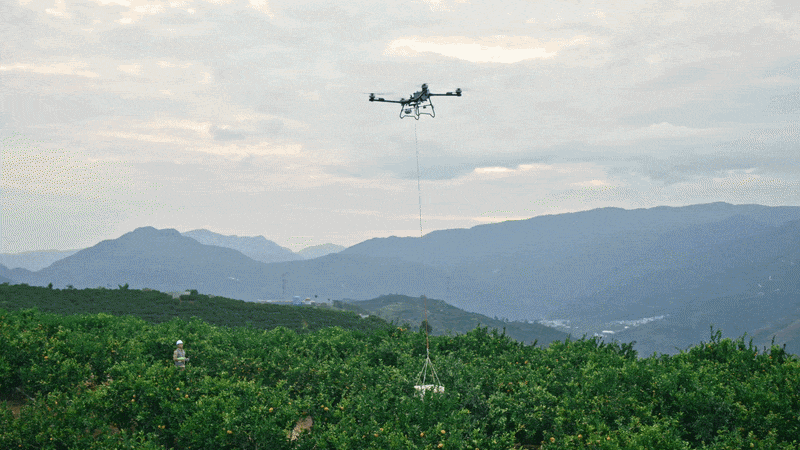

Lift System

Your Transport Assistant

The T70P transforms into a transport solution with a lifting capacity of 65 kg^[5] it carries more and travels further. Features like Auto Balance Control, weight detection, and automatic navigation to loading and unloading points make it adaptable to various agricultural transport scenarios.

Automatic Balance Control: Utilizing a triaxial force sensor, the drone can automatically adjust its posture during flight to eliminate swinging, ensuring safer operations.
Real-Time Weighing: A triaxial force sensor provides real-time weight monitoring to prevent overloading and ensure operational safety.
Marking Loading and Unloading Points by Mobile: Operators can use their mobile phones, in conjunction with the RTK module, to add load and unload points, which are then synced to the remote controller. Pilots can quickly locate destinations using AR projection on the controller.
Automatic Flight: Freely select loading and unloading points and reach them with a single click.

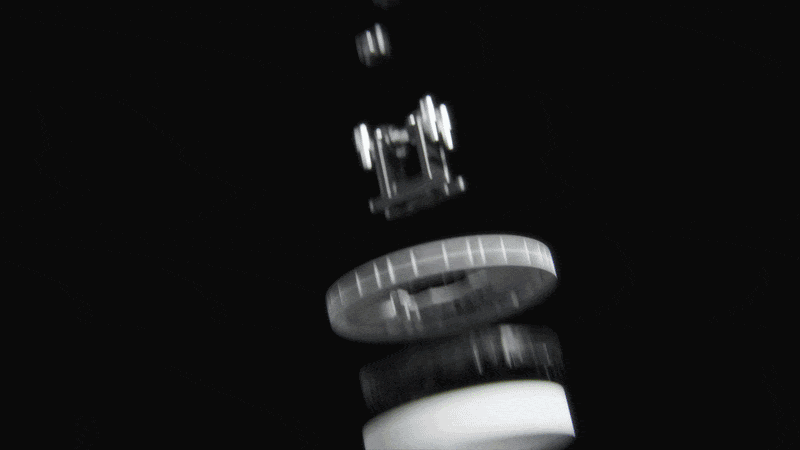

Propulsion System

Powerful Performance, Higher Efficiency

The T70P, through further optimization of the power system, effectively reduces energy consumption while maintaining the same operational area and effectiveness.

• 20 m/s Max Speed^[6]
• 18% Enhanced Efficiency^[7]
• 30% Lower Power, Higher Load^[15]

62-Inch Carbon Fiber Propellers
Carbon fiber propellers offer greater rigidity and lighter weight, resisting deformation even at high temperatures. With optimized airfoil and increased diameter, efficiency is improved by 15%^[7].

Motor Optimization
With enhancements in motor electromagnetics and craftsmanship, efficiency is improved by 3%^[7].

Swing Propellers Clamp
Reduces body vibration by 40%^[7], resulting in more stable flight and lower power consumption.

DJI RC Plus

Easy Control for New and Experienced Pilots

DJI RC Plus features a 7-inch high-brightness screen that is 16%^[7] brighter for clear visibility under sunlight. Both internal and external battery life are extended by 30 minutes^[7]. New backlit buttons enhance nighttime operation, and customizable physical buttons offer flexible control.

Get Started With Ease
Simply complete the field planning, and operate with one click, without the need for manual intervention.

Step 1: Easy Field Planning: Choose from multiple planning methods. Once the field is planned, the flight path is automatically generated.
Step 2: One-Click Fully Automatic Operation: Easily call up parameter templates with a single click for convenience and speed.
Step 3: Smart Return to Home: Automatically returns home when out of pesticide or low on battery.

Elevate Precision and Efficiency
Experience smooth and intuitive manual operation paired with a range of powerful, efficient assistive features. Tackle even the most challenging terrains with confidence and ease.

Multi Field Operations: Efficiently plan multiple adjacent plots in a single go. Enabling continuous operations without interruptions (in fields or orchards).
Practical Features for Manual Mode: Simplify operations on complex small plots with practical tools like one-click plot saving and one-click return to breakpoints, ensuring efficient and stress-free workflows.
Free Flight Paths: Adapt effortlessly to diverse scenarios, including mixed crops, intercropping, and paddy fields. Achieve greater operational flexibility for more efficient workflows.

Integrated Operation and Mapping^[16]: Survey up to 17 hectares of large fields or 8 hectares of orchards per flight^[17] with rapid reconstruction upon landing^[18].

Rigorous Testing Standards
The T70P has undergone 700 hours of reliability testing, including real-flight aging, accelerated component fatigue, and extreme temperature evaluations. These ensure stability and reliability, delivering unmatched performance under various conditions.

Transmission System

Seamless Signal Stability

The upgraded O4 video transmission algorithm ensures constant signal availability. O4 Relay is designed to excel in challenging signal conditions, delivering seamless and efficient operations.

O4 Transmission: An upgraded transmission algorithm enhances the range while maintaining smooth and stable visuals for consistent performance.
D-RTK 3 AG (Optional): Enabling plug-and-play centimeter-level positioning without the need to configure coordinates. It ensures precision across the entire operation.
RTK High-Precision Positioning Module: Use in conjunction with the remote controller and smartphone for precise location marking.
O4 Relay (Optional): A Relay can ensure smooth operations in scenarios that have signal interference.

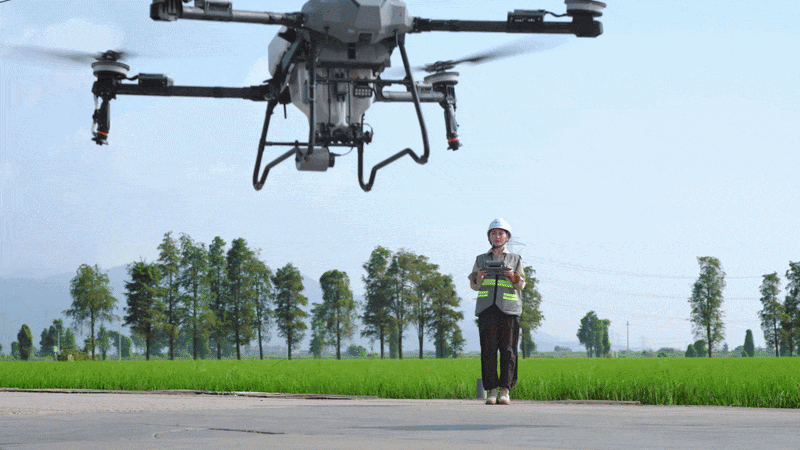

Power System

Ultra-Fast Charging, Energy-Efficient Design

The T70P achieves significant power savings thanks to enhanced energy efficiency, effectively reducing operational costs. It supports two smart flight batteries, catering to varying operational needs.

DB1580 Intelligent Flight Battery: 30 Ah, 1500 charge cycles under warranty^[19], 500 A high-power connector, Weight: 11.7 kg, Ergonomic handle.
DB2160 Intelligent Flight Battery: 41 Ah, 1500 charge cycles under warranty^[19], 500 A high-power connector, Weight: 14.7 kg, Ergonomic handle.
C10000 Intelligent Power Supply: Single-phase power input, 9000 W fast charging^[20][22], Adaptive power protection, 1.5 m charging cable.
C12000 Intelligent Power Supply: Three-phase power input, 12000 W fast charging^[20], Adaptive power protection, 1.8 m charging cable.
D14000iE Multifunctional Inverter Generator: 11500 W fast charging^[21], 1500 W AC output, 1.8 m charging cable.

Notes

*The product is only available in certain countries. The appearance of the product is subject to the actual product. For details, please contact your local dealer.

[1] Measured at sea level, DJI Agriculture App intelligently recommends the appropriate loading weight based on the current status of the aircraft, environmental conditions, and operational tasks. Users are advised not to exceed the recommended maximum weight of the loaded granulars, may impact flight safety.

[2] The effective sensing range and its ability to avoid and bypass obstacles will vary depending on the ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles. Downward sensing is used to assist in Terrain Following flight and altitude stabilization, while other directions assist with obstacle avoidance. Any collision between the bottom of the aircraft and obstacles shall be the customer's responsibility. In scenarios without linear obstacles, if a collision occurs at speeds up to 13.8 m/s resulting in aircraft damage, responsibility can be determined through log analysis, and the aircraft may be eligible for free warranty if non-human causes are identified. If there are linear obstacles like wires or guy wires on utility poles, please mark them as obstacles; otherwise, failure to bypass them will be the customer's responsibility. Note 1: Downward sensing assists in Terrain Following flight. If the bottom collides with obstacles, it is considered user responsibility. Note 2: Due to limitations in safety system performance, the aircraft cannot automatically avoid moving objects, and accidents of this nature will be attributed to user responsibility.

[3] When the vision is dirty or during nighttime operations, the aircraft will use pure radar to complete terrain-following bypass operations. The effectiveness of terrain-following bypass will be reduced, so please fly cautiously. To ensure the best operational results, please clean the vision promptly when it is dirty.

[4] Measured with compound fertilizer. The maximum flow rate may vary due to differences in granule size, density, and surface smoothness of different fertilizers.

[5] A weight of 65 kg is measured below the triaxial force sensor (including the weight of the sling, and hook). Data was measured at sea level. The DJI Agras app will recommend the payload weight according to the current status and surroundings of the aircraft. When adding materials, the maximum weight should not exceed the recommended value, otherwise flight safety may be compromised. Users must comply with local regulations during operation.

[6] The actual operation speed of the drone is related to the terrain slope; the steeper the slope, the lower the operation speed. The maximum operating speed varies by country and operational mode, and is subject to local regulations and the actual firmware version.

[7] Compared to the Agras T50 drone and its supporting equipment. Test results may vary based on different testing conditions.

[8] The droplet diameter is measured by a laser particle size analyzer, with a 50-micron diameter using the DV50 standard.

[9] The effective spray width of the spraying system depends on the actual working scenario.

[10] Different granulars have different densities, the maximum load cannot exceed 70 kg.

[11] Measured at an operating height of 3 meters with a spinning disc speed of 1,100 r/min and a uniformity requirement of CV < 30%. Higher disc speeds and flight altitudes increase the spreading width.

[12] Suitable for granulars ranging from 0.5 to 10 mm in size. Clumps, straw, woven bags, and impurities, as well as humidity, density, hardness, and shape, can affect spreading adaptability and precision.

[13] The effective sensing range and its ability to avoid and bypass obstacles will vary depending on the ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles.

[14] Under good conditions, the stable observation distance for a white wire with an 11 mm diameter is 19 m, and for a utility pole, it is 25 m. The actual observation distance is affected by conditions such as lens contamination, insects, droplets, and fertilizers floating in front of the lens. During night flights, users should mark obstacles or reduce flight speed based on the actual visible distance to ensure flight safety.

[15] At sea level, normal temperature, and with more than 30% battery power, stable and safe flight with large load is possible. When in use, ensure sufficient safety margin based on local altitude, temperature, battery cycle life, and task distance.

[16] Mapping operation needs to work with RTK.

[17] The mapping area refers to the area enclosed by the flight path. Single-flight mapping area is affected by firmware version, starting charge level, mapping type, altitude, wind conditions, field shape, slope, etc. The mapping must be conducted with no payload. Mapping operation needs to work with RTK.

[18] The speed of reconstruction upon landing is affected by environmental signal interference, and the actual experience in the task area should be used as a reference.

[19] Batteries are covered by warranty for up to 1,500 charging cycles or 12 months, whichever ends first.

[20] Power output may vary due to local grid factors such as distance, wire material, and diameter.

[21] The output power of the charging station may be affected by altitude and fuel quality.

[22] When using the C10000 Intelligent Power Supply to charge DB1580 and DB2160 intelligent flight batteries, it requires an adapter cable.

[23] Measured by laser particle size analyzer, a 50-micron diameter using the DV75 standard.

[24] Different granulars have different densities, the maximum load cannot exceed 100 kilograms.

[25] A weight of 100 kg is measured below the triaxial force sensor (including the weight of the sling, and hook). Data was measured at sea level. The DJI Agras app will recommend the payload weight according to the current status and surroundings of the aircraft. When adding materials, the maximum weight should not exceed the recommended value, otherwise flight safety may be compromised. Users must comply with local regulations during operation.

[26] Different granulars have different densities, the maximum load cannot exceed 25 kg.

Product Specifications

Aircraft

Weight: Equipped with DB1580 Intelligent Flight Battery: 52 kg (including battery)
Equipped with DB2160 Intelligent Flight Battery: 56 kg (including battery)
Max Takeoff Weight: Equipped with DB1580 Intelligent Flight Battery:
Max takeoff weight for spraying (standard with 2 nozzles): 102 kg
Max takeoff weight for spraying (optional with 4 nozzles): 105 kg
Max takeoff weight for spreading: 126 kg
Max takeoff weight for lifting: 115 kg
Equipped with DB2160 Intelligent Flight Battery:
Max takeoff weight for spraying (standard with 2 nozzles): 126 kg
Max takeoff weight for spraying (optional 4 nozzles): 130 kg
Max takeoff weight for spreading: 130 kg
Max takeoff weight for lifting: 118.5 kg

^{Measured at sea level, the DJI Agriculture App will intelligently recommend the loading weight based on the current aircraft status, environmental conditions, and operational tasks. Users should not exceed the recommended maximum loading weight, as it may affect flight safety.}
Max Diagonal Wheelbase: 2440 mm
Dimensions: 3200 mm × 3520 mm × 960 mm (arms and propellers unfolded)
1820 mm × 2100 mm × 960 mm (arms unfolded and propellers folded)
1160 mm × 900 mm × 960 mm (arms and propellers folded)
Hovering Accuracy Range (with strong GNSS signal): RTK Enabled:
±10 cm (horizontal), ±10 cm (vertical)
RTK not enabled:
Horizontal ± 0.6 m, vertical ± 0.3 m
Max Configurable Flight Radius: 2 km
Operating Temperature: 0 °C to 40 °C
Max Wind Resistance: <6 m/s

Propulsion System - Motors

Stator Size: 155 × 22 mm
KV: 65 rpm/V

Propulsion System - Propellers

Material: Carbon Fiber Composite
Dimensions: 62 inches
Quantity: 4

Spraying System - Spray Tank

Material: HDPE
Volume: 70 L
Operating Payload: 70 kg

Spraying System - Sprinklers

Model: LX07550SX (Standard Nozzle) / LX09550SX (Optional Mist Nozzle)
Quantity: 2 (Standard) / 4 (Optional)
Nozzle Distance: 1874 mm (Rear Nozzles)
Droplet Size: 50 - 500 μm
Effective Spray Width: 4 - 11 m

^{The effective spray width of the spraying system depends on the actual working scene.}

Spraying System - Delivery Pumps

Type: Impeller Pump (Magnetic Drive)
Quantity: 2
Max Flow Rate: 30 L/min (Standard 2 Sprays)
40 L/min (Optional 4 Sprays)

Spreading System 4.0

Compatible Material Diameter: Standard configuration:
Extra-large auger: 0.5 mm - 10 mm granules (fertilizer, wheat, feed, etc.)
Medium auger: 4 mm - 6 mm granules (rice)
Optional:
Large auger: 4 mm - 10 mm granules (rice, fertilizer)
Small auger: 0.5 mm - 4 mm granules (rapeseed, granular herbicides, granular insecticides)
Spreading Tank Volume: 100 L
Spreader Structure Type: Centrifugal Disc
Discharge Structure Type: Feeder Feeding
Max Discharge Rate: 400 kg/min (compound fertilizer)
Max Load Inside the Spreading Operation Box: 70 kg
Effective Spreading Width: 3 - 10 m

^{Working height is 3 m, disc rotation speed is 1100 rpm, uniformity requirement (CV<30%) measured broadcast width is 10 m. The faster the disc rotation speed, the higher the flight altitude, the larger the broadcast width.}

Lifting System

Load Capacity: 65 kg

^{Includes the weight of ropes and hooks. Measured at sea level, the DJI Agriculture App will intelligently recommend the loading weight based on the current state of the aircraft, environmental conditions, and operational tasks. The maximum weight of the loaded material should not exceed the recommended value, as it may affect flight safety.}
Lifting Cable Length: 10 m (standard configuration)
Recommended Cable Length: 10 - 15 m
Operating Temperature: 0 °C to 40 °C

Safety System 3.0

Millimeter Wave Radar EIRP: < 20 dBm (NCC / MIC / KC / CE / FCC)
Operating Temperature: 0 °C to 40 °C
Operating Environment: Adequate light and discernible surroundings
Field of View (FOV): Front millimeter wave radar: Horizontal 360°, Vertical ± 45°, Up ± 45° (cone)
Rear millimeter wave radar: Vertical 360°, Horizontal ± 45°
Tri-eye Visionary Intelligence: Horizontal 90°, Vertical 180°
Range: ≤ 60 m
Effective Safe Obstacle Avoidance Speed: ≤ 13.8 m/s

^{The effective working range of sensing distance, obstacle avoidance, and bypassing capabilities may vary due to different environmental lighting, rain, fog, and the material, location, and shape of the subject object. The downward sensing is used to assist in terrain-following altitude flight, while sensing in other directions is used for obstacle avoidance. Except for scenes without linear obstacles, if a collision occurs at speeds up to 13.8 m/s resulting in aircraft damage, responsibility can be determined through log analysis, and the aircraft may be eligible for free warranty if non-human causes are identified. If there are linear obstacles like wires or guy wires on power poles, please mark them as obstacles; otherwise, failure to bypass them will be the customer's responsibility.

Note: 1. The downward perception is used to assist terrain-following altitude flight. If a collision with an obstacle occurs below, it is considered the customer's responsibility. 2. Due to the performance limitations of the safety system, the aircraft cannot actively avoid moving objects. Accidents in such scenes are considered the customer's responsibility.}
Effective Obstacle Avoidance Height: ≥ 1.5 m
Safe Distance: 2.5m (Distance between the drone and obstacle after braking and stable hovering)

Remote Controller

Model: TKPL 2
Screen: 7-inch LCD touchscreen; resolution: 1920 × 1200; brightness: 1400 cd/m²
Storage Temperature Range: Less than one month: -30° to 45° C (-22° to 113° F)
One to three months: -30° to 35° C (-22° to 95° F)
Three months to one year: -30° to 30° C (-22° to 86° F)
Charging Temperature: 5° to 40° C (41° to 104° F)
Internal Battery Runtime: 3.8 hours
External Battery Runtime: 3.2 hours
Charging Type: Use a USB-C fast charger with a maximum power of 65 W (maximum voltage 20 V), and it is recommended to use the DJI Portable Charger.
Charging Time: 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)

DB1580 Intelligent Flight Battery

Weight: 11.7 ± 0.3 kg

^{Measured at sea level, the DJI Agriculture App will intelligently recommend the loading weight based on the current aircraft status, environmental conditions, and operational tasks. Users should not exceed the recommended maximum loading weight, as it may affect flight safety.}
Capacity: 30000 mAh
Nominal Voltage: 52 V

DB2160 Intelligent Flight Battery

Weight: 14.7 ± 0.3 kg

^{Measured at sea level, the DJI Agriculture App will intelligently recommend the loading weight based on the current aircraft status, environmental conditions, and operational tasks. Users should not exceed the recommended maximum loading weight, as it may affect flight safety.}
Capacity: 41000 mAh
Nominal Voltage: 52 V

D14000iE Multifunctional Inverter Generator

Output Channels: 1. DC recharge output 42 - 61.6 V/9650W
2. Air-cooled radiator charge 12 V/6A
3. AC output 220 V/1500W
Recharge Time: 7 - 8 minutes (DB1580 Intelligent Flight Battery, 30% - 95% power)
8 - 9 minutes ( DB2160 Intelligent Flight Battery, 30% - 95% power)

^{Sea level height, environmental temperature between 15-40 degrees Celsius, time to charge the battery from 30% to 95%; fast charging is supported when the battery cell temperature is within the range of 15-75 degrees Celsius; charging time varies depending on input power, ASL, initial charge level, and other factors.}
Fuel Tank Capacity: 30 L
Starting Method: Starting the Generator via the One-Button Start Switch
Operating Temperature: 0 °C to 40 °C
Compatible Battery: DB1580 / DB2160 Intelligent Flight Battery
Dimensions: 757 mm × 704 mm × 677 mm
Weight: 87 ± 0.5 kg

^{Measured at sea level, the DJI Agriculture App will intelligently recommend the loading weight based on the current aircraft status, environmental conditions, and operational tasks. Users should not exceed the recommended maximum loading weight, as it may affect flight safety.}
Fuel Type: Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10%(*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%)
Reference Fuel Consumption: 500 mL/kWh
Engine Oil Model: SJ 10W-40
Engine Oil Capacity: 1.3 L

C12000 Smart Charger

Charger Model: CSX901-12000
Dimensions: 456 mm × 291 mm × 107 mm
Weight: 13.13 kg

^{Measured at sea level, the DJI Agriculture App will intelligently recommend the loading weight based on the current aircraft status, environmental conditions, and operational tasks. Users should not exceed the recommended maximum loading weight, as it may affect flight safety.}
Input: Three-phase AC Input: 175 - 520 V
Single-phase AC Input: 200 - 264 V
Output: 62 V
Rated Output Current: 194 A
Rated Power: 12000 W (three-phase 380 V input)
3000 W (single-phase 220 V input)
Charging Time: 7 - 8 mins (DB1580 Intelligent Flight Battery, 30% - 95% charge)
8 - 9 mins (DB2160 Intelligent Flight Battery, 30% - 95% charge)

^{Sea level height, environmental temperature between 15-40 degrees Celsius, time to charge the battery from 30% to 95%; fast charging is supported when the battery cell temperature is within the range of 15-75 degrees Celsius; charging time varies depending on input power, ASL, initial charge level, and other factors.}
Protection Functions: Over-voltage, over-charge, under-voltage and over-temperature protection.
Operating Temperature: 0° to 40° C
Output Channels: 1
Compatible with Intelligent Flight Battery: DB1580 / DB2160 Intelligent Flight Battery

Relay

Dimensions: 112 mm × 112 mm × 51 mm (without antenna)
120 mm × 112 mm × 101 mm (with antenna)
Weight: 630 g

^{Measured at sea level, the DJI Agriculture App will intelligently recommend the loading weight based on the current aircraft status, environmental conditions, and operational tasks. Users should not exceed the recommended maximum loading weight, as it may affect flight safety.}
Input: 2.7V - 24V
Power Consumption: 10.48 W (FCC), 8.8 W (SRRC)
Battery Capacity: 6500 mAh
Operating Time: 5 hours
Operating Frequency: 2.4000 - 2.4835 GHz, 5.150 - 5.250 GHz, 5.725 - 5.850 GHz
Effective Signal Range: 5 km (SRRC), 4 km (MIC/KCC/CE), 8 km (FCC)
(In an interference-free, unobstructed environment, flight altitude 2.5 m)
Charging Time: 2.5 hours (30W recharge)
Ingress Protection Rating: IP55

D-RTK 3 AG

Supports Satellite Systems: GPS: L1/L2/L5
BeiDou: B1I/B2I/B3I/B1C/B2A/B2B
Galileo: E1/E5a/E5b/E6
GLONASS: G1/G2
QZSS: L1CA/L2C/L5
L-BAND
Dimensions: 345 mm × 244 mm × 300 mm
Weight: 3.77 kg (including packaging)

^{Measured at sea level, the DJI Agriculture App will intelligently recommend the loading weight based on the current aircraft status, environmental conditions, and operational tasks. Users should not exceed the recommended maximum loading weight, as it may affect flight safety.}
Power Consumption: 7 W
Battery Capacity: 6500 mAh
Operating Time: 7 hours
Operating Frequency: Broadcast mode:
O4: 2.4G/5.8G
Effective Signal Range: FCC: 15 km
SRRC: 12 km
CE/JP: 8 km
Charging Time: 2.5 hours (30W recharge)
Ingress Protection Rating: IP67
Positioning Accuracy: PPP Satellite Service Accuracy:
Convergence Time: 20 min
Horizontal: 30 cm (RMS)
Elevation: 40 cm (RMS)
Network RTK Calibration:
Horizontal: 0.8 cm + 1 ppm (RMS)
Vertical: 1.5 cm + 1 ppm (RMS)
1 ppm: For every 1 km increase between the aircraft and the base station, the accuracy worsens by 1 mm. For example, if the aircraft is 1 km away from the base station, the accuracy is 1.1 cm.

^{Positioning accuracy and reliability are affected by various factors, including equipment tilt, signal obstruction, multipath, number of satellites, geometric distribution, and atmospheric conditions. It is recommended to set up the equipment in open scenes, away from electromagnetic interference and multipath environments.}

In the box

DJI Agras T70P × 1
DB2160 Intelligent Flight Battery × 3
DJI WB37 Intelligent Battery × 1
DJI 65W Portable Charger × 1

WHY BUY FROM US?

By buying from Ferntech, you'll have the confidence that you are dealing directly with New Zealand's leading drone experts. Our staff are knowledgable drone pilots who offer expert advice, trusted support and superior specialist service. Only through us will you receive a full New Zealand warranty, phone and email support, and access to our certified Repairs Centre with DJI-qualified drone technicians. And we guarantee that we will have the best prices on the market — if not let us know and we will match any price (conditions apply).

Warranty Details

Frequently Asked Questions

Power System

What enhancements does the DJI Agras T70P Power System offer compared to the Agras T50?
Equipped with 62-inch carbon fiber propellers, motor electromagnetic and process optimization improve energy efficiency by 3%; fuselage mechanical efficiency improvement by 18%.

What is the rotation direction of the propellers on the DJI Agras T70P?
T70P Propeller Rotation Direction

What improvements do carbon fiber propellers bring?
Carbon fiber propellers improve efficiency by 32%, have higher hardness, are less prone to deformation at high temperatures, and provide more stable power output, making the aircraft more stable and safer.

Safety System 3.0

What precautions should be taken when using safety systems?
1. Observation distance may vary due to different environmental lighting, rain, fog, and the material, position, and shape of the target object;
2. When the vision is dirty or during nighttime operations, the aircraft will use radar alone to complete terrain-following operations. The effectiveness of terrain-following may be reduced, so please fly cautiously.

What improvements does millimeter-wave radar offer?
Optimization of the detection algorithm for millimeter-wave radar further enhances obstacle avoidance and bypassing performance.

Why is it said that Safety System 3.0 can make the aircraft safer as it flies?
During operations, the aircraft encounters unmarked obstacles and automatically recognizes and memorizes their locations. Users can save the obstacle locations within the block with one click on the remote controller, and the operation route will automatically bypass the obstacles. If users do not choose to save the obstacles within the block, the aircraft will still anticipate obstacles based on memory when passing the same location next time, improving the success rate of obstacle avoidance and bypassing.

What types of forests and orchards are suitable for the terrain-following function of DJI Agras T70P?
Suitable for forests and orchards without obstacles such as power lines, diagonal cable, or dead trees.

What functions are supported by the millimeter-wave radar and tri-vision system equipped on DJI Agras T70P?
1. Supports horizontal omnidirectional obstacle avoidance and intelligent bypassing in the direction of the aircraft's head.
2. Supports steep terrain-following operations.
