DJI BS100 Intelligent Battery Station

Features

The BS100 Battery Station supports fast, intelligent charging for up to 3 TB100 and 2 WB37 batteries, with multiple charging modes including Rapid Mode (0–100% in 45 mins @ 220V). Integrated with DJI's intelligent battery management system, it enables full status monitoring, auto-discharge, and firmware updates via the remote controller.

Highlights

• Supports up to 3 x TB100 batteries for DJI M400, and 2 x WB37 batteries.
• Charge level mode: Standby - 90%; Standard - 100%.
• Speed mode: Rapid mode - 0 to 100% in 45 minutes @ 220V, 70 minutes @ 110V; Quiet mode - 0 to 100% in 110 minutes @ 220V and 110V.
• Connect to the remote controller for battery station management.
• Supports full battery status monitoring.
• One-tap setting for auto-discharge and firmware updates.

Product Specifications

Model: BS100

Net Weight: 11.8 kg

Dimensions: 605×410×250 mm (L×W×H)

Supported Batteries: TB100 Intelligent Flight Battery, TB100C Tethered Battery
WB37 Battery

Operating Temperature: -20° to 40° C (-4° to 104° F)

Input: 100-240 V (AC), 50-60 Hz, 10 A

Output: USB-C：
TB100 Battery Interface:
100-110 V: Approx. 1185 W
110-180 V: Approx.1474 W
180-240 V: Approx. 2184 W
WB37 Battery Interface:
100-240 V: Approx. 52 W
USB-C:
5.0 V 3.0 A, 9.0 V 3.0 A, 12.0 V 3.0 A, 15.0 V 3.0 A, 20.0 V 3.25 A

Number of Charging Channels: Three TB100 and two WB37 batteries

Charging Mode: Ready-to-Fly Mode 90%; Standard Mode 100%
Supports Fast Charging Mode and Silent Mode

Charging Time: TB100/TB100C Battery From 0% to 100%:
220 V: 45 minutes (Fast Charging Mode); 110 minutes (Silent Mode)
110 V: 70 minutes (Fast Charging Mode); 110 minutes (Silent Mode)
^{Charging time is measured in a test environment with a temperature of 25° C.}

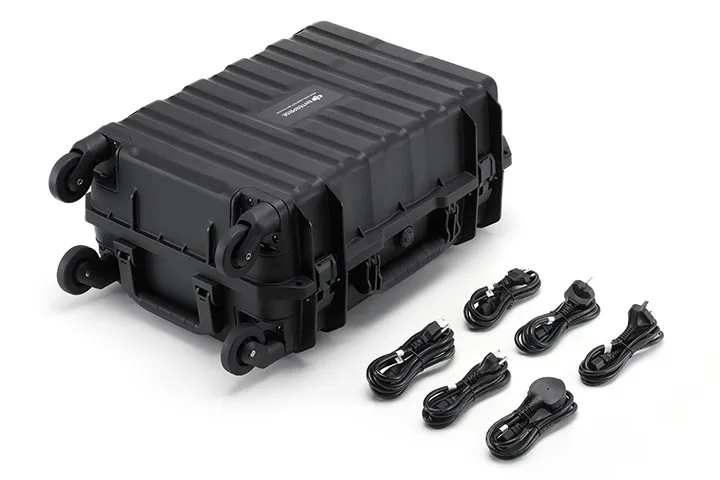

In the box

BS100 Multifunctional Battery Station × 1
