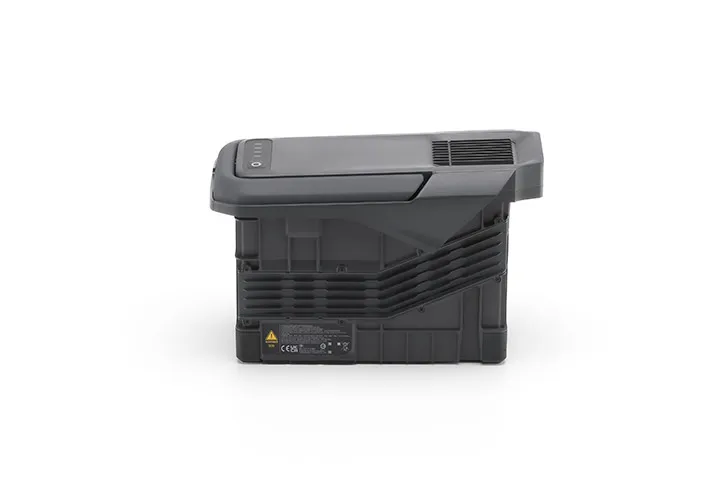

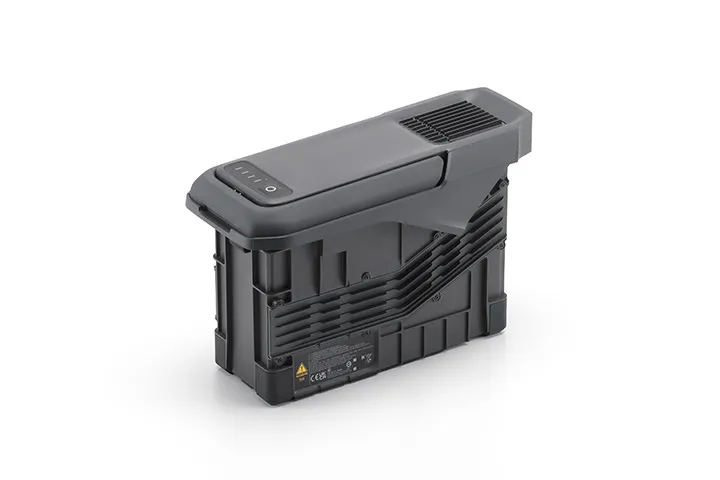

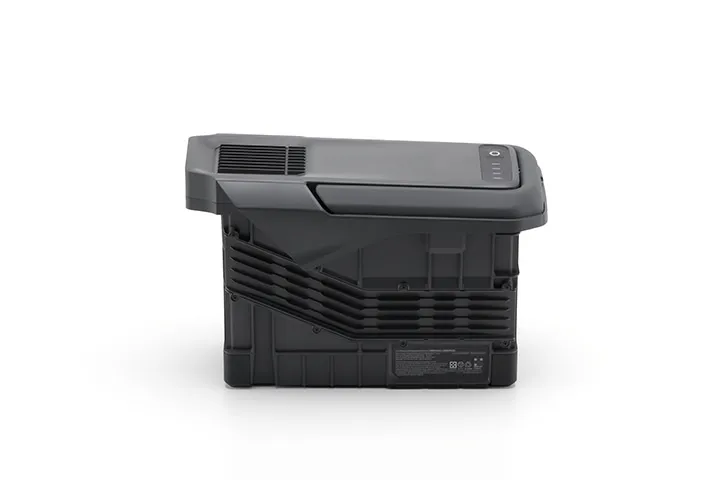

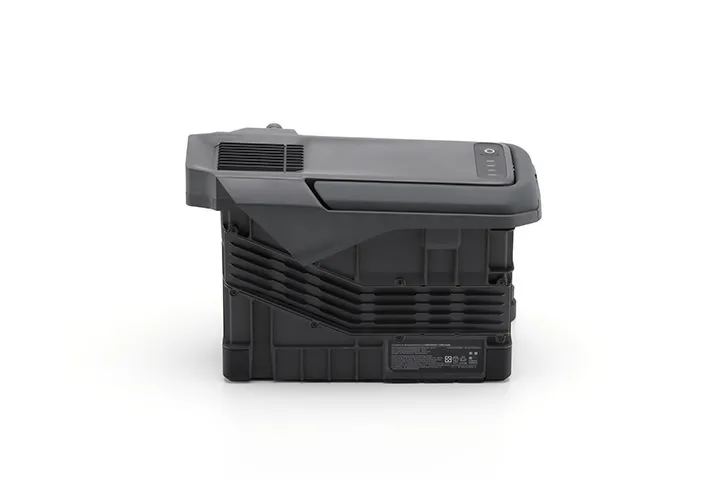

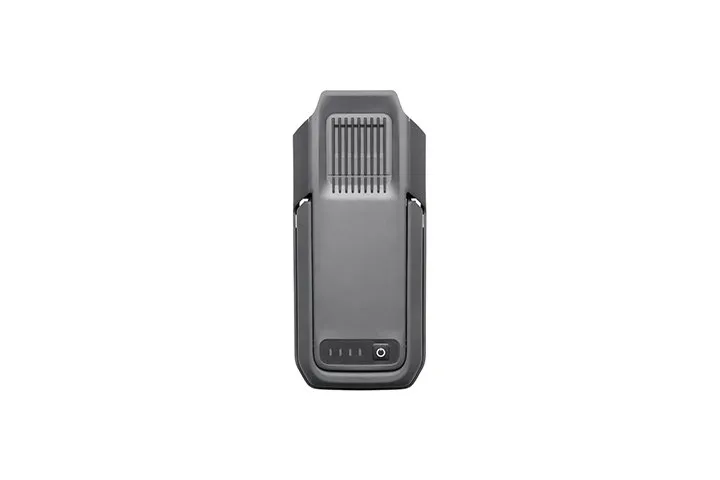

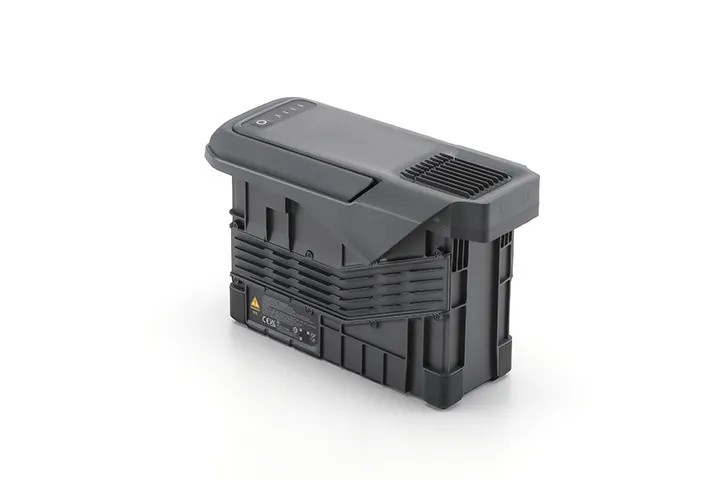

DJI Matrice 400 TB100 Intelligent Flight Battery

Features

The TB100 is a high-capacity battery with a top-insert design and new handle for fast, secure mounting and removal. Designed for the DJI M400, it supports hot-swapping with built-in capacitors that maintain power for 45 seconds, preserving satellite connection for quick mission restarts without GPS reacquisition.


Highlights

• Up to 59 minutes of flight time
• High-capacity battery (20,254 mAh).

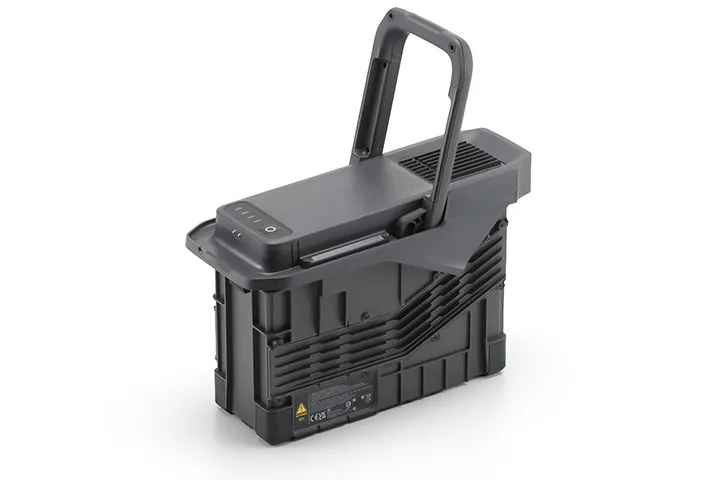

• Top-insert design allows for quick insertion and removal.
• Li-ion 13S.
• 977 Wh energy.
• 400 cycles.
• The M400 features built-in capacitors to maintain power for up to 45 seconds during battery replacement for core modules, enabling a rapid restart.
• Upon restart, the drone retains satellite connection, allowing missions to resume quickly without reacquiring GPS.

Product Specifications

Model: TB100

Capacity: 20254 mAh

Standard Voltage: 48.23 V

Max Charging Voltage: 54.6 V

Cell Type: Li-ion 13S

Energy: 977 Wh

Weight: 4720 ± 20 g

Charging Temperature: 5° to 45° C (41° to 113° F)

Discharging Temperature: -20° to 75° C (-4° to 122° F)

Battery Heating: Single Battery: Support
Onboard: Support
Battery Station: Support

Discharge Rate: 4C

Max Charging Power: 2C

Low-Temperature Charging: Supports low-temperature self-heating charging

Cycle Count: 400

In the box

TB100 battery × 1
