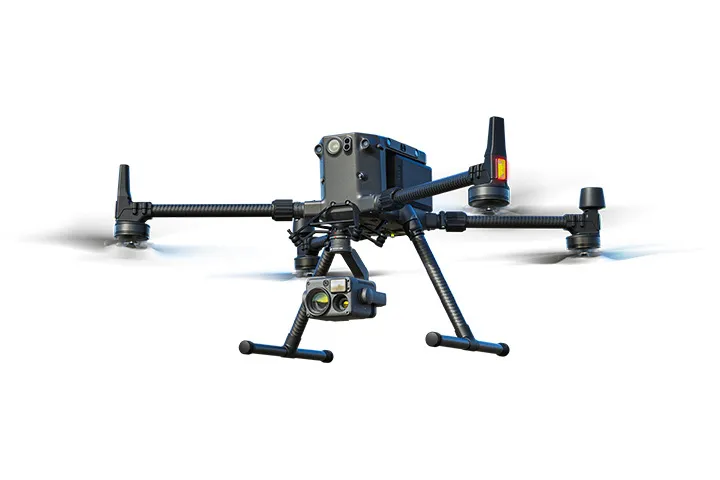

DJI Matrice 300 RTK Thermal Combo

Contact for Pricing
SKU: M300RTK_H20T

The DJI Matrice 300 RTK with Zenmsue H20T. Capture everything up close or from a distance in true living colour or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away.


In Stock

FREE SHIPPING ON ALL ORDERS OVER $300

All orders placed before 2pm will be delivered the next day on overnight track and trace courier. Larger items will be sent on a two day service to the South Island. Please note rural addresses (RD) can take 1-3 days longer.


The DJI Matrice 300 RTK Thermal Combo comes with complimentary 4 hours training on handover. As well as FREE Enterprise Shield cover on the Matrice 300 and Zenmuse H20T



The DJI Matrice 300 RTK Thermal Combo comes with all the extras you need for a high-efficiency surveying package. Including the Zenmsue H20T, two sets of TB60 batteries, two WB37 remote controller batteries and a charging station to store and charge them all.



Optional Add-Ons

DRTK2 Base Station for Matrice
DJI Terra
3 Day Drone Survey Course
GPC Base Station Case



Redundancy Systems for Safer Flights

The M300 RTK's built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.



Purpose-built Applications



Highlights

IP45
Anti-collision Beacon
15 Km Transmission Range
Mobile SDK Compatibility
Payload SDK
Onboard SDK



All the Sensors You Need - In One

Capture everything up close or from a distance in true living colour or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful integrated payload that unleashes advanced intelligent capabilities.



Thermal sensitivity

Visual Sensor

Laser Range Finder

Ingress Protection

< 50 MK 12 MP 3m - 1200m Level IP44





All-In-One



Intelligent Ways to Collect Data



AI Spot-Check

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.



High-Res Grid Photo

Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.



Visualize Temperatures Immediately



Intelligent Features



Temp Alarm

Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.

Colour Palettes

Adjust the colours applied to the thermal data based on the needs of specific scenarios.

R-JPEG Images

Images captured by the Zenmuse H20T are in the R-Jpeg format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.

Isotherms

Visualize a specific band of temperatures to find what is important.

Gain Modes

Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences: Low Gain Mode covers a wider temperature range.



Application



Download the brochure from this link



Contact our team today for product availability and pricing.

 Call Commercial Team
or
Send an Email





Product Specifications

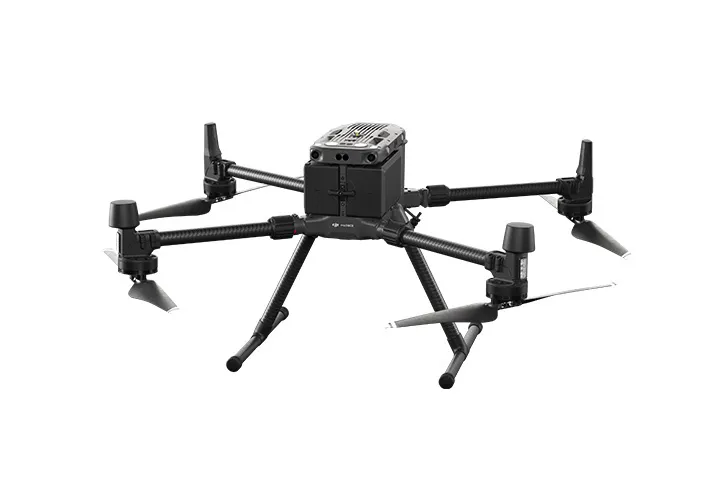

Aircraft

Dimensions:
Unfolded, propellers excluded, 810×670×430 mm (L×W×H)
Folded, propellers included, 430×420×430 mm (L×W×H)
Diagonal Wheelbase: 895 mm
Weight (with single downward gimbal):
Approx. 3.6 kg (without batteries)
Approx. 6.3 kg (with two TB60 batteries)
Max Takeoff Weight: 9 kg
Max Payload: 2.7 kg
Operating Frequency: 2.4000-2.4835 GHz 5.725-5.850 GH
EIRP:
2.4000-2.4835 GHz:
29.5 dBm (FCC); 18.5dBm (CE)
18.5 dBm (SRRC); 18.5dBm (MIC)
5.725-5.850 GHz:
28.5 dBm (FCC); 12.5dBm (CE)
28.5 dBm (SRRC
Hovering Accuracy (P-mode with GPS):
Vertical:
 ±0.1 m(Vision System enabled)
 ±0.5 m(GPS enabled)
 ±0.1 m(RTK enabled)
Horizontal:
 ±0.3 m(Vision System enabled)
 ±1.5 m(GPS enabled)
 ±0.1 m(RTK enabled)
RTK Positioning Accuracy:
When RTK enabled and fixed:
1 cm+1 ppm (Horizontal)
1.5 cm + 1 ppm (Vertical
Max Angular Velocity: Pitch: 300°/s, Yaw: 100°/
Max Pitch Angle: 30° (P-mode, Forward Vision System enabled: 25°
Max Ascent Speed:
S mode:6 m/s
P mode:5 m/
Max Descent Speed (vertical):
S mode:5 m/s
P mode:3 m/
Max Descent Speed (Tilt):
S mode:7 m/s
Max Speed:
S mode:23 m/s
P mode:17 m/
Service Ceiling Above Sea Level:
5000 m (with 2110 propellers, takeoff weight ≤ 7 kg) / 7000 m (with 2195 propellers, takeoff weight ≤ 7 kg
Max Wind Resistance: 15 m/s
Max Flight Time: 55 min
Supported DJI Gimbals: Zenmuse XT2 /XT S /Z30 /H20 /H20
Supported Gimbal Configurations: Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal, Upward and Downward Gimbals, Triple Gimbal
Ingress Protection Rating: IP45
GNSS: GPS+GLONASS+BeiDou+Galile
Operating Temperature: -20°C to 50°C (-4°F to 122° F

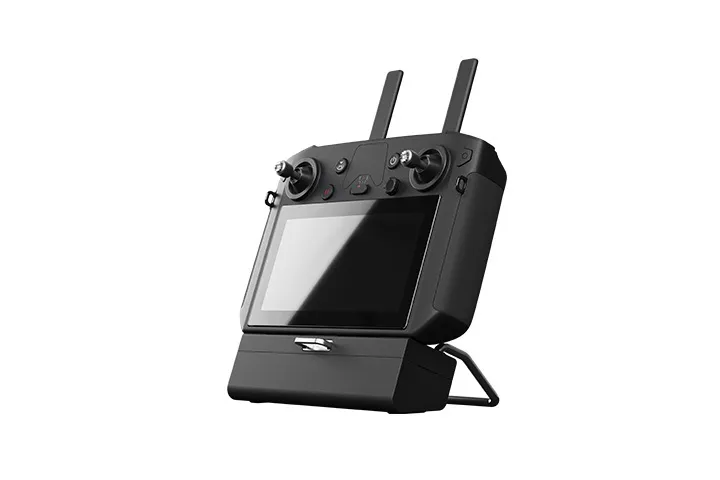

Remote Controller

Operating Frequency
2.4000-2.4835 GHz
5.725-5.850 GHz
Max Transmitting Distance (unobstructed, free of interference)
NCC/FCC: 15 km
CE/MIC: 8 km
SRRC: 8 km
EIRP
2.4000-2.4835 GHz:
29.5 dBm (FCC) 18.5dBm (CE)
18.5 dBm (SRRC); 18.5dBm (MIC)

5.725-5.850 GHz:
28.5 dBm (FCC); 12.5dBm (CE)
20.5 dBm (SRRC)
External battery
Name: WB37 Intelligent Battery
Capacity: 4920 mAh
Voltage: 7.6V
Type: LiPo
Energy: 37.39Wh
Charging time (using BS60 Intelligent Battery Station): 70 minutes (15°C to 45°C); 130 minutes (0°C to 15°C)
Built-in battery
Type: 18650 lithium-ion battery (5000 mAh @ 7.2 V)
Charging: Use a USB charger with the specification of 12V / 2A
Rated power: 17 W
Charging time: 2 hours and 15 minutes (Using a USB charger with a specification of 12V / 2A)
Battery Life
Built-in battery: Approx. 2.5h
Built-in battery+External battery: Approx. 4.5h
USB Power Supply
5 V / 1.5 A
Operating Temperature
-20°C to 40°C (-4 °F to 104 °F)



Vision System

Obstacle Sensing Range
Forward/Backward/Left/Right: 0.7-40m
Upward/Downward: 0.6-30m
FOV
Forward/Backward/Downward: 65° (H), 50° (V)
Left/Right/Upward: 75°(H), 60°(V)
Operating Environment
Surfaces with clear patterns and adequate lighting (> 15 lux)



Infrared ToF Sensing System

Obstacle Sensing Range
0.1-8m
FOV
30° (±15°)
Operating Environment
Large, diffuse and reflective obstacles (reflectivity >10%)



Top and bottom auxiliary light

Effective lighting distance
5 m



FPV Camera

Resolution: 960p
FOV: 145°
Frame rate: 30 fps



Intelligent Flight Battery

Name: TB60
Capacity: 5935 mAh
Voltage: 52.8 V
Battery Type: LiPo 12S
Energy: 274 Wh
Net Weight: Approx. 1.35 kg
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Ideal storage temperature: 71.6°F to 86°F (22°C to 30°C)
Charging Temperature: -4°F to 104°F (-20°C to 40°C)
(When the temperature is lower than 5°C, the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
Charging time
Using BS60 Intelligent Battery Station:
220V input: 60 minutes (fully charging two TB60 batteries), 30 minutes (charging two TB60 batteries from 20% to 90%)
110V input: 70 minutes (fully charging two TB60 batteries), 40 minutes (charging two TB60 batteries from 20% to 90%)

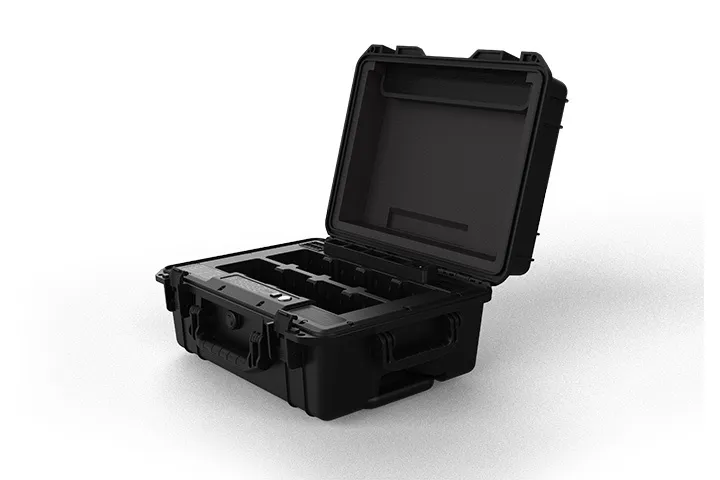

BS60 Intelligent Battery Station

Dimensions: 501*403*252mm
Net Weight: 8.37kg
Maximum Capacity
TB60 Intelligent Flight Battery × 8
WB37 Intelligent Battery × 4
Input: 100-120 VAC, 50-60 Hz / 220-240 VAC, 50-60 Hz
Max. Input Power: 1070W
Output Power
100-120 V: 750 W
220-240 V: 992 W
Operating Temperature
-4°F to 104°F (-20°C to 40°C)

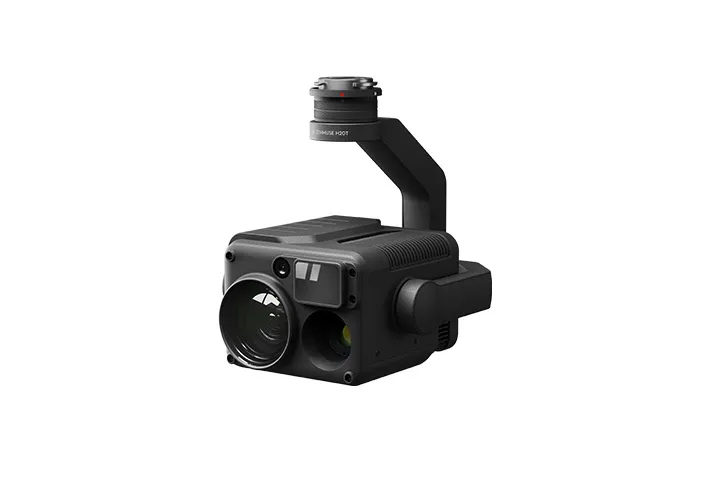

Zenmuse H20T

Weight: Zenmuse H20T: 828±5 g
Dimensions: Zenmuse H20T: 167×135×161 mm
Ingress Protection Rating: IP44
Operating Temperature: -20° to 50° C (Temperature Measurement is only available between -10° to 50° C)
Storage Temperature: -20° to 60° C
Laser Safety: Class 1M (IEC 60825-1:2014)
Supported Aircraft: Matrice 300 RTK



Gimbal

Angular Vibration Range: ±0.01°
Mount: Detachable
Controllable Range
Pitch: -120° to +30°
Yaw: ±320°
Mechanical Range
Pitch: -132.5° to +42.5°
Yaw: ±330°
Roll: -90° to +60°



Zoom Camera

Sensor: 1/1.7" CMOS, 20 MP
Lens
DFOV: 66.6°-4°
Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm)
Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene)
Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)
Focus Mode: MF/AF-C/AF-S
Exposure Mode: Auto, Manual
Exposure Compensation: ±3.0 (1/3 increments)
Metering Mode: Spot metering, Center-weighted metering
AE LOCK: Supported
Electronic Shutter Speed: 1 ~ 1/8000 s
ISO Range
Video: 100 - 25600
Photo: 100 - 25600
Video Resolution
3840x2160@30fps, 1920x1080@30fps
Video Format: MP4
Video subtitles: Supported
Photo Size: 5184 × 3888
Photo Format: JPEG



Wide Camera

Sensor: 1/2.3" CMOS, 12 MP
Lens
DFOV: 82.9°
Focal length: 4.5 mm (equivalent: 24 mm)
Aperture: f/2.8
Focus: 1 m to ∞
Exposure Mode: Auto
Exposure Compensation: ±3.0 (1/3 increments)
Metering Mode: Spot metering, Center-weighted metering
AE LOCK: Supported
Shutter Speed: 1 ~ 1/8000
ISO Range
Video: 100 - 25600
Photo: 100 - 25600
Video Resolution: 1920×1080@30fps
Video Format: MP4
Video subtitles: Supported
Photo Size: 4056 x 3040
Photo Format: JPEG



Thermal Camera

Sensor: Uncooled VOx Microbolometer
Lens
DFOV: 40.6°
Focal length: 13.5 mm (equivalent: 58 mm)
Aperture: f/1.0
Focus: 5 m to ∞
Digital Zoom: 1x, 2x, 4x, 8x
Video Resolution: 640×512 @ 30 Hz
Video Format: MP4
Image Resolution: 640×512
Image Format: R-JPEG (16 bit)
Pixel Pitch: 12 μm
Spectral Band: 8-14 μm
Sensitivity (NETD): ≤50 mK @ f/1.0
Temperature Measurement Method: Spot Meter, Area Measurement
Scene Range
-40 °C to 150 °C (High Gain)
-40 °C to 550 °C (Low Gain)
Temperature alert: Supported
FFC: Auto/ manual
Palette: White-hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot



Laser Rangefinder

Wavelength: 905 nm
Measurement range: 3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)
Measurement accuracy
± (0.2 m + D×0.15%)
D is the distance to a vertical surface



Features

Hybrid Optical Zoom: 23×
Max. Zoom: 200×
One-Click Capture
One-click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously
Point to Aim
Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest
High-Res Grid Photo
Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
Night Scene: Supported (zoom camera)
Timestamp: Including GPS, date, and time



Storage

Supported SD Card: MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)
Supported File Systems: FAT32 (≤ 32 GB), exFAT (> 32 GB)
Recommended Micro SD Cards
TOSHIBA EXCERIA PRO 32GB micro SD HC II
SanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC I
TOSHIBA EXCERIA PRO 64GB micro SD XC II
SanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC I
SAMSUNG_EVO_128GB_micro SD 3 XC I
TOSHIBA EXCERIA M303E 32GB micro SD HC I
TOSHIBA EXCERIA M303E 64GB micro SD XC I
TOSHIBA EXCERIA M303E 64GB micro SD XC I
TOSHIBA EXCERIA M303 128GB micro SD XC I
SAMSUNG_EVO_64GB_micro SD 3 XC I

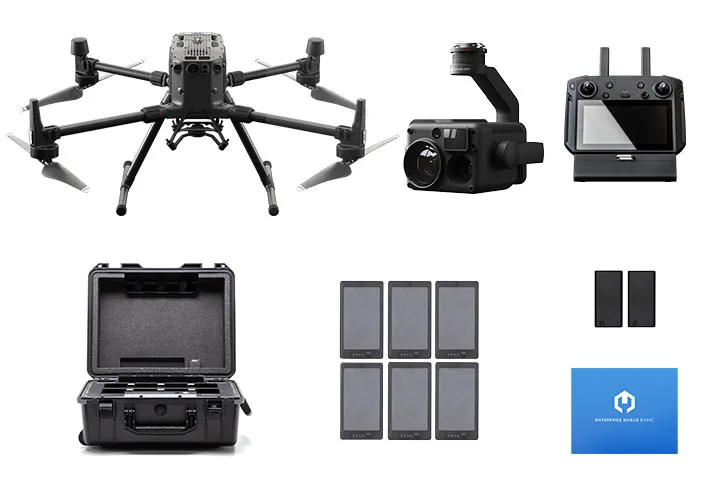

In the box

M300 RTK Aircraft Body x 1
DJI Smart Controller Enterprise x 1
TB60 Intelligent Flight Battery x 4
WB37 Intelligent Battery x 2
2110 Propeller (CW) x 2
2110 Propeller (CCW) x 2
Landing Gear x 2
Spare Stick Cover (pair) x 1
Spare Propeller Holder x 2
Spare Gimbal Damper x 4
USB Cable (with Double A Ports) x 1
Vision System Calibration Plate x 1

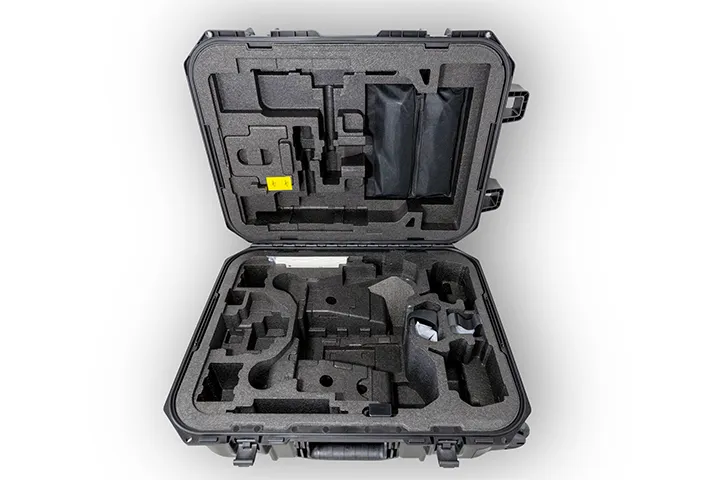

Carrying Case x 1
Smart Controller Lanyard x 1
Rubber Port Cover (Set) x 1
BS60 Intelligent Battery Station x 1
Power Cable x 1
Screws and Tools - M1.6 | M3
USB Charger x 1
USB-C Cable x 1
Enterprise Shield Basic (M300 RTK) x 1

Zenmuse H20T x 1
Enterprise Shield Basic (Zenmuse H20T) NZ x 1

4 Hours Training on-site (Travel to your location to be quoted) x 1

WHY BUY FROM US?

By buying from Ferntech, you'll have the confidence that you are dealing directly with New Zealand's leading drone experts. Our staff are knowledgable drone pilots who offer expert advice, trusted support and superior specialist service. Only through us will you receive a full New Zealand warranty, phone and email support, and access to our certified Repairs Centre with DJI-qualified drone technicians. And we guarantee that we will have the best prices on the market — if not let us know and we will match any price (conditions apply).



Warranty Details

Flight Control System: 12 Months
Aircraft Body (Excluding Shell, Landing Gear Base, Battery Locker): 12 Months
Propulsion System (Excluding Propellers): 12 Months
Antenna (Transmission Antenna and D-RTK Antenna): 12 Months
Propellers, Shell, Landing Gear Base, and Battery Locker: No Warranty
Smart Controller Enterprise: 12 Months
DJI Smart Controller Expansion Kit: 12 Months
Intelligent Flight Battery (TB60): 12 Months
Intelligent Battery (WB37): 12 Months
BS60 Intelligent Battery Station: 12 Months
USB Charger: 12 Months
Upward Gimbal Connector: 12 Months
Downward Single Gimbal Connector: 12 Months
Downward Dual Gimbal Connector: 12 Months
Manifold 2 Mounting Bracket: 12 Months
Carrying Case: 12 Months
Other Accessories: No warranty



AIRCRAFT



Can the downward single gimbal connector be replaced with a dual gimbal connector?
Yes.

To ensure safety, before replacing the gimbal connector, it is recommended to power off the aircraft and remove the TB60 Intelligent Flight Batteries.
What is the ingress protection rating of the M300 RTK? Can I fly in the rain?

The Matrice 300 RTK has a protection rating of IP45. However, the protection rating is not permanently effective and may decrease due to wear and tear. Do not fly in rain heavier than 100mm/24h.

Which propellers come with the M300 RTK?
The M300 RTK comes with standard 2110 propellers. You could also use the 2195 high altitude low noise propellers.



BATTERY



How long does it take to fully charge two TB60 Intelligent Flight Batteries?
With 220V power supply: It takes about 60 minutes to fully charge two TB60 Intelligent Flight Batteries, and about 30 minutes to charge them from 20% to 90%.
With 110V power supply: It takes about 70 minutes to fully charge two TB60 Intelligent Flight Batteries, and about 40 minutes to charge them from 20% to 90%.

How many batteries can the Battery Station charge at the same time?
It can simultaneously store eight TB60 Intelligent Flight Batteries and four WB37 Intelligent Batteries. It can charge two TB60 Intelligent Flight Batteries and one WB37 Intelligent Battery at the same time. Batteries with the highest battery levels will be recharged first, followed by the ones with lower levels.

How do I maintain the TB60 Intelligent Flight Battery?
1. Before using, mark two TB60 Intelligent Flight Batteries as a pair that will always be charged/discharged together to ensure optimal performance.
2. Do not charge immediately after a flight. Let the battery cool down to room temperature before charging.
3. The ideal charging temperature of TB60 Intelligent Flight Battery is 15 °C - 40 °C;
4. The ideal storage temperature of TB60 Intelligent Flight Battery is 22 °C - 30 °C. Make sure they are stored in an environment that is free of moisture and not in direct sunlight.
5. If a battery won’t be in use for more than 10 days, please discharge it until the battery level drops to 40% - 65%, and store it properly. Charge and then discharge the battery every 3 months to keep it healthy.

Can the TB60 Intelligent Flight Battery be used in low-temperature environments?
The operating temperature of the TB60 Intelligent Flight Battery is -20°C to 50°C. When the battery is used in a low-temperature environment, note that the battery life will be reduced. To optimize performance in the cold, it is recommended to warm the battery up to 15 °C before use.
When charging the batteries in an environment between -20 °C and 5 °C, the self-healing function will be activated to raise the battery's temperature to above 5 °C.
Once installed on the aircraft and the power is turned on, if the battery’s temperature is low, it will automatically self-heat to keep the temperature at about 16 °C to 20 °C.

Does the M300 RTK support TB50 / TB55 Intelligent Flight Batteries?
No.

Can TB60 Intelligent Flight Battery be carried onboard an aeroplane?
The capacity of the TB60 Intelligent Flight Battery is 274 Wh and cannot be carried on board aeroplanes according to airline regulations.

Why is the battery warm while in storage?
When the battery is stored for a long time, to ensure storage safety and to extend battery life, the battery will automatically start self-discharging to about 65%. It’s normal for the battery to feel slightly warm during this process.

Can the drone take off when two batteries are at different battery levels?
The M300 RTK can take off if the voltage discrepancy of the two batteries is within 0.7 V. If it is unable to take off, the app will inform you that “the power discrepancy in the two batteries is too large”.



REMOTE CONTROLLER



Are remote controllers of M300 RTK compatible with the other DJI products?
No.

What type of image output port does the DJI Smart Controller Enterprise provide?
HDMI port.

What transmission system is used in the DJI Smart Controller Enterprise use?
OcuSync Enterprise.

What are the screen size, resolution, and maximum brightness of the DJI Smart Controller Enterprise?
It comes with a built-in 5.5-inch 1920×1080p high-brightness touch screen with a maximum brightness of 1000 cd/m².

Does the DJI Smart Controller Enterprise support 4G dongles?
Yes. It supports the ZTE MF833V dongle.

Does the DJI Smart Controller Enterprise support CrystalSky?
No. Due to the limited processing power of the CrystalSky, it cannot support advanced intelligent functions of the M300 RTK.



TRANSMISSION



How many camera feeds can be viewed at the same time?
Dual Remote Controller Mode: view up to 3 live feeds simultaneously (including FPV camera);
Single Remote Controller Mode: view of up to 2 live feeds simultaneously (including FPV camera).

Can I capture photos or videos using the FPV camera?
No.



PAYLOADS



Which payloads are compatible with M300 RTK?
The M300 RTK is compatible with DJI's Zenmuse H20 series, Zenmuse XT S, Zenmuse XT2, Zenmuse Z30, and third-party payloads developed using DJI Payload SDK.
Please download the latest firmware of the payloads and update the firmware before using them with M300 RTK.

How many payloads can be mounted at the same time?
M300 RTK can carry 3 payloads at the same time using the dual downward gimbal connector and the upward gimbal connector.

What payload configurations does the M300 RTK support?
The M300 RTK supports the following payload configurations:
Single downward gimbal: Zenmuse XT2, Zenmuse XT S, Zenmuse Z30, Zenmuse H20, Zenmuse H20T, and third-party payloads developed on PSDK. Dual gimbals: Zenmuse XT2 + Zenmuse Z30; Zenmuse XT2 + Zenmuse H20; Zenmuse XT S + Zenmuse Z30; Zenmuse XT S + Zenmuse H20; and one of the above single gimbal with a third-party payload developed on PSDK
Three gimbals: one of the above dual gimbal configurations + a third-party payload developed on PSDK
Note: The Zenmuse XT2 can only be mounted on the right downward gimbal port (Left and right are determined from the perspective of looking directly at the drone from the front).

Can I control multiple gimbals simultaneously?
You can control the movements of each gimbal simultaneously, but you can't take photos/videos simultaneously.

Can I control the angle of the FPV camera through a remote controller?
No, the angle of the FPV camera cannot be changed.

Does the M300 RTK support the Zenmuse XT, Zenmuse X4S, Zenmuse X5S, or Zenmuse X7?
No.



RTK



Does the M300 RTK support PPK technology?
Support for PPK is coming soon.

Is the M300 RTK capable of delivering survey-grade data?
When equipped with a third-party payload designed to capture data at survey-grade accuracy, the M300 RTK can be used to conduct surveying missions. The specific data accuracy depends on the performance and compatibility of the third-party cameras. For more information, please fill out the Contact Us form at the bottom of the page, and we will reach out to you as soon as possible.

Is the M300 RTK compatible with the D-RTK 2 Mobile Station for the M210 RTK V2 or the one for Phantom 4 RTK?
Yes. Please refer to the user manual of the M300 RTK and upgrade the firmware of the D-RTK 2 Mobile Station. Please note that different modes need to be selected when using the Mobile Station with the M210 RTK V2, Phantom 4 RTK, or M300 RTK. The D-RTK 2 mobile station only supports one of the three models at a time. For more details, please refer to the user manual.

How does the M300 RTK acquire real-time differential data?
The M300 RTK obtains real-time differential data in the following two ways:
1. By connecting to the D-RTK 2 Mobile Station (RTCM3.2)
2. By connecting the remote controller to an NTRIP network RTK service through a 4G dongle or a WiFi hotspot (supports RTCM3.0/RTCM3.1/RTCM3.2)

Can one D-RTK 2 Mobile Station support multiple M300 RTK drones simultaneously?
Yes, there is no limit to the number of drones that can be used simultaneously.



SOFTWARE



How do I update the firmware?
1. Via computer: use DJI Assistant 2 For Matrice by connecting to a computer to update the firmware of the aircraft, remote controller, and D-RTK 2 Mobile Station.
2. Via DJI Pilot app: update the firmware of the aircraft, remote controller, and BS60 Intelligent Battery Station.
Please refer to the user manual for details.

What apps and software are supported by the M300 RTK?
Currently only DJI Pilot App (Android version) is supported. DJI GS Pro will be supported soon.

Which SDKs are available on the M300 RTK?
M300 RTK supports DJI Onboard SDK, Payload SDK, and Mobile SDK. For technical support, please contact dev@dji.com.



OTHER



Can I use my M300 RTK across different regions/countries?
No. Before purchasing, please confirm with your DJI Enterprise dealer about where the drone can be used.

 Call Commercial Team

There's currently no reviews for this product, be the first to write one.

Write a product review
