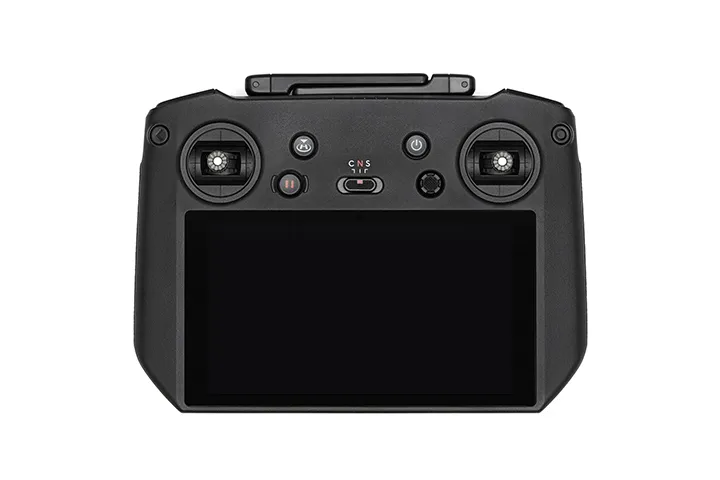

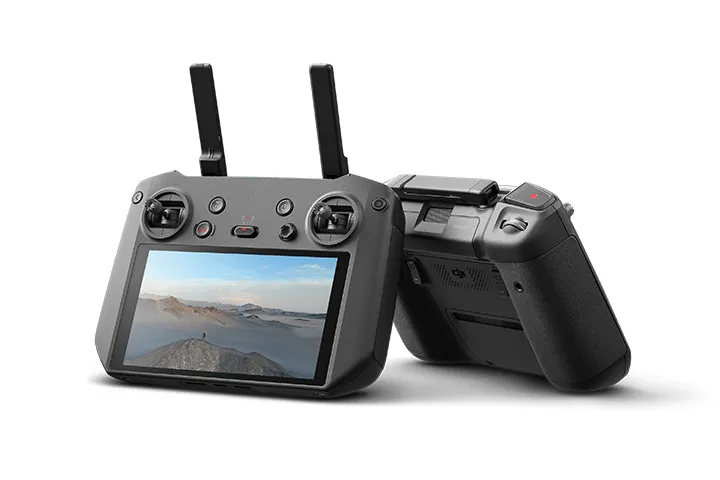

DJI RC Pro



Features

With powerful performance, DJI RC Pro was made for professional aerial photography. RC Pro runs on a stable and smooth system, thanks to its latest-generation processor and expanded storage capacity. Built with the powerful O3+ video transmission technology, RC Pro also supports the DJI Cellular Transmission Dongle [1] to enable 4G communication [2] and adopts the same control stick design of DJI FPV for more precise maneuvering. DJI RC Pro elevates the experience of flight with unparalleled control.



O3+ Video Transmission

Incredible Signal Range and Quality, Backed by 4G





See Further

DJI RC Pro features O3+ video transmission technology, capable of sending a 1080p/60fps live feed from up to 15 km away and latency as low as 120 ms. [3] A 2T4R high-gain antenna system enhances signal coverage and keeps the signal transmission stable and smooth.

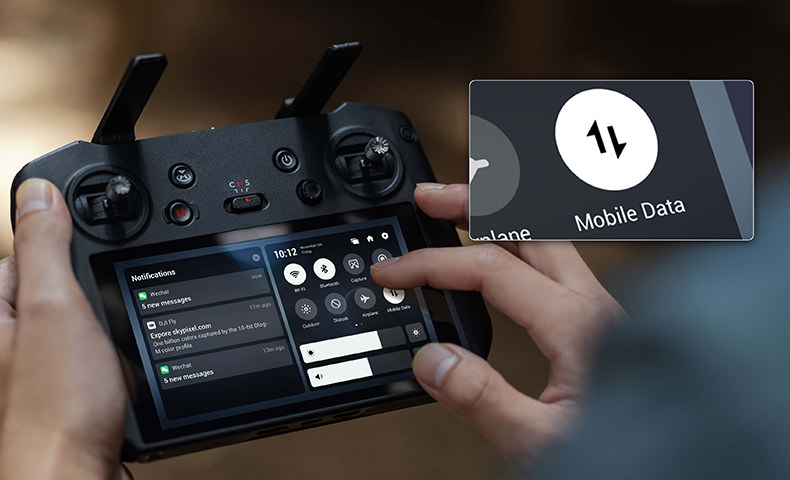

4G Communication

With the DJI Cellular Transmission Dongle installed, DJI RC Pro can operate via 4G signals, providing stable communication even when the drone is flying in urban areas, dense forests, and other complex environments. O3+ transmission coordinates with the 4G system and switches seamlessly to ensure a smooth shooting experience during flight.





High-Bright Screen

DJI RC Pro includes an integrated 5.5-inch 1080p screen that reaches an average brightness of 1000 nits. This long-lasting high-bright display is perfect for its Outdoor mode, [2] where shadow details are enhanced automatically for clear display, even under direct sunlight.

Next-Level Performance
Updated Processor for Upgraded Performance





High Performance

DJI RC Pro is equipped with the latest-generation processor, offering stronger performance and lower power consumption. This results in 4x improved CPU performance, 7x improved GPU performance, and 20% lower power consumption over its predecessor. DJI RC Pro brings a more durable, stable, and smooth system that simply enhances flying.





QuickTransfer

DJI RC Pro supports Wi-Fi 6 protocol to download photos and videos from the aircraft at speeds of up to 80 MB/s. [2]

Precision Control
DJI FPV-Inspired Design. Immediate Takeoff.

Fine-Tuned Control Experience

DJI RC Pro uses the same control stick design of DJI FPV for precise maneuvering, smooth operation, and better shot composition.

Instant Start

Once powered on, DJI RC Pro connects to the aircraft in seconds, ready to capture every moment.

Outstanding Audio and Video

DJI RC Pro supports videos played at 4K/120fps in H.264 and H.265 codecs. A mini-HDMI port, all-purpose USB Type-C port, and microSD card slot also supports charging, storage, and video output.

More Functions

Optimized for Third-Party, Livestream, and Power
Third-Party App
Livestream
Faster Charging and Longer Operation
DJI RC Pro introduces a livestreaming function, where third-party apps can use the drone’s camera view for direct livestreaming, instant sharing of short videos, and more. [5]

Notes:
* Tested with a DJI Mavic 3 production model in a closed environment in favorable conditions and an unobstructed wireless signal. Actual results may vary depending on environment, usage, and firmware version.
† All videos and photos on this page were taken in strict compliance with local laws and regulations.



1. Sold separately.

2. This function will be available in January 2022 through firmware updates.

3. Unobstructed, free of interference, and when FCC-compliant. Maximum flight range specification is a proxy for radio link strength and resilience. Always follow local rules and regulations and fly your drone within your visual line of sight unless otherwise permitted.

4. DJI is not responsible for permissions or information security related to third-party applications and does not provide any technical support for compatibility issues. If an installed third-party app prevents optimal use of your controller, it is suggested to remove the app or restore the controller to original factory settings.

5. Livestream function will be available at a later date.

6. Used with a USB charger of 15 V or higher output voltage.





Compatibility

DJI Mavic 3 Classic
DJI Mavic 3
DJI Mavic 3 Cine
DJI Mini 3 Pro
DJI Air 2S

NOT COMPATIBLE WITH MAVIC 3 ENTERPRISE SERIES (M3E, M3T, M3M)



Product Specifications

DJI RC Pro

General Specs

Battery:  Li-ion (5000 mAh @ 7.2 V)
Charging Type:  Recommended to be charged with USB charger at 12 V or 15 V
Rated Power:  12 W
Storage Capacity:  32GB internal + expandable storage via microSD card
Charging Time:  2 hours (with USB charger at 12 V) - 1.5 hours (with USB charger at 15 V)
Operating Time:  3 hours
Video Output Port:  Mini-HDMI port
Operating Temperature:  -10° to 40°C (14° to 104° F)
Storage Temperature Range:
Less than one month: -30° to 60° C (-22° to 140° F)
One to three months: -30° to 45° C (-22° to 113° F)
Three to six months: -30° to 35° C (-22° to 95° F)
More than six months: -30° to 25° C (-22° to 77° F)
Charging Temperature:  5° to 40° C (41° to 104° F)
Supported Aircraft Models [2]:  DJI Mavic 3, DJI Air 2S
GNSS:  GPS + Galileo + GLONASS
Dimensions:
183.27×137.41×47.6 mm (antennas folded, controllers not mounted)
183.27 x 203.35 x 59.84 mm (antennas unfolded, controllers mounted)
Weight: Approx. 680 g
Model:  RM510

Video Transmission

Video Transmission System:  O3+
Max Transmission Distance (unobstructed, free of interference):  15 km (FCC) - 8 km (CE/SRRC/MIC)
Operating Frequency [1]:  2.400-2.4835 GHz - 5.725-5.850 GHz
Antennas:  4 Antennas, 2T4R
Transmitter Power (EIRP):  2.4 GHz: ≤33 dBm (FCC); ≤20 dBm (CE/SRRC/MIC)
5.8 GHz: ≤33 dBm (FCC); ≤14 dBm (CE); ≤23 dBm (SRRC)

Wi-Fi

Protocol:  802.11a/g/n/ac/ax Support 2×2 MIMO Wi-Fi
Operating Frequency [1]:  2.400GHz-2.4835 GHz; 5.725-5.850 GHz
Transmitter Power (EIRP):  2.4 GHz: ≤26 dBm (FCC); ≤20 dBm (CE/SRRC/MIC)
5.8 GHz: ≤26 dBm (FCC/SRRC); ≤14 dBm (CE)

Bluetooth

Protocol:  Bluetooth 5.1
Operating Frequency:  2.400-2.4835 GHz
Transmitter Power (EIRP):  ≤8 dbm

Screen

Resolution:  1920×1080
Dimensions:  5.5 inches
Frame Rate:  60 fps
Brightness:  1000 nits
Touch Control:  10-point multi-touch

Storage

Supported SD Cards:  SanDisk Extreme PRO 64GB V30 A2 microSDXC
SanDisk High Endurance 64GB V30 microSDXC
SanDisk Extreme 128GB V30 A2 microSDXC
SanDisk Extreme 256GB V30 A2 microSDXC
SanDisk Extreme 512GB V30 A2 microSDXC
Lexar 667x 64GB V30 A2 microSDXC
Lexar High-Endurance 64GB V30 microSDXC
Lexar High-Endurance 128GB V30 microSDXC
Lexar 667x 256GB V30 A2 microSDXC
Lexar 512GB V30 A2 microSDXC Samsung EVO 64GB V30 microSDXC Samsung EVO Plus 128GB V30 microSDXC Samsung EVO Plus 256GB V30 microSDXC Samsung EVO Plus 512GB V30 microSDXC Kingston 128GB V30 microSDXC

In the box

DJI RC Pro × 1

USB 3.0 Type-C Cable × 1

WHY BUY FROM US?

By buying from Ferntech, you'll have the confidence that you are dealing directly with New Zealand's leading drone experts. Our staff are knowledgable drone pilots who offer expert advice, trusted support and superior specialist service. Only through us will you receive a full New Zealand warranty, phone and email support, and access to our certified Repairs Centre with DJI-qualified drone technicians. And we guarantee that we will have the best prices on the market — if not let us know and we will match any price (conditions apply).



Warranty Details

.

RC Pro

Compared with the DJI Smart Controller, what major upgrades does DJI RC Pro have?

Featuring a next-generation processor, DJI RC Pro is the newest high-performance remote controller platform with built-in screen. Compared with the DJI Smart Controller, the performance of the CPU and GPU of DJI RC Pro is increased by 4 times and 7 times respectively, with boosted system performance and lower power consumption, offering longer use duration and a smoother control experience. DJI RC Pro also features a comprehensively improved transmission system. It supports the brand-new O3+ with livestreaming at up to 1080p/60fps and a max transmission range of 15 km. 4G network communication is also enabled to enhance flight safety when used with the DJI Cellular Transmission Dongle. In addition, DJI RC Pro adopts the same control stick design of DJI FPV for more precise, responsive, and smooth operation.

What are the differences between the high-bright display of DJI RC Pro and a normal display?

DJI RC Pro provides brightness up to 1000 nits, showing clear details even under direct sunlight, making it an optimal tool for outdoor use. Normal phone screens, however, cannot provide a constant high bright display and will automatically decrease brightness in an outdoor environment.

What ports does DJI RC Pro have?

One mini-HDMI port (supports 4K video output), one microSD card slot, and one USB Type-C port (supports video output, external microSD card, and charging).

Does DJI RC Pro have a speaker and microphone?

DJI RC Pro has a built-in speaker and no microphone. For phone calls and recording, it supports external microphones through the USB-C port.

Does the DJI RC Pro have customizable buttons?

Yes. The C1, C2, C3, and the 5D button on DJI RC Pro can be customized in the DJI Fly app for more convenient control of the drone.

How can I update the DJI RC Pro system and the apps installed on it?

Apps can be updated through the system or the internet.

What is Outdoor mode?

In Outdoor mode, the image display will be automatically enhanced and optimized so that details are still clearly visible, even under direct sunlight.

Can I install third-party apps on DJI RC Pro?

Yes. You can download third-party apps through the built-in browser or install APK files from a microSD card. (DJI will not be liable for any permission or safety issues resulting from use of third-party apps. If an installed third-party app prevents optimal use of your controller, it is suggested to remove the app or restore the controller to original factory settings.)

Does DJI RC Pro support fast charging?

Yes, it supports mainstream fast-charging solutions. It takes 2 hours to fully charge DJI RC Pro with a 12V charger, and 1.5 hours with a 15V charger.

What is the operating time of DJI RC Pro?

3 hours or longer under normal operating conditions.

What aircraft does the DJI RC Pro support?

Currently, DJI RC Pro is compatible with DJI Mavic 3 and DJI Air 2S.
