DJI FPV Goggles V2

The DJI FPV Goggles V2 with DJI O3 image transmission features high definition, low latency, long-distance transmission, and strong anti-interference capabilities. The DJI FPV Goggles Battery in the box supports up to 110 minutes of flight when fully charged.

Highlights

1. High definition, low latency, strong immersion, long-distance transmission, and strong anti-interference capabilities.
2. Battery in the box supports up to 110 minutes of flight when fully charged.

Tips

Avoid exposing the inside of the goggles to direct sunlight.
Dual frequency is only available when used with the DJI FPV Drone. If used with DJI FPV Air Unit, only 5.8 GHz is supported. Due to local policies and regulations, the 5.8 GHz frequency band is currently unavailable in some countries, including (but not limited to) Japan, Russia, Israel, Ukraine, and Kazakhstan. Please use the 2.4 GHz frequency band when operating in these locations, and always check local rules and regulations before use, as they may change over time.
Always follow the local laws and regulations when using the goggles. VLOS is legally required in some regions and countries, and it is always recomended to use a spotter when maintaining VLOS is not possible.

Compatibility

DJI FPV Drone

DJI Air Unit

Product Specifications

DJI FPV Goggles V2
Weight: Approx. 420 g (headband and antennas included)
Dimensions: 184×122×110 mm (antennas excluded) <br>202×126×110 mm (antennas included)
Screen Size: 2-inches (×2)
Screen Refresh Rate: 144 Hz
Communication Frequency: 2.400-2.4835 GHz<br>5.725-5.850 GHz
Transmitter Power (EIRP): 2.400-2.4835 GHz<br>FCC: ≤ 28.5 dBm<br>CE: ≤ 20 dBm<br>SRRC: ≤ 20 dBm<br>MIC: ≤ 20 dBm<br><br>5.725-5.850 GHz<br>
FCC: ≤ 31.5 dBm<br>CE: ≤ 14 dBm<br>SRRC: ≤ 19 dBm
Communication Bandwidth: 40 MHz (Max.)
Live View Mode: Low-Latency Mode: 810p/120fps ≤ 28ms*<br>High-Quality Mode: 810p/60fps ≤ 40ms*<br>
* A 150° FOV is available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°.""
Max Video Bitrate: 50 Mbps
Transmission Range: 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
Video Format: MP4 (Video format: H.264)
Supported Video and Audio Playback Formats: MP4, MOV, MKV (Video format: H.264; Audio format:  AAC-LC, AAC-HE, AC-3, MP3）
Operating Temperature: 0° to 40° C (32° to 104° F)
Power Input: Dedicated DJI Goggles batteries or other 11.1.-25.2 V batteries.
FOV: 30° to 54°; Image size: 50-100%
Interpupillary Distance Range: 58-70 mm
Supported microSD: Cards microSD (up to 256 GB)

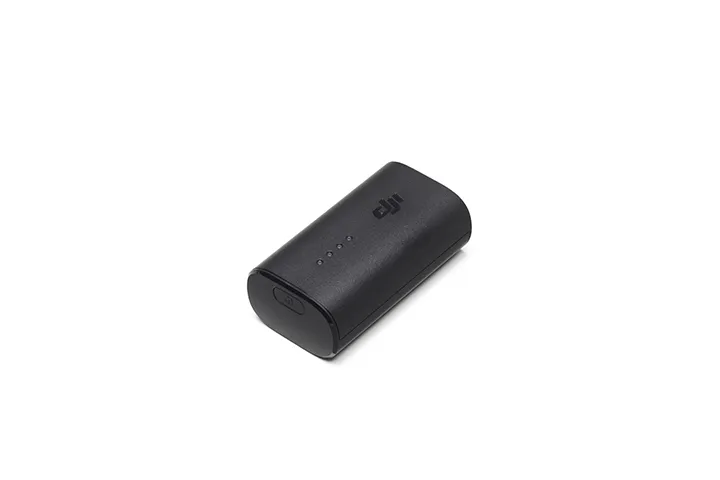

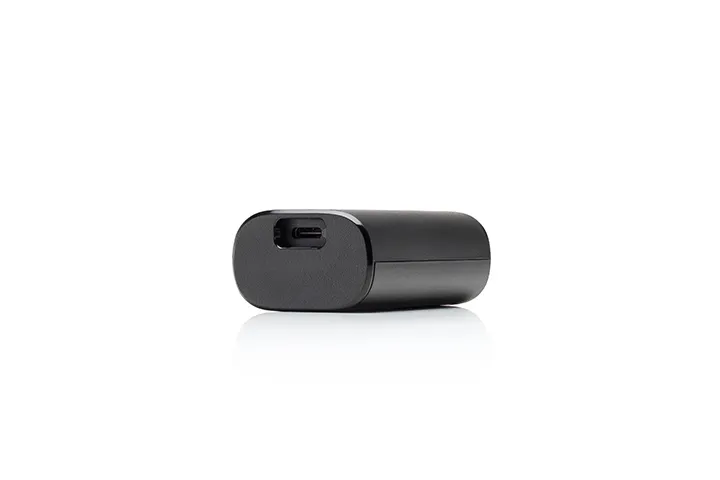

DJI FPV Goggles Battery
Capacity: 1800 mAh
Voltage: 9 V (Max.)
Type: LiPo 2S
Energy: 18 Wh
Charging Temperature: 0° to 45° C
Max Charging Power: 10 W
Battery Life: Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level)

In the box

DJI FPV Goggles V2 (inc. foam padding) ×1
DJI FPV Goggles Battery ×1
DJI FPV Goggles Power Cable (USB-C) ×1
DJI FPV Goggles Antenna (Dual Band) ×4
Headband ×1
USB-C cable ×1
Sleeve ×1

WHY BUY FROM US?

By buying from Ferntech, you'll have the confidence that you are dealing directly with New Zealand's leading drone experts. Our staff are knowledgable drone pilots who offer expert advice, trusted support and superior specialist service. Only through us will you receive a full New Zealand warranty, phone and email support, and access to our certified Repairs Centre with DJI-qualified drone technicians. And we guarantee that we will have the best prices on the market — if not let us know and we will match any price (conditions apply).



Warranty Details

Goggles

1. What is the difference between DJI FPV Goggles and DJI FPV Goggles V2?

The DJI FPV Goggles only support 5.8 GHz, whereas the DJI FPV Goggles V2 support both 2.4 and 5.8 GHz and can select the frequency automatically. In some areas, frequency use is restricted by law to only allow the use of 2.4 GHz.

2. What is the video transmission latency of the DJI FPV Goggles V2?

The latency between the camera capturing an image and displaying it on the goggles screen is lower than 28 ms in Smooth Mode and 40 ms in HD Mode.

3. What is the screen resolution of the DJI FPV Goggles V2?

Both screens are 1440×810.

4. What is the difference between recording with the DJI FPV Goggles V2 and with the camera on the aircraft?

The goggles only record transmitted footage in a resolution of 810p/60fps, and do not support RockSteady EIS; <br>
Shooting with the aircraft camera supports up to 4K/60fps and RockSteady EIS.

5. Do the DJI FPV Goggles V2 support screen recording?

No, the goggles only support the recording of transmitted footage (excluding OSD information).

6. Can the DJI FPV Goggles V2 be charged by third-party batteries?

The standard XT60 power cable supports charging with third-party batteries. The voltage input range is 11.1-25.2 V.
The USB-C cable can only be used with the battery of the goggles. Power banks or other third-party charging devices are not supported.

7. Can I charge my phone using the battery of the DJI FPV Goggles V2?

No.

8. How can I power on the battery of the DJI FPV Goggles V2?

Connect the goggles to the DJI FPV Goggles battery via power cable. Press once and then press and hold the power button to turn on or off. To avoid short circuits, do not power on the goggles when the goggles are not connected to the battery.

9. Do the DJI FPV Goggles V2 support audio transmission?

Yes, it can transmit the stereo sound of the aircraft in real time.

10. Can DJI FPV Goggles V2 connect to my smartphone?

Yes, when the goggles are connected to your smartphone, you can use the DJI Fly app to activate and update firmware for the aircraft, goggles, and remote controller. You can also playback or download the footage.

11. How can I connect the DJI FPV Goggles V2 connect to my smartphone?

You can connect the goggles with your smartphone via OTG, USB-C, and Lightning cables.
Please note that the goggles only support standard USB-C protocols and MFI-certified Lightning cables, and non-standard cables such as the Huawei fast-charging cable are not currently supported.



Goggle functions

1. Are the DJI FPV Goggles V2 compatible with other aircraft and remote controllers?

Check the latest firmware updates for any new information on aircraft or remote controller compatibility.

2. Can Audience mode be enabled by other goggles?

Check the latest firmware updates for any new information on goggle compatibility for Audience mode.

3. What should I do if the image distorts in the goggles display during flight?

Open the camera settings page and enable Camera Calibration and Distortion Correction.



Goggle adjustments

1. Can I adjust the interpupillary distance of the DJI FPV Goggles V2?

Yes, the interpupillary distance range is 58-70 mm.

2. Can the DJI FPV Goggles V2 correct refractive errors?

No. However, you can purchase corrective lenses and attach them to the DJI FPV Goggles V2.

3. Is there only one size for the DJI FPV Goggles V2 foam padding? Can I detach the foam padding?

Currently, the DJI FPV Goggles V2 foam padding comes in two sizes. It is not recommended to detach it too often.
However, if the foam padding has become damaged, you can purchase a new one at the DJI Online Store.

4. What can I do if the screens or lenses of the DJI FPV Goggles V2 fog up?

Changes in temperature and humidity may cause the screens or the lenses to fog up, which is normal. Avoid using the DJI FPV Goggles V2 in environments where temperature and humidity are extreme or tend to vary significantly.
If the screens or the lenses have fogged up, place the goggles in an indoor environment with a normal temperature and wait until the fog is gone. Keep the DJI FPV Goggles V2 away from hot and humid environments.

5. What if I feel dizzy while flying with the DJI FPV Goggles V2 on?

If you feel dizzy or disoriented during flight, users are recommended to land safely and take off the goggles. If you feel intense discomfort, please seek medical help.
