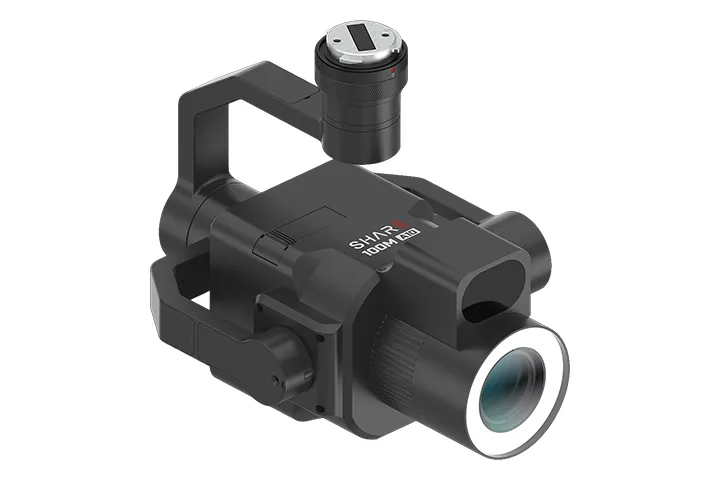

Share 100M A10

Features

Tailored for Industrial Inspection

The SHARE 100M A10, equipped with the IMX461 medium-format image sensor, boasts 102 milion efective pixels and an autofocus lens with integrated LiDAR and ring fill lighting, making it ideal for inspection tasks.

110mm Autofocus Lens

With a 110mm focal length, the SHARE 100M A10 features an ultrasonic motor-driven autofocus system for faster and more precise focusing.

7-Element Lens Design

The lens structure includes 7 elements with glass aspherical lenses, ensuring high imaging sharpness and near-zero distortion for stable image quality.

Focus-Assisting LiDAR

The LiDAR provides centimeter-level distance measurement accuracy within a 10-meter range at a frame rate o f 100Hz, providing rapid response and precise focusing assistance.

0.1mm Resolution Image Capture

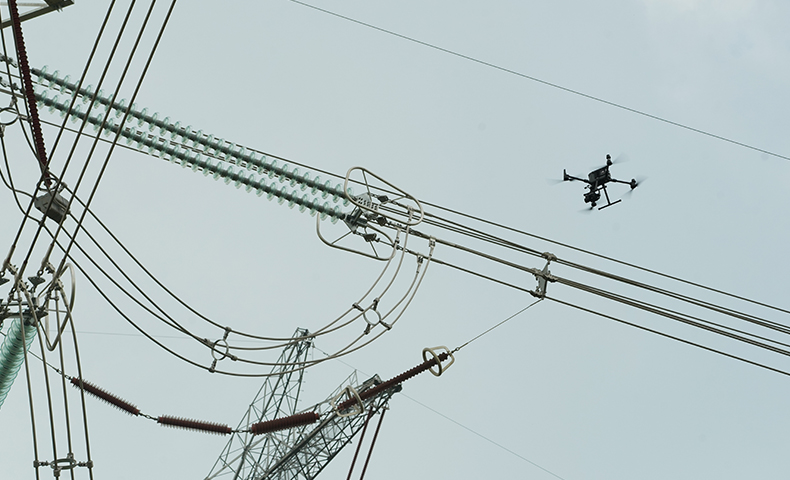

SHARE 100M A10 supports a focusing range from 3 meters to infinity. At the minimum focusing distance, it captures images with 0.1mm resolution, ideal for complex inspection tasks like bridges and buildings.

Supports Deep Customization

The camera includes control and parameter adjustment interfaces, enabling direct trigger photo capture via electrical signals. Combined with inspection software, it supports customized inspection solutions to meet various application needs.

Front Ring Fill Lighting

The built-in ring fill lighting adjusts brightness based on ambient light conditions, providing supplementary lighting in low-light environments to ensure proper exposure.

Product Specifications

Dimension & Weight: 161*184*236 mm; 1270g

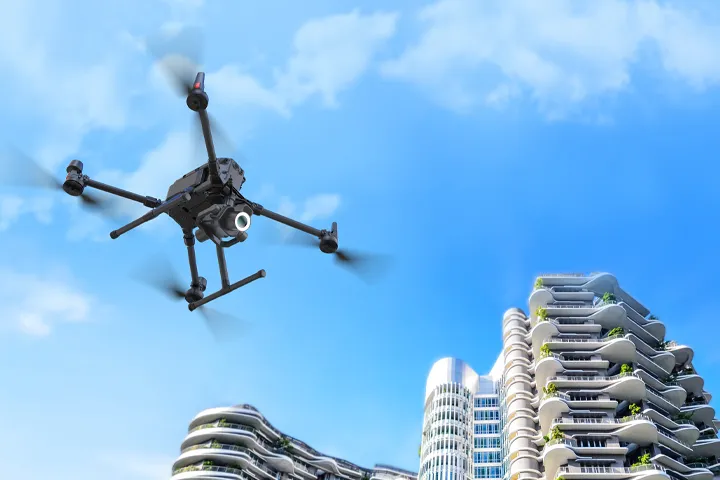

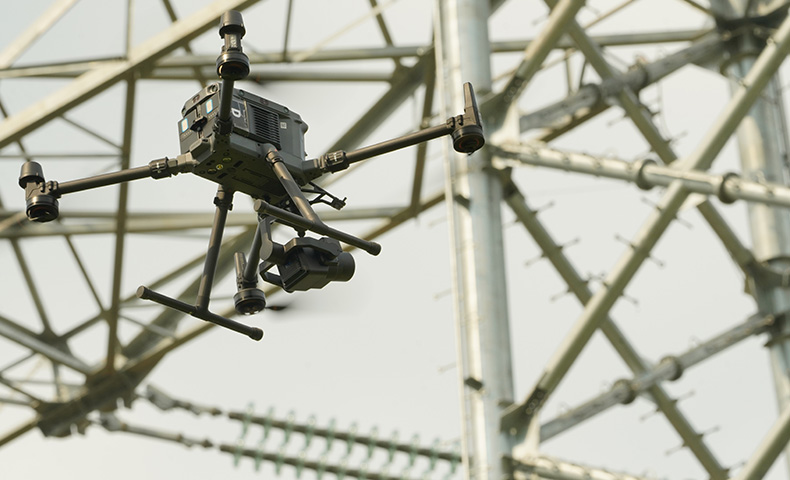

Supported Aircraft: DJI M350 RTK/DJI M400, multiple fixed-wing and multi-rotor drones
Camera Interface: DJI Skyport, Universal Interface
Efective Pixels: 102 milion pixels
Weight: 1100g (with gimbal)
Sensor Specifications: Size: 43.8*32.9mm; Pixel Size: 3.76um
Lens Focal Length: 110mm
Autofocus Range: 3m to infinity
Parameter Adjustment: Adjustable ISO, white balance, colour mode, shutter speed and settings via bluetooth
Image Format: JPG, JPG & DNG, DNG
Video: Format: .MP4; Resolutino 4K(3840x2160), 30fps
Storage Capacity: Dual 256GB integrated storage modules with Type-C interface
Data Transfer Speed: Over 300M/S

In the box

Share 100M A10 × 1
