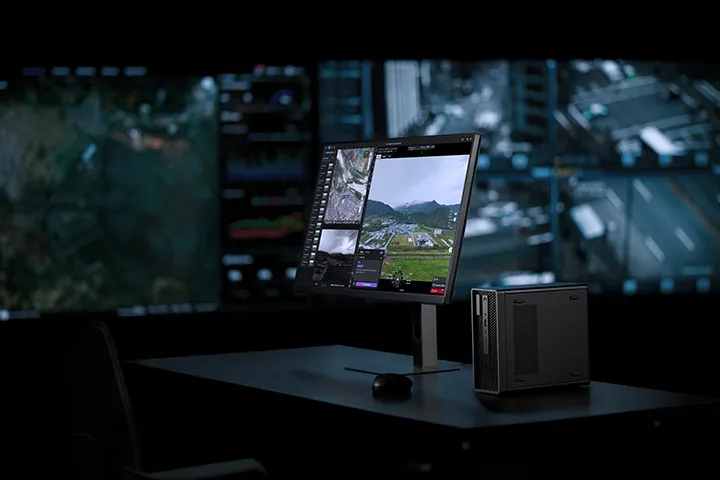

DJI FlightHub 2 On-Premises All In One

Features

DJI FlightHub 2 On-Premises provides the full FlightHub 2 experience installed on your own infrastructure. You get the same mission planning, live telemetry, data management and fleet coordination tools found in the cloud version, while keeping all data inside your network for tighter control and compliance.

Key benefits

• Full FlightHub 2 functionality: All major FlightHub 2 capabilities available locally so you retain operational features without using public cloud services.
• Data sovereignty and security: Host maps, flight logs, video and sensor data on-premises to meet strict governance, regulatory or client requirements.
• Custom integration: Designed to integrate with your existing systems, APIs and third-party tools to support tailored workflows.
• Enterprise scale: Supports multi-site deployments, multiple pilots and large fleets for industries such as public safety, utilities, construction and energy.

Ideal use cases

• Organisations with regulatory or contractual rules that require data to remain on-site.
• Large operators needing centralised mission oversight, tasking and post-flight data management.
• Teams that need to integrate drone data into GIS, asset management or security platforms.

Core features

• Real-time telemetry and live video streaming for situational awareness
• Mission planning, automated tasking and route replay
• Centralised fleet and pilot management with role-based access control
• Secure on-premises data storage and export capabilities
• APIs and connectors for integration with enterprise systems
• Scalable architecture to support multiple sites and users

Why choose FlightHub 2 On-Premises

FlightHub 2 On-Premises combines DJI's mature drone operations platform with the control and auditability organisations often require. If keeping data inside your IT perimeter, meeting strict compliance rules or integrating with internal systems is important, this deployment option delivers operational capability and governance in one package.

Product Specifications

AIO - General

Product Name: DJI FlightHub 2 AIO
Weight: Main Unit: 3.008 kg
Power Supply: 1.05 kg
Dimensions: 223×87×202 mm (L×W×H)
Software System: Pre-installed with DJI FlightHub 2 On-Premises

AIO - Hardware

Processor: Intel® Core™ Ultra 7 Processor 265
Memory: 64GB
Storage: 3 × 2TB SSDs: 1 for system, 2 for data (RAID 1 data mirroring)
Graphics Card: NVIDIA RTX™ 2000 Ada
Front Input/Output: USB-A: 1 × USB 3.2 Gen 2 (10 Gbps, 4.5 W)
USB-C: 2 × USB 3.2 Gen 2 (20 Gbps, 15 W)
Audio: 1 × Combo audio/microphone jack (3.5mm)

^{* Actual USB throughput will vary depending on the type and quantity of USB devices used.
** USB-C ports are capable of Display output.}
Rear Input/Output: USB-A: 4 × USB 3.2 Gen 2 (10 Gbps, 4.5 W)
DisplayPort: 3 × DP 1.4
Ethernet: 1 × 1 GbE (RJ45)

^{* Actual USB throughput will vary depending on the type and quantity of USB devices used.
** Rear USB Port 4 supports smart power on function.}
Onboard Ethernet: Controller: Intel® Ethernet Connection I219-LM
Port: 1 × RJ45
Speed: 10/100/1000 Mbps adaptive
Functions: PXE, ASF, WOL, Jumbo Frames, Teaming
Management: Intel® Active Management Technology (AMT) 16.x
Expansion Ethernet: Wired:
4 × 10/100/1000Mbps adaptive Ethernet ports (RJ45)

Wireless:
IEEE 802.11 be
IEEE 802.11 a/b/d/e/g/h/i/k/n/r/u/v/w/ac/ax

AIO - Power

Rated Power: 330 W
Operating Voltage Range: 100-240 V
Rated Voltage Range: AC 90-264 V
Rated Input Current: 4.5 A

AIO - Operating Environment

Operating Temperature: Recommended Operating Temperature: 10° to 35° C (50° to 95° F)
Maximum Operating Temperature: -33° to 63° C (-27.4° to 145.4° F), up to 4 hours of continuous stable operation
Storage Temperature: In Original Shipping Carton: -40° to 60° C (-40° to 140° F)
Without Carton: -10° to 60° C (14° to 140° F)
Operating Humidity: 10% to 90%
Vibration: Package Vibration:
Three axes in use orientation (X, Y & Z-axis), 1.04 Grms, 2-200 Hz, 15 min/axis, random, packaged for shipment

Operating Vibration:
0.27 Grms, 5-500 Hz, 30 min/axis, X, Y, Z axes

Non-Operating Vibration:
1.04 Grms, 2-200 Hz, 15 min/face, six faces

AIO - Accessories

Power Cable: China: China, Australia, New Zealand, etc.
EU: Most European countries (except Italy and Switzerland), South Korea, etc.
US: USA, Canada, Japan, Chinese Taiwan, etc.
UK: UK, Ireland, UAE, Singapore, Malaysia, Chinese Hong Kong, Chinese Macau, etc.
Keyboard: 1 unit
Mouse: 1 unit

AIO - Regulations & Standards

Certification Marks: USA/Canada - FCC/IC
USA, Canada - cTUVus
Japan - VCCI
Chinese Taiwan - BSMI
Korea - KC
Australia/New Zealand - RCM
Germany - TUV-GS
General - IEC60950-1&IEC62368 CB Report/Certificate
UAE - EQM
Kuwait - KUCAS
China - CCC Mark/SRRC
South Africa - SABS
Belarus/Kazakhstan/Kyrgyzstan/Armenia - EAC
Morocco - CM
Mexico - NOM
Serbia - KVALITET
India - BIS
Indonesia - SDPPI
Malaysia - SIRIM
Philippines - NTC
EU - RED 3.3

In the box

WHY BUY FROM US?

By buying from Ferntech, you'll have the confidence that you are dealing directly with New Zealand's leading drone experts. Our staff are knowledgable drone pilots who offer expert advice, trusted support and superior specialist service. Only through us will you receive a full New Zealand warranty, phone and email support, and access to our certified Repairs Centre with DJI-qualified drone technicians. And we guarantee that we will have the best prices on the market — if not let us know and we will match any price (conditions apply).

Warranty Details

What is the difference between DJI FlightHub 2 AIO and traditional server + software deployments?
DJI FlightHub 2 AIO is ready out of the box, greatly reducing the hardware and software installation and deployment costs.

What does "up to 20 devices" mean in "supported device quantity"?
Based on its hardware capabilities, each DJI FlightHub 2 AIO can connect and support up to 20 devices (including DJI Enterprise drones and DJI Docks) simultaneously.

How is power supplied for mobile deployments?
Use a portable AC power supply rated for 100-240V output.

Does DJI FlightHub 2 include a built-in Multimodal Large Language Model (LLM)?
DJI FlightHub 2 AIO does not include a built-in multimodal LLM, but locally deployed multimodal LLMs can be integrated to enable related functions.

What is the peak CPU/memory usage when processing data from 20 devices at once?
Approximately 80%.

Does storage backup affect business operations?
No.

How can I upgrade the Device Expansion Package (+ 5 Devices)? What is the cost?
Contact your local dealer to purchase an upgrade package and complete the upgrade via DJI Developer.

Can the data storage location be customized (for example, local storage only)?
Yes.

How can data be thoroughly deleted when the device is decommissioned?
You can access the system and format the SSD to permanently erase all data.
