Micasense RedEdge-P

Contact for Pricing
SKU: MSREP

The ultimate solution for high-res calibrated RGB and multispectral data. Now enabling two captures per second for more efficient faster flights.


FREE SHIPPING ON ALL ORDERS OVER $300

All orders placed before 2pm will be delivered the next day on overnight track and trace courier. Larger items will be sent on a two day service to the South Island. Please note rural addresses (RD) can take 1-3 days longer.


Features



Introducing RedEdge-P: The ultimate solution for high-res RGB and multispectral data

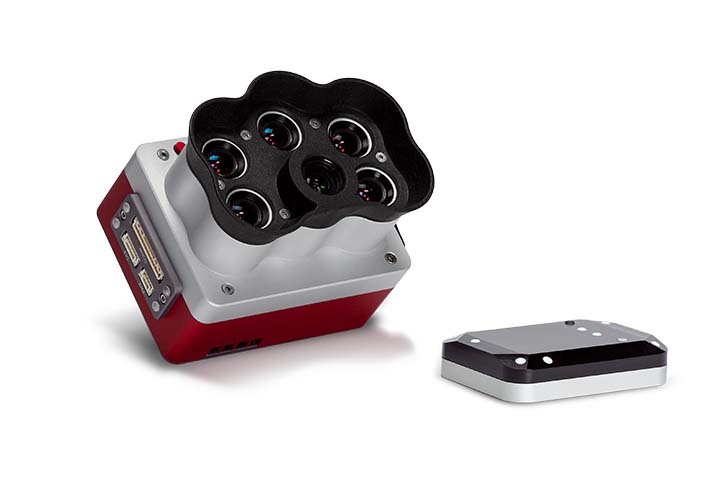

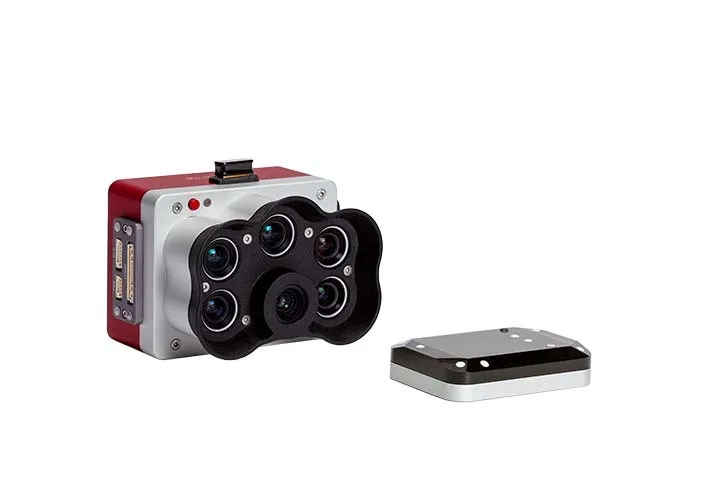

The RedEdge-P is the rugged, high-quality, powerful multispectral sensor you’ve come to trust, now with a high-resolution panchromatic band for pan-sharpened output resolutions of 2cm (at 60m) - twice the ground resolution of the industry-standard RedEdge-MX. It is a single camera solution that captures calibrated high-resolution multispectral and RGB imagery, with an optimized FOV and capture rate for efficient flights.

This solution seamlessly integrates a high-resolution all-color imager with synchronized multispectral imagers to enable pixel-aligned outputs at previously unattainable resolutions while maintaining the efficiency and reliability of the RedEdge legacy. Raw data from RedEdge-P is open for processing using the standard household softwares in the industry.


  • Featuring a high-resolution panchromatic band and five spectral bands, RedEdge-P gives you calibrated high-resolution multispectral and RGB imagery for comprehensive, season-long plant canopy analysis over larger acreages.

  • The panchromatic sensor allows us to pan-sharpen the multispectral imagery, ultimately increasing the spatial resolution. This pan-sharpening technique has historically been used in satellites—MicaSense has implemented this technology at the drone level

  • RedEdge-P now comes with a professional removable storage standard in CFexpress, enabling two captures per second for more efficient flights.







Product Specifications

Weight: 300g (10.6 oz.) RedEdge-P + DLS 2
Dimensions: 8.2 x 6.2 x 5.4 cm (3.2in x 2.4in x 2.1in)
External power: 7.0 V - 25.2 V
Spectral bands: Blue, green, red, red edge, near-IR (global shutter, narrowband)
Wavelength (nm): Blue (475 nm center, 32 nm bandwidth), green (560 nm center, 27 nm bandwidth), red (668 nm center, 14 nm bandwidth), red edge (717 nm center, 12 nm bandwidth), near-IR (842 nm center, 57 nm bandwidth)
RGB output: 5.1 MP (global shutter, aligned with all bands)*
Ground sample distance:

  • 7.7cm per pixel (per MS band) at 120m AGL
  • 3.98cm per pixel (panchromatic band) at 120m AGL

Capture rate: 2-3 captures per second raw DNG
Interfaces: 4 GPIO: Trigger input, top of frame out, 1 PPS out, host button. USB 2.0 port for WiFi, serial, 10/100/1000 ethernet, and CF Express Storage.
Field of view:

  • 49.6° HFOV x 38.3° VFOV (MS)
  • 44.5° HFOV x 37.7° VFOV (PAN)

Triggering options: Timer mode, overlap mode, external trigger mode (PWM, GPIO, serial and Ethernet options), manual capture mode
Heat: 0-40C ambient (no airflow); 0-50C ambient with airflow >0.5m/s

* with appropriate post-processing
Note: Specifications are subject to change without notice

In the box

RedEdge-P sensor × 1
DLS 2 with embedded GPS × 1
Calibrated Reflectance Panel (CRP 2) × 1
USB WiFi dongle × 1
Lens cover × 1
Necessary integration cables × 1
Assorted mounting hardware × 1
CFexpress card × 1
CFexpress card reader × 1
Hard Carrying Case × 1
Quick Start Guide × 1
