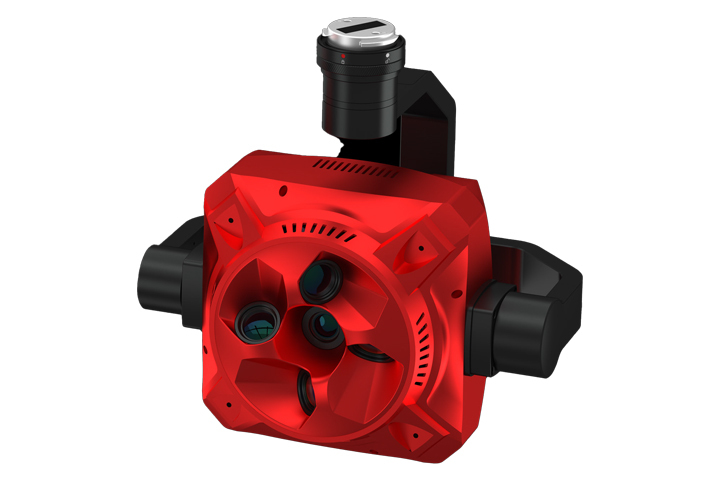

Share UAV 203S Pro - Five-lenses Oblique Camera

Contact for Pricing
SKU: SHARE203SPRO

225MP Five-lenses Oblique Mapping Camera


  • Free Shipping on all orders over $300
  • Order before 2.00pm for same day dispatch
  • Click & collect from our Auckland store
  • Local warranty, support and repairs

Features

The first choice for urban high-drop scenes

SHARE 203S PRO has a flight height of 272 meters at the required 3 cm resolution for urban 3D projects, ensuring safety flight height for operations.



The high-efficiency choice for aerial survey of large urban areas

Equipped with aerial plug interface as standard, adaptable to fixed-wing to launch urban large-area data collection. The operating altitude is 454 meters, corresponding 5cm ground resolution.



Three-axis gimbal support

SHARE UAV proficiency gimbal technology to maintain stability in pitch, roll and yaw. Operating at 15 m/s, the camera remains perpendicular to the ground



Individual white balance calibration

The 5-view angles perform independent white balance calibration to ensure colour accuracy and consistency of photos.



Switchable 5-view image transmission monitoring

Monitor the working status of the camera and switchable 5-view image transmission. Automatically adjust the Bitstream based on the distance to ensure visual clarity.



Parameter customisation

With the self-developed full-frame module, adjustable shutter speed, ISO, white balance, colour mode through the pilot, WeChat applet, ground station, etc. Effectively extend the operating time and broaden the application scenarios.



TimeSync 2.0 Technique

TimeSync 2.0 time synchronisation algorithm is incorporated deeply to realise microsecond-level time synchronisation of flight control, single-view camera, gimbal and RTK, simultaneous trigger five cameras, instantly calculate high precision POS location and attitude information, greatly improving the precision of GCPs free.



Intelligent Flight Sortie Management

Each flight sortie data is stored independently. The photos are automatically arranged according to the sortie and perspective naming when collecting data. Data management is easier without the need to rename again.



Real-time offset calculation

The camera is equipped with a built-in position pose offset algorithm, which accurately calculates the position pose to each view during operation and writes the photo in real-time. No post-processing is required.



600M/S Data Copying Speed

Users can read the data just by a type-c cable without connecting to the drone. The copying speed of 600 M/s makes the workflow more efficient.



1280G storage module - Large capacity to ensure long time operation and support hot-swapping
SHARE Colour Screen - Checking camera status in strong light
CNC Camera Body - Rapid heat dissipation and impact-resistant lightweight aerospace aluminium alloy can meet most payload weight requirements of drones and improve operating time.

Product Specifications

Size: 130*130*99.5mm;182.5*203*194.6mm (with gimbal)
Weight: 2830g ~1280g (with gimbal)
IP Grade: IP5X
Support UAV Models: DJIM300 RTKother fixed- wing and multi-rotor platform
Power Supply: External DC 12-50V
Camera Interface: DJI Skyport Interface &Common Interface
Effective Pixels: Single lens ≥ 45 mp, total 225 m
Sensor: Sensor Size: 36*24mm(Full Frame);Pixel Size: 4.4mm 8192*5460px
Image Size: 8192*5460px
Data Storage: Photo/POS file with GPS information and camera parameter information
Focal Lens: Oblique: 56mm, normal incidence: 40mm
Oblique Angle: 45 Degree
ISO Range: 50-200;50-400;50-640;50-800;50-1000;50-1600
Shutter Speed: 1/500,1/640,1/800,1/1000,1/1250
Shutter Life: S-GS global shutter, 1 million times shutter life
Aperture Size: Fixed F5.6
Storage Capacity: The data storage module is pluggable and removable with 1280GB capacity
Image transmission: Switchable 5-view image transmission
Parameter Adjustment: Support modifying ISO, white balance,color mode, shutter speed and other parameters; Support modifying the parameters by DJI Pilot
Data Copying: Copying data by data reading module, the copying speed can reach 600M/s
Operating Mode: Flight control trigger/isometric trigger /isochronous trigger
Stable System: 3-axis gimbal (Pitch, roll, yaw)
Installation Method: Integrated quick-release interface
Gimbal Rotating Range: Pitch -120° -+45°;Roll: ‡25°; Yaw: ‡160°

In the box

Share UAV 203S Pro - Five-lenses Oblique Camera × 1
