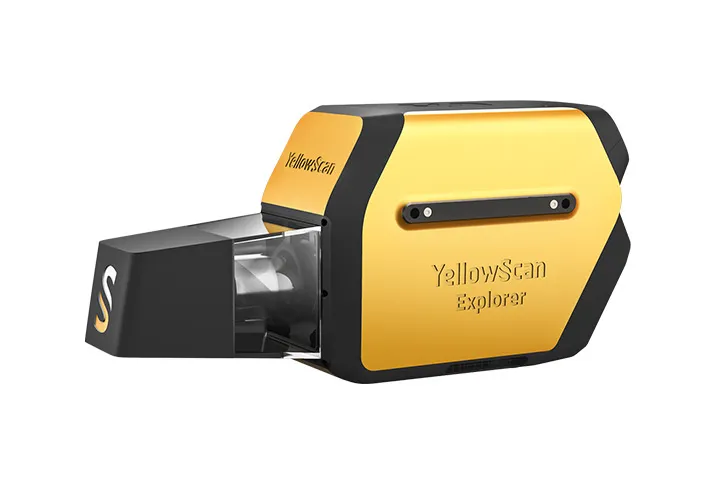

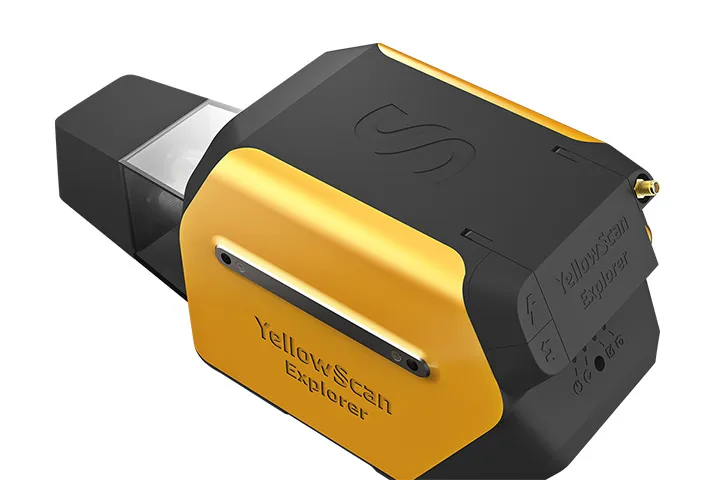

YellowScan Explorer

Contact for Pricing
SKU: YEXPLORER

The new YellowScan Explorer can be mounted on a light manned aircraft or switched to different types of UAV platforms.


Sold Out - Backorder Available
  • Free Shipping on all orders over $300
  • Order before 2.00pm for same day dispatch
  • Click & collect from our Auckland store
  • Local warranty, support and repairs





Features

The new YellowScan Explorer can be mounted on a light manned aircraft or switched to different types of UAV platforms.

The YellowScan Explorer is the first LiDAR that can be mounted on a light manned aircraft or helicopter and be switched to a UAV platform like the DJI M300. This versality allows the end user to tackle a wide range of projects with the proven ease-of-use of YellowScan’s UAV LiDAR solutions.



Key differentiators
Longest range
Compact & lightweight
Multi-platform

Technologies inside
Co-developped Laser Scanner
Applanix APX-20 IMU

Integrations
Manned aircraft
Multirotor UAV
Fixed-wing UAV

Product Specifications

Precision (1): 2.6cm
Accuracy (2): 2.2cm
Echoes per shot: Up to 5
Laser wavelength: 1556nm
Range: Up to 600m
GNSS-Inertial solution: Applanix APX-20UAV
Scanner field of view: 360°
Shots per second: Up to 500k
Scanning frenquency: 165 Hz
Weight batt. incl.: 2.6kg (5.7lbs)
Weight batt. excl.: 2.3kg (5.1lbs)
Size: L32.8cm x W12.2cm x H15.6cm
Autonomy: 1.3 hours typ.
Power consumption: 50W
Operating temperature: -20 to +40°C

(1) Precision is considered as the mean value of absolute elevation differences between 2 flight lines recorded in opposite directions over a nadir-located 40 m² hard surface area. Here, precision was obtained by averaging the result from 3 flight levels @60, 90 and 120 m AGL.

(2) Accuracy is considered as the RMSE value of the elevation differences between targets and lidar points extracted from 2 flight lines recorded in opposite directions. Here, accuracy was obtained by averaging the accuracy from 3 flight levels @ 60, 90 and 120 m AGL. Targets are located within a 40 m wide corridor centered along the flight line axis.

In the box

Hardware

YellowScan Explorer × 1
Charger × 1
Batteries  × 2
GNSS antenna and cable × 1
USB flash drives × 2
Rugged pelicase × 1
Documentation × 1

Software

Applanix POSPac UAV
YellowScan CloudStation

Services

Worldwide support including 1st year unlimited support
Boresight calibration certificate
1-year warranty
In-person or online training
