YellowScan Voyager

Contact for Pricing
SKU: YSVOYAGER

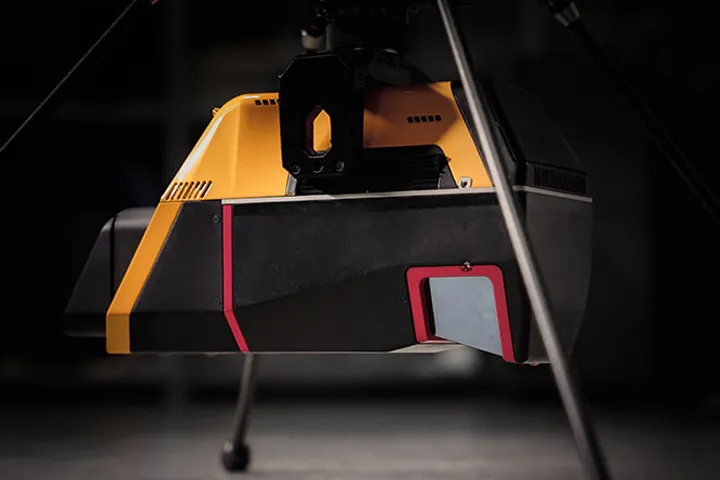

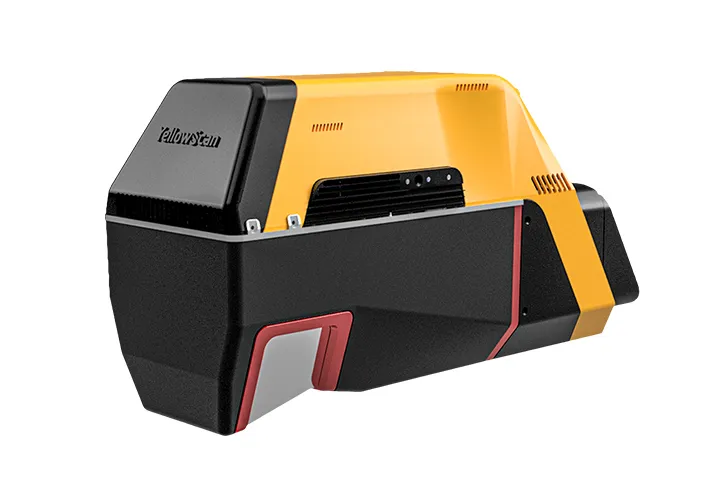

The YellowScan Voyager is a powerful solution for both manned and unmanned aircrafts.


Sold Out - Backorder Available
  • Free Shipping on all orders over $300
  • Order before 2.00pm for same day dispatch
  • Click & collect from our Auckland store
  • Local warranty, support and repairs





Features



The YellowScan Voyager is a powerful solution for both manned and unmanned aircrafts.

The laser scanner’s specs can be personalized to fit your different project and platform needs.



With its laser scanner’s wide field of view, the entirety of the points are oriented towards the ground, meaning no loss of points.

This also means 1.5 million points per second will be usable, which would not be the case with a 360° scanner.



The YellowScan Voyager’s detection and processing of up to 15 target echoes per laser pulse allows for unparalleled vegetation penetration.

Its extremely fast data acquisition rate of up to 1800 kHz, makes this solution the best option for projects requiring the highest point density.



Combined with YellowScan’s full suite of software solutions to easily extract, process, merge, and colorize your pointcloud data.

We offer our users a highly accurate set of tools to also meet the needs of a wide variety of industries.



Key differentiators
1.5 million pts/second
Up to 15 echoes
Multi-platform

Technologies inside
RIEGL VUX-120 laser scanner
Applanix AP+ 50 AIR
or Applanix AP+ 30 AIR

Integrations
Manned aircraft
Multirotor UAV
Fixed-wing UAV

Product Specifications

Precision (1) (3): 0.5cm
Accuracy (2) (3): 1cm
Laser scanner: RIEGL VUX-120
Laser Pulse Repetition Rate: Up to 1800 kHz
Echoes per shot: Up to 15
Wavelength: Near infrared
Range: Up to 760 m
Scanner field of view: 100°
GNSS-Inertial solution: Applanix AP+ 30 AIR or AP+ 50 AIR
Size: L 36.9 x W 11.7 x H 18.3 cm
Weight batt. excl.: 3.5 kg (7.7 lbs)
Autonomy: 1 hours typ.
Power consumption: 55 W
Operating temperature: -10 to +40 °C



(1) Precision, also called reproducibility or repeatability, is the degree to which further measurements show the same result.
(2) Accuracy is the degree of conformity of a measured quantity to its actual (true) value.
(3) One sigma @ 150 m range under RIEGL test conditions.



In the box

Hardware

YellowScan Voyager × 1
Charger × 1
Batteries  × 2
GNSS antenna and cable × 1
USB flash drives × 2
Rugged pelicase × 1
Documentation × 1

Software

Applanix POSPac UAV
YellowScan CloudStation

Services

Worldwide support including 1st year unlimited support
Boresight calibration certificate
1-year warranty
In-person or online training
