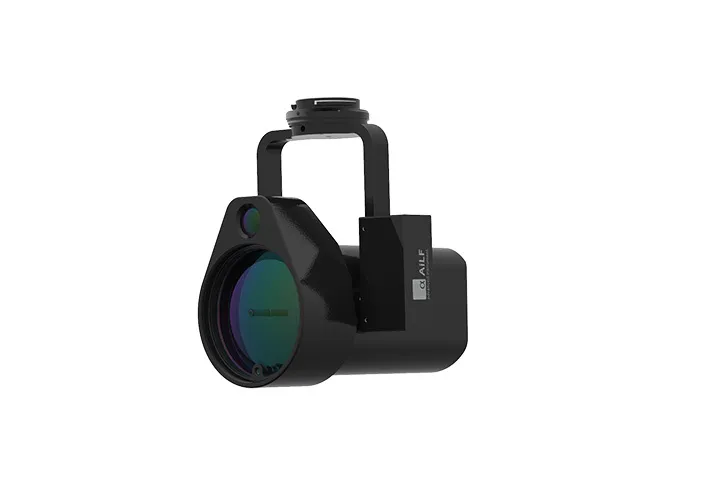

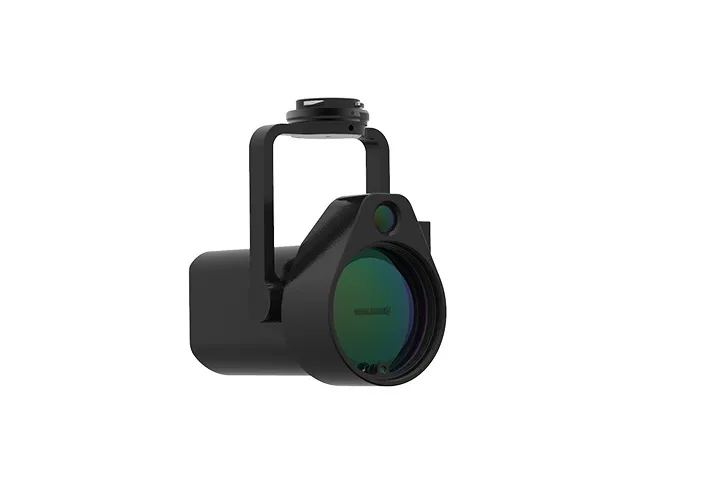

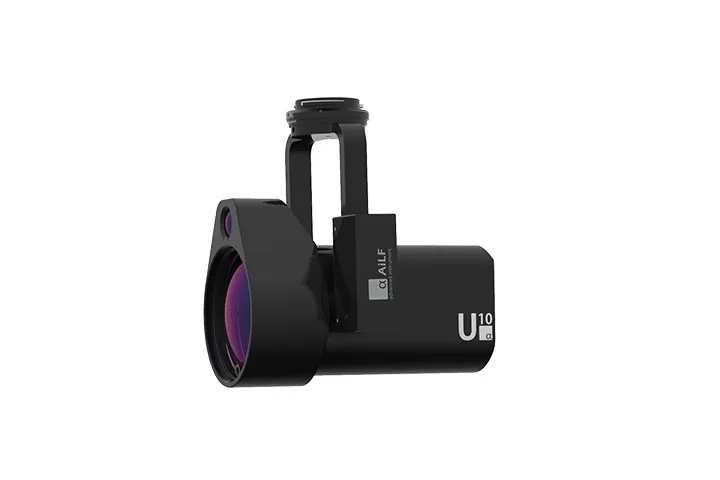

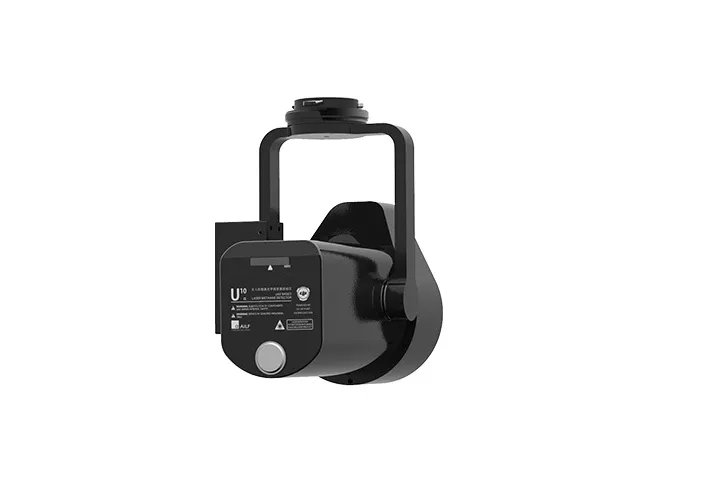

DJI U10 UAV Based Laser Methane Leakage Detector

Contact for Pricing
SKU: U10

The DJI U10 is a light-weight, high-sensitivity gas detector based on Tunable Diode Laser Absorption Spectroscopy (TDLAS), which enables rapid identification of methane from up to 100 m away, or at a concentration as a low as 5ppm.m.

FREE SHIPPING ON ALL ORDERS OVER $300

All orders placed before 2pm will be delivered the next day on overnight track and trace courier. Larger items will be sent on a two day service to the South Island. Please note rural addresses (RD) can take 1-3 days longer.


Features

Detection Target

Max Detection Distance

Response Time

Stationary Detection Limit

Detection Laser

Sampling Rate

CH4

Up to 100 m

25 ms 5ppmm Class IIIR 500KHz

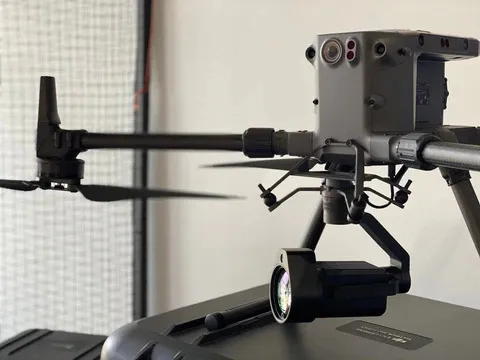

The DJI U10 is a light-weight, high-sensitivity gas detector based on Tunable Diode Laser Absorption  Spectroscopy (TDLAS), which enables rapid identification of methane from up to 100 m away, or at a concentration as a low as 5ppm.m. Powered by DJI Skyport, the U10 can be integrated with M200 series V1 & V2 platforms.



Accurate Results from Afar

Get real-time readings on the concentration of methane from up to 100 m away, adjust the pitch of the gimbal to pinpoint gas leaks in dangerous or hard-to-reach areas while keeping personnel safe.



Visualize Workflows

The high sensitivity allows detection at a concentration as low as 5ppm. Receive concentration data in just 25 ms, so you can make decisions quickly. Gain an aerial overview of the suspected leakage site through the 720p visual camera.



Automated Workflows

Plan flight missions and view flight paths monitor gas concentration levels and historical trends in real-time, and flag specific points along the flight route for abnormalities, and generate inspection reports – all through the α-ONE iOS application.



Applications

Critical Facility Inspection

Use DJI’s leading drone platforms equipped with the U10 to inspect and maintain facilities like Liquid Natural Gas plants, gas storage tanks, and gas pipelines in areas such that are difficult for human operators to access, such as mountains or rivers. With the U10, users can detect and monitor methane leakages accurately to make informed response decisions quickly.



Supported Products

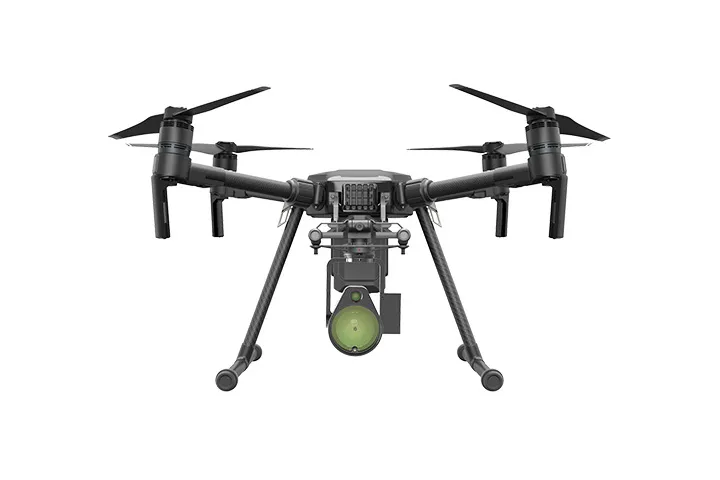

DJI Matrice 200 Series, Matrice 200 Series V2
Supports the use of both the U10 and the Zenmuse XT2, Zenmuse Z30, and Zenmuse
X5S on the M210, M210 V2, M210 RTK, M210 RTK V2

Product Specifications

General

Method of Detection: TDLAS
Stationary Detection Limit: 5ppmm
Response Time: 25 ms (0.025s)
Sampling Rate: 500KHz
Detection Concentration Range: 0~50,000 ppmm
Max Detection Distance: 100 m
Camera: Video at 720 p
Detection Target: Methane CH4
Detection Laser: Class IIIR
Operating Temperature: -20 ~ 50°C
Operating Humidity: <90%RH, no condensation
Size: 155 x 90 x 100 mm
Weight: 534g







In the box

U10 x 1


WHY BUY FROM US?

By buying from Ferntech, you'll have the confidence that you are dealing directly with New Zealand's leading drone experts. Our staff are knowledgable drone pilots who offer expert advice, trusted support and superior specialist service. Only through us will you receive a full New Zealand warranty, phone and email support, and access to our certified Repairs Centre with DJI-qualified drone technicians. And we guarantee that we will have the best prices on the market — if not let us know and we will match any price (conditions apply).



Warranty Details

Standard warranty

U10


Which flight platforms can U10 suited for?

U10 can be equipped with M200 series and M200 V2 series.


When using the M210, can U10 mount the HD camera at the same time? How to
install?

U10 can be installed at the I position of the M210, and the Z30 can be installed at the
II position.


What software is used to work with U10?

Search for &quot;Alpha ONE&quot; in APP STORE, download and install it to use.


Does U10 only detect methane? Is it also detectable for other combustible gases?

Only methane is detected. The working principle of U10 is Tunable Diode Laser
Absorption Spectroscopy (TDLAS) , which is not interfered by other gases.
