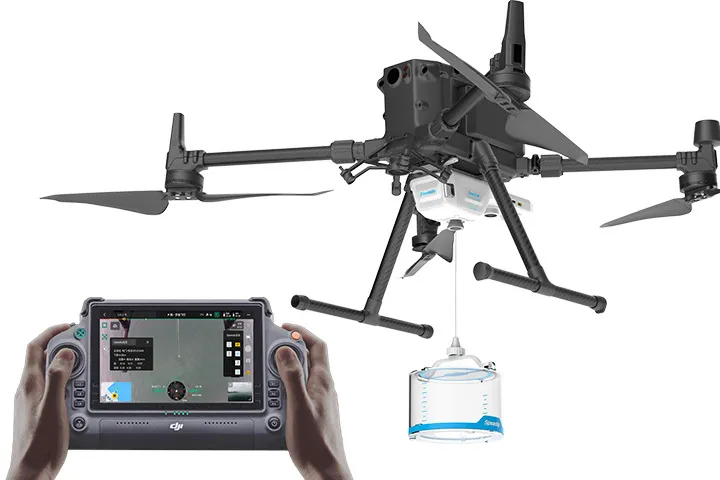

Drone-based Smart Water Sampling System (Speedip V2)



Features

Say Goodbye to Rope Tangling
Say Hello to Fully Autonomous Waypoint Mission
Seamless Integration with DJI M350RTK/M300MRTK

Fully Autonomous Waypoint Water Sampling Mission
Speedip V2 supports fully autonomous water sampling mission using DJI Pilot's Waypoint Function Take-off -> Fly to target location -> Sample at designated depth -> Return and land. Making routine water sampling easier than never before.

Built-in Downward Facing Camera
Starlight level performance, better situational awareness.

Rope Tangling Detection Mechanism
Automatically stops and warns the operator when the rope is about to tangle, minimising the possibility of irreversible tangling.

Emergency Releasing Function
Cuts the rope to free up the UAV to minimise loss when the container gets trapped.

Built-in High-resolution mm-wave Radar
1mm ultra-high resolution, accurately measuring water distance and container depth.

Grounding Detection
Avoids & notifies about invalid sampling.

Ultra-lightweight Design
Main body weights only 540g , thanks to the use of magnesium alloy.

Mounting & Dismounting within 10s
When integrated with DJI M350 RTK/M300 RTK

New Smart Motion Control Logic
Adjusts the container's movement speed based on the sampling stage, resulting in more representative water samples.

2L Max. Sampling Volume
Total weight including 2kg water is only ~2.7kg, within the max. payload limit of DJI M350 RTK

Multi-end Operations
DJI Pilot Web Platform



With its elegant mechanical and electronic design, Speedip V2 is extraordinarily lightweight, maximising UAV's payload capacity for carrying water samples. Four types of containers are available for different situations.

1L-PMMA - For static liquids & additional H20T Camera
2L-PMMA (standard) - For static liquids
2.7L-PMMA - For static liquids
1L-Stainless Steel - For dynamic or corrosive liquids



Speedip V2 has powerful environmental situational awareness, giving operators full confidence even during complex long-distance operations.





The smart "Motion Control Logic" adjusts the container's movement speed based on the sampling stage, resulting in a much smoother sampling process, more precise depth control, and more representative water samples.

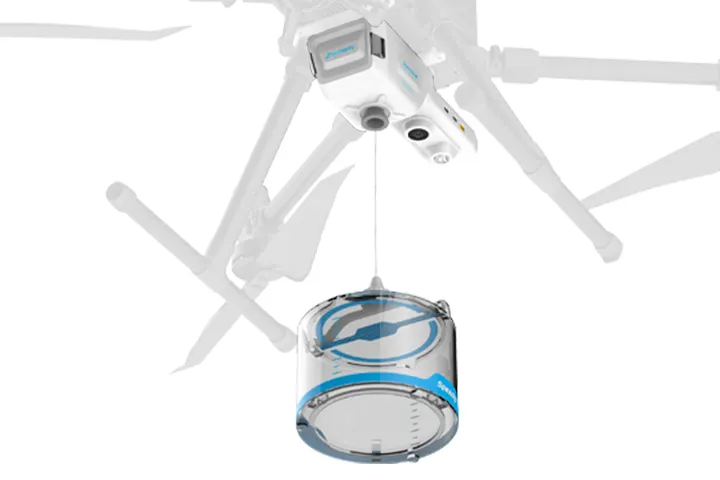

Speedip V2 is equipped with a unique rope tension and tangling detection mechanism that automatically stops and warns the operator when the container touches the ground or when the rope is about to tangle, minimising the possibility of irreversible tangling





The optimised mechanical components also enhance the reliability and stability of the device.





When the container is trapped, Speedip V2's emergency releasing function cuts the rope and brings the UAV back, so that loss can be minimised.
