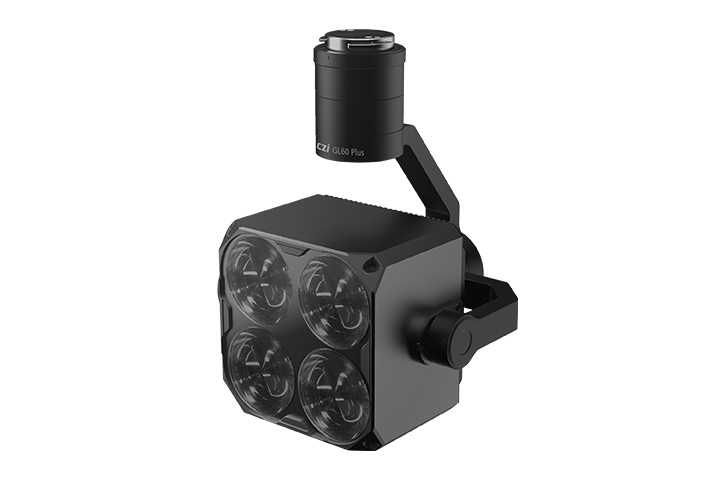

CZI GL60 Plus (Searchlight for M300)

Contact for Pricing
SKU: GL60PLUS

Enhance night operations with the sharp 15 degree light column of the GL60 Plus which adopts 4 groups of optical imaging components. Each group consists 4 lenses resulting in consistent colour and even brightness.


FREE SHIPPING ON ALL ORDERS OVER $300

All orders placed before 2pm will be delivered the next day on overnight track and trace courier. Larger items will be sent on a two day service to the South Island. Please note rural addresses (RD) can take 1-3 days longer.


Features

Enhance night operations with the sharp 15 degree light column of the GL60 Plus which adopts 4 groups of optical imaging components. Each group consists 4 lenses resulting in consistent colour and even brightness.

From about 150 meters away you can illuminate an area of up to 1225 square metres with a 11 lux/illumination.

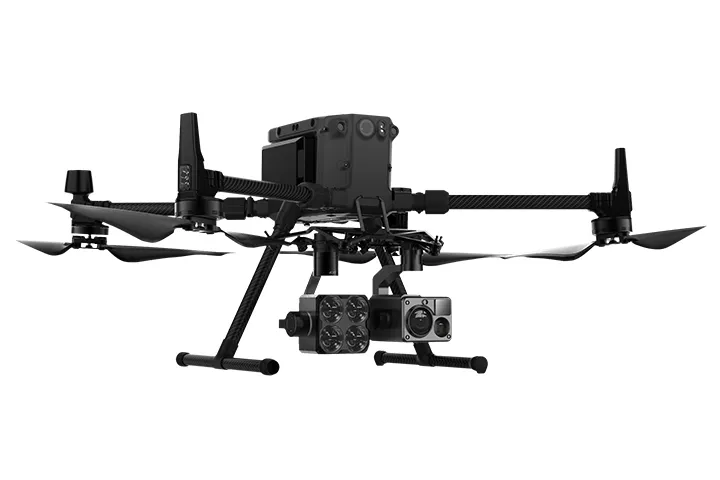

The GL60 Plus Searchlight has been born from DJI's PSDK payload program and is compatible with the DJI Matrice 300 RTK and DJI Matrice 200 V2 series systems. Its design is free of a fan which has enabled it to have a fully sealed body, providing excellent performance in adverse conditions where the Matrice 300's IP45 rating can be fully leveraged. The GL60 Plus serves as a very strong alternative spotlight to the Z15 Gimbal Spotlight.

Weighing in at 750g, the GL60 Plus is lightweight to ensure it does not impact flight time performance, while also drawing up to a maximum of 120W of power consumption.

Fully compatible with the DJI Pilot app for control over spotlight intensity and operation modes (normal vs. strobe). GL60 Plus can be configured through Multi-Gimbal Connection to operate in synchronization with any second gimbal/camera/payload on a second gimbal port.



Key Features of the GL60 Searchlight


Focused, sharp light column
IP55 water and dust resistant
Adjustable light intensity: 1-100%
High power up to 120W with super brightness to 13400 lumen output +/- 3%
15 degree beam angle
Dual gimbal synchronization for multi-gimbal configurations
Uses DJI SkyPort V2 which enables up to 120W of power supply

Compatibility

DJI Matrice 300 RTK
DJI Matrice 200 V2 Series (200, 210, 210 RTK)
NOT Compatible with DJI Matrice 200 V1 Series

Product Specifications

Product Model: GL60 Plus Searchlight
Powered By: DJI Skyport V2.0
Weight: 750g
Size: 126*131*167mm
FOV: 15°

Voltage: PSDK 17V+OSDK 24V
Led Power: 120W
Luminous flux: 13400lm±3%
LM effect: 111.67lm/W
Drone Flight  Height: 50M, 100M, 150M
Lighting Spot diameter: 13.2m(50M), 26.4m(100M), 39.5m(150M)
Lighting area: 136m²(50M), 544m²(100M), 1225m²(150M)
Central illuminance: 85Lux(50M), 24Lux(100M), 11Lux(150M)

Voltage: PSDK 17V
Led Power: 60W
Luminous flux: 8000lm±3%
LM effect: 133.33lm/W
Drone Flight  Height: 50M, 100M, 150M
Lighting Spot diameter: 13.2m(50M), 26.4m(100M), 39.5m(150M)
Lighting area: 136m²(50M), 544m²(100M), 1225m²(150M)
Central illuminance: 45Lux(50M), 12Lux(100M), 6Lux(150M)

Function mode:Lighting
Flashing
Gimbal Angle Adjustment
Auto-follow
Bright Adjustment
Gimbal rotation range:
Pitch -110°~+30° - horizontal ±200°
Working temperature: -20°C~+50°C

In the box

Cytop GL60 Plus Searchlight x 1
