DJI E-Port Development Kit

The development kit can convert the E-Port of the aircraft into multiple standard hardware ports like the XT30 Power Output Ports, USB 2.0 Port, and UART/PPS Signal Port, making it convenient for developers to connect hardware equipment and perform SDK development and debugging.

Compatibility

DJI Mavic 3 Enterprise Series

Matrice 350 RTK

Matrice 300 RTK

Matrice 30/30T

Product Specifications

Adapter Board Dimensions: 55×40×9 mm (L×W×H)

XT30 VCC Power Output:

DJI Mavic 3E/3T: 12-17.6 V/4 A

Matrice 30 Series: 19.2-26.1 V/4 A

Matrice 300 RTK: 24 V/4 A

Matrice 350 RTK: 24 V/4 A

XT30 12V Power Output: 12 V/2 A

XT30 5V Power Output: 5 V/2 A

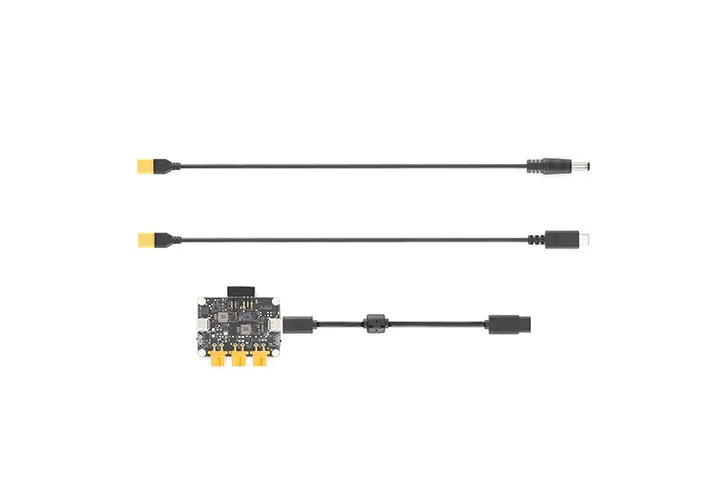

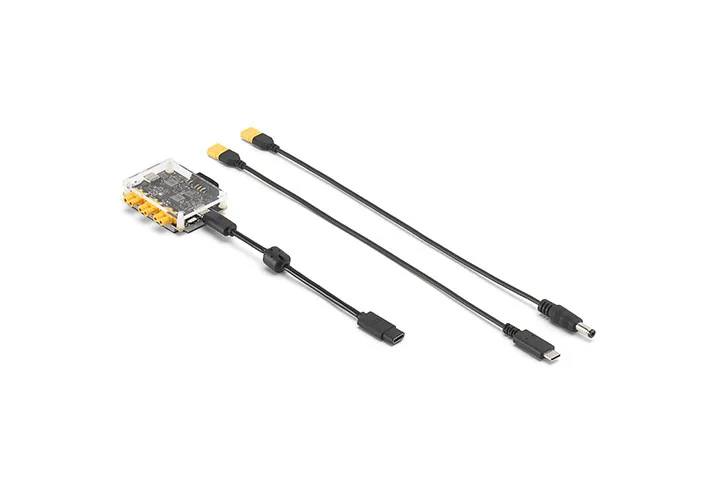

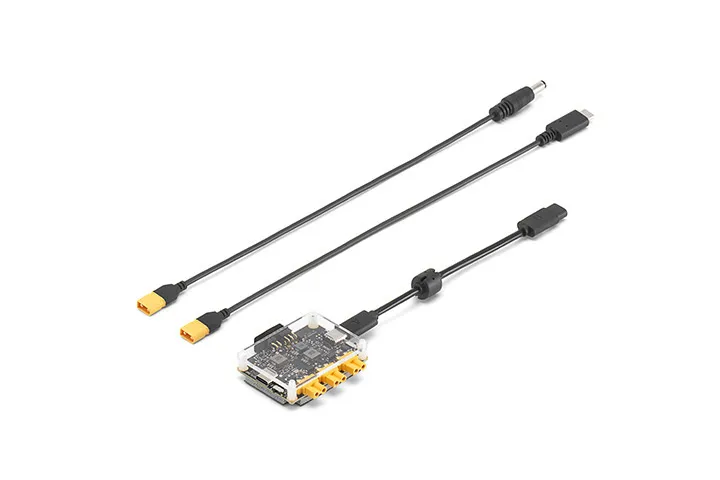

In the box

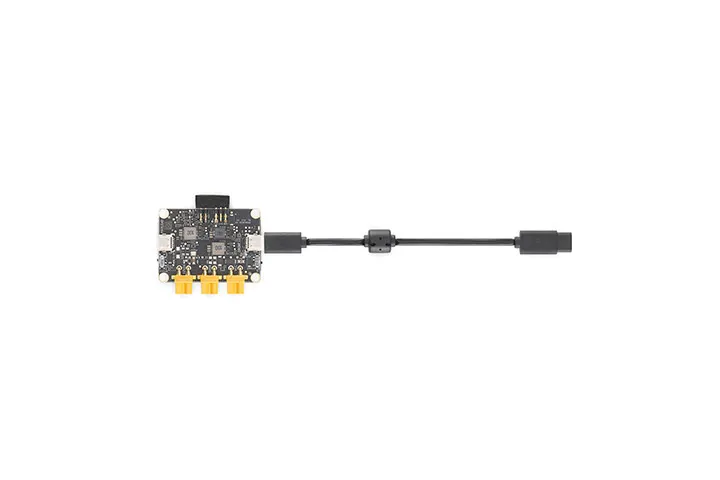

E-Port Adapter Board × 1

Pin Header Protector × 1

E-Port Coaxial Cable (150 mm) × 1

XT30 to USB-C Power Cable (300 mm) × 1

XT30 to DC5.5 Power Cable (300 mm) × 1
