DJI Zenmuse L3 (LiDAR)

The Zenmuse L3 features a 1535 nm long-range LiDAR, dual 100 MP cameras, and a precision IMU for fast and highly accurate 3D data capture. With DJI Terra support, you get a complete end-to-end workflow for reliable point cloud generation and advanced processing.

Key Features

Integrated Long-Range LiDAR Solution

Supported by next-gen hardware, L3 enables precise scans over extended ranges with faster point-cloud acquisition. Operators can preview, playback, and process point-cloud models on-site with DJI Pilot 2 and generate Task Quality Reports in DJI Terra for a streamlined, one-stop workflow.^[A][B]

High Accuracy: At 120 m flight altitude, typical system accuracy is 3 cm vertical and 4 cm horizontal (RMSE). At 300 m, 5 cm vertical and 7.5 cm horizontal (RMSE).^[C]
Exceptional Range: Detects up to 950 m @ 10% reflectivity (100 kHz) and up to 2000 m @ 80% reflectivity (100 kHz).^[C]
Efficient Workflows: Deep integration with DJI Pilot 2 and DJI Terra simplifies planning, capture, QA and post-processing.^[A][B]

1535 nm LiDAR with Flexible Scanning

Extended Detection: Up to 950 m @ 10% reflectivity (100 kHz) and 700 m @ 10% reflectivity (350 kHz) under typical test conditions.^[C]

Up to 16 Returns: Capture more ground points under canopy and complex structures to improve terrain models and asset detail.^[C]

Multiple Pulse Rates: 100/350/1000/2000 kHz settings help balance altitude, density and coverage for each mission.^[C]

Scanning Modes: Linear (H 80°/V 3°), Star-Shaped (H 80°/V 80°), and Non-Repetitive (H 80°/V 80°) to match mapping, utilities, forestry and complex-structure needs.^[C]

High-Precision POS/IMU System

The high-precision POS/IMU system fuses with RTK during post-processing to deliver accurate absolute position, speed and attitude, improving reliability and precision across environments.^[A][C]

Dual 100 MP RGB Mapping Cameras

Dual 4/3 CMOS, 100 MP (with 25 MP mode), mechanical shutter and a combined horizontal FOV of 107° deliver rich true-colour point-cloud colouring and efficient image capture for mapping and inspection.^[C]

Enhanced Operational Experience

Route Types: Waypoint, Area and Linear.
Point Cloud LiveView: RGB / Point Cloud / Side-by-Side, with real-time colouring options (Reflectivity, Height, Distance, RGB).
Model Playback & Merge: Review 3D point-cloud models on device and merge multiple flights for on-site QA.
Task Quality Reports: Auto-generated after collection in DJI Pilot 2; detailed processing and QA in DJI Terra.^[A][B]

Application Scenarios

With DJI Matrice 400 and DJI Terra, Zenmuse L3 is ideal for land surveying & mapping, electricity transmission, forestry, mining, infrastructure management, and more.^[A][B]

Selected Specifications

• Laser: 1535 nm; beam divergence 0.25 mrad; min effective distance 10 m^[C]
• Detection Range (10% reflectivity): 700 m (350 kHz), 950 m (100 kHz); up to 2000 m @ 80% (100 kHz)^[C]
• System Accuracy (RMSE): 3 cm V / 4 cm H @120 m; 5 cm V / 7.5 cm H @300 m^[C]
• Returns: up to 16 (at 100/350 kHz); up to 8 (1000 kHz); 4 (2000 kHz)^[C]
• RGB Cameras: Dual 100 MP (mechanical shutter), combined H-FOV 107°; 3 cm GSD @300 m^[C]
• Supported Aircraft: DJI Matrice 400 (with L3 single gimbal connector)^[C]
• Ingress Protection: IP54   Operating Temp: −20 to 50 °C^[C]

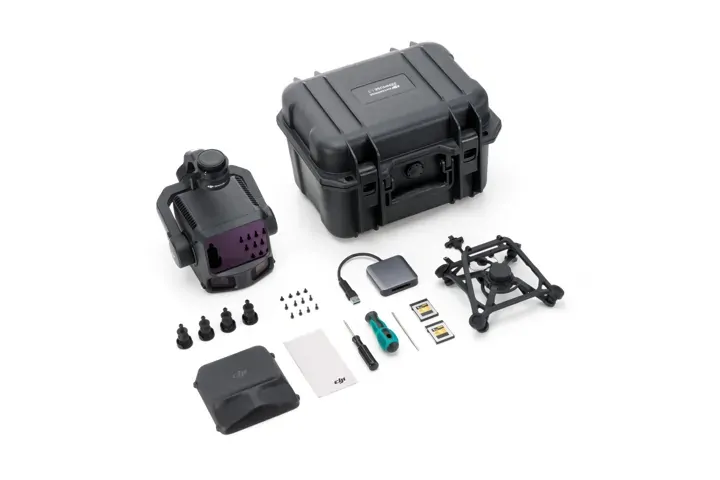

In the box

Zenmuse L2 × 1
Storage Case × 1
Lens Cap × 1
Storage Case × 1
Lens Cleaning Cloth × 1
