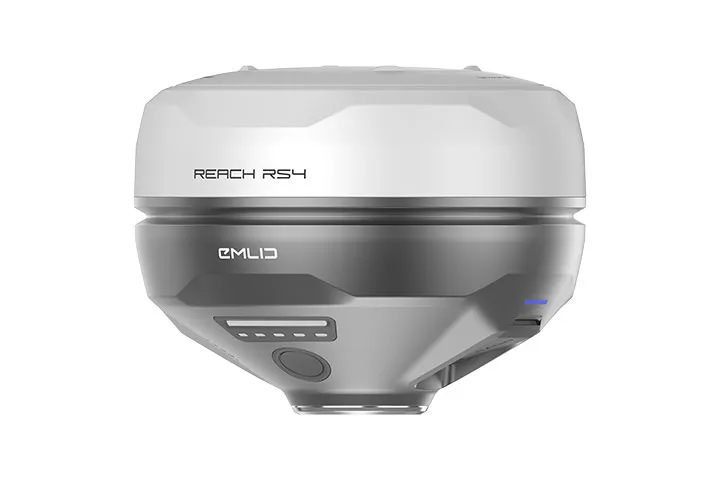

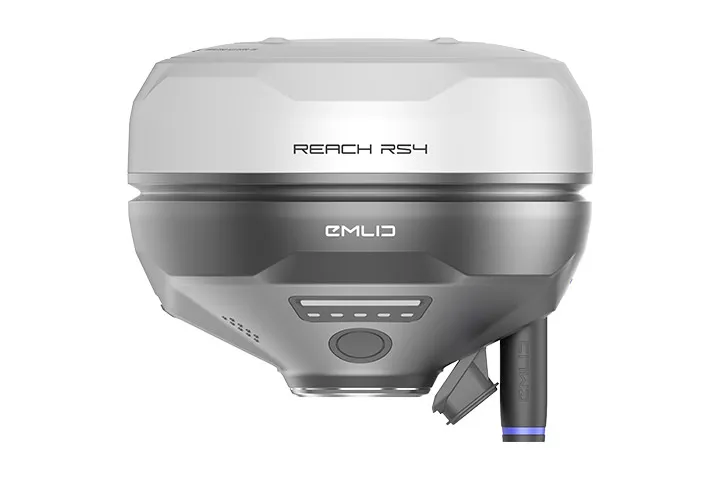

Emlid Reach RS4

Features

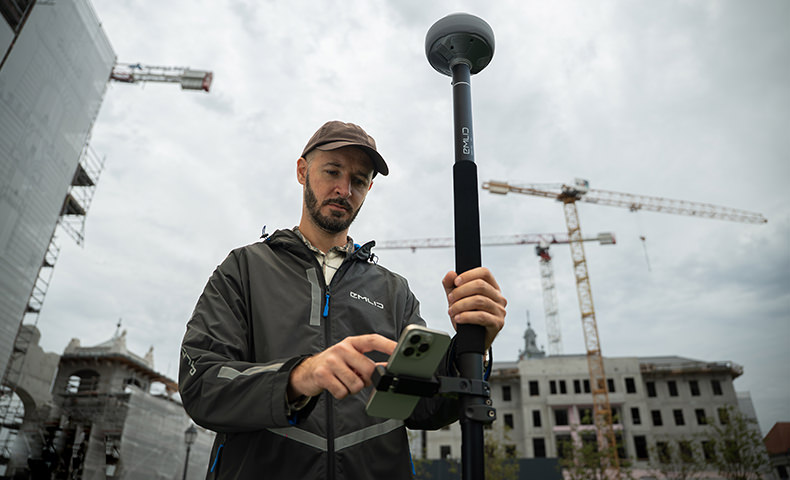

The Reach RS4 is the flagship all-band RTK GNSS receiver. With the Reach RS4, everything just got better; there are no flaws and no compromises. It makes fieldwork faster, more flexible and more reliable. So, what exactly has been improved compared to the Reach RS3?

Improved tilt compensation algorithm

5× faster tilt compensation — RS3 required 30–40 seconds to initialize; RS4’s next-gen IMU activates in just a few moves (5–7 seconds).

Quick-release mount

Backlash-free thread designed specifically for tilt workflows, ensuring accuracy even under pole tilt.

All-band support and new antenna

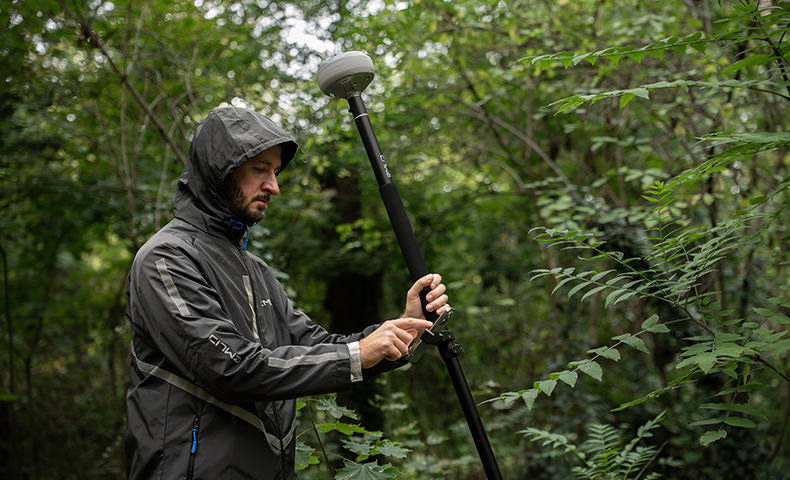

Tracks all bands, including L1/L2/L5/L6, 672 channels, providing greater multipath resistance and able to work even under a canopy!

Fully functional dual band radio system

…which means that the UHF bands can also be used to send corrections. This also comes with license support for radios. UHF radios support transmission power of up to 2 W, but the exact allowable power level depends on local country regulations and often requires a licence. The LoRa radio supports transmission power of up to 1 W, and the maximum output varies by country (detailed specs are coming soon). However, LoRa is optimised to remain within licence-free limits in most regions.

Even more durable

The RS4 is made from a new premium material: a magnesium alloy, which is often used in the manufacture of aerospace and medical equipment, as well as high-end electronics. It also features an IP68 rating and a wider operating temperature range of -40 to +65°C.

Drone mapping

The Reach RS4 can also be used as a base station for drones.

Product Specifications

Positioning

Precision
Static H: 4 mm + 0.5 ppm
V: 8 mm + 1 ppm
PPK H: 5 mm + 0.5 ppm
V: 10 mm + 1 ppm
RTK H: 7 mm + 1 ppm
V: 14 mm + 1 ppm
Convergence time ~5 s typically
Tilt compensation RTK + 2mm + 0.3 mm/°
Signal tracked
GPS: L1C/A, L2C, L5
GLONASS: L1OF, L2OF
Galileo: E1-B/C, E5a, E6
BeiDou: B1I, B1C, B2a, B3I
QZSS: L1C/A, L1C/B11, L2C,
L5
NavIC: L1-SPS Data, L5-
SPS
Number of channels 672
Update rates Up to 10 Hz

Connectivity

LoRa radio
Frequency rangу 868/915 MHz
Power 0.1 W
Distance Up to 8 km
UHF radio
Frequency range 410 - 470 MHz
Protocols TRIMTALK 450S**
Modulation type GMSK
LTE modem
Regions Global
Bands
FDD-LTE: 1, 2, 3, 4, 5, 7, 8,
12, 13, 18, 19, 20, 26, 28
TD-LTE: 38, 39, 40, 41
UMTS (UHPS/FDD): 1, 2, 5,
8
Quad-band,
850/1900,
900/1800 MHz
SIM card Nano-SIM
Wi-Fi 802.11a/b/g/n
Bluetooth Bluetooth 5.1 (BR/EDR + LE)
Ports RS-232, USB Type-C
Data protocols
Corrections NTRIP, RTCM3
Position output NMEA, LLH/XYZ
Data logging RINEX, NMEA, LLH/XYZ, UBX
Internal storage 16 GB

Mechanical

Dimensions 128.6 x 128.6 x 99.3 mm
Weight 920 g
Operating temperatures -40 to +65 °C
Ingress protection IP68


Electrical

Autonomy 16 hrs as RTK rover with tilt, 22 hrs of logging
Battery Li-Ion 5000 mAh, 7.2 V, 36Wh
Charging USB Type-C (PD): 5V—3A, 9V—3A, 12V—3A, 15V—3A

In the box

Emlid Reach RS4 × 1
