Emlid RTK RS3 Base Station Kit

$6,275.00
SKU: EMLIDRS3SBASE

The Emlid Reach RS3 is a multi-band RTK GNSS receiver for surveying, mapping, and navigation. Perfect for a base station set up, It offers centimetre-level accuracy in about 5 seconds,


  • Free Shipping on all orders over $350
  • Order before 2.00pm for same day dispatch
  • Click & collect from Auckland & Christchurch stores
  • Local warranty, support and repairs

Features

High-precision IMU - Tilt:RTK+2mm+0.3mm/°
Survey with under 20 mm precision at up to 60 degree tilt. Reach RS3 is calibration-free and works out of the box. The receiver is immune to magnetic disturbances, so metal objects and electronics don’t affect the accuracy.

Get a Fix in 5 seconds
The receiver gets a cm-accurate solution in ~5 seconds and maintains robust performance even when the sky is partially obstructed or the unit is tilted. Signals tracked: GPS/QZSS, GLONASS, BeiDou, and Galileo.

18 hours of work with tilt compensation
The industrial-grade battery can endure up to 22 hours of logging or 18 hours of work as an RTK rover with tilt compensation. For uninterrupted multi-day operations, simply connect a power bank via USB-C.

RINEX logging and PPP support
Reach RS3 records raw data in the RINEX format for post-processing. Use our free PPK software, Emlid Studio, or any other software with RINEX support. Logs are also compatible with OPUS, AUSPOS, and PPP services.

Built-in LTE modem
Insert a SIM card into Reach RS3 and let it broadcast or receive corrections via NTRIP.

Rugged and compact
The polycarbonate body coated with elastomer makes Reach RS3 impact- resistant and ready for harsh conditions. The receiver is dustproof and waterproof to IP67 with an operating temperature of -20° to 65° C (-4° to 149° F).




Get corrections from CORS, Reach, or third-party base

NTRIP
Work in RTK with VRS or a single baseline CORS network. You can also connect another GNSS receiver with RTCM3 support using Emlid NTRIP Caster.

Dual-band radio

LoRa
868/915 MHz
Gets or sends corrections between two Reach receiver—perfect for areas with no internet coverage.

450 MHz
Gets corrections from bases with radios that transmit TRIMTALKTM 450S—a great option to mix and match receivers in your fleet.




Emlid Flow
The Emlid Flow mobile app manages all field-related tasks, including receiver configuration, RINEX logging, data collection, and stakeout.
• Tilt compensation
• Points and lines
• Coding
• Localization
• Background WMS/WMTS maps
• Sync with up to 3 devices




Emlid Flow 360
The cloud-based Emlid Flow 360 allows you to access your survey data in a browser and easily prepare, manage, and export your projects.
• Creating custom code libraries
• Adding WMS/WMTS layers
• Satellite map
• Export and import of survey data
• Project management and data sync

The basic features are free. Professional survey tools are available with the Survey plan. Upgrade your Emlid Flow and Flow 360 with a single subscription.

In the box

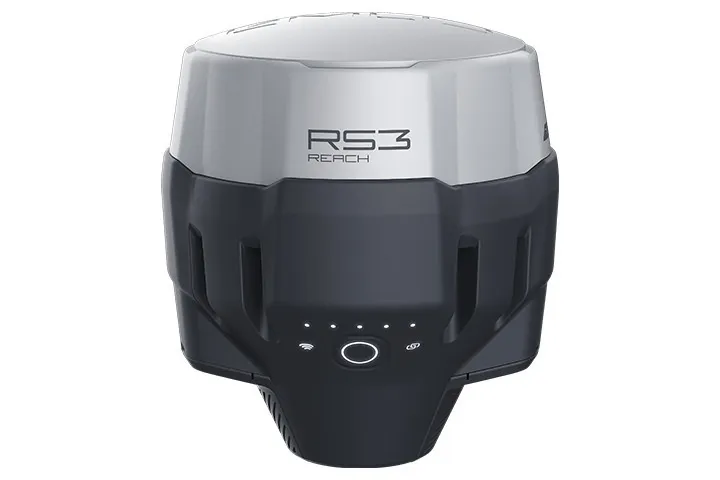

Emlid Reach RS3 × 1

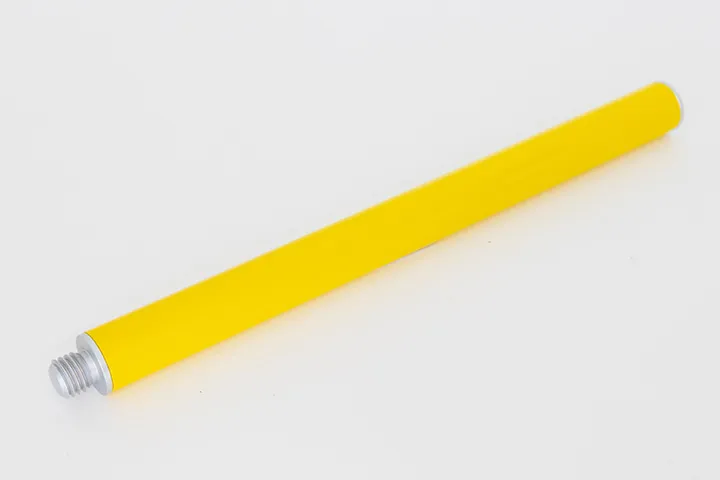

Extension Pole (30cm) × 1

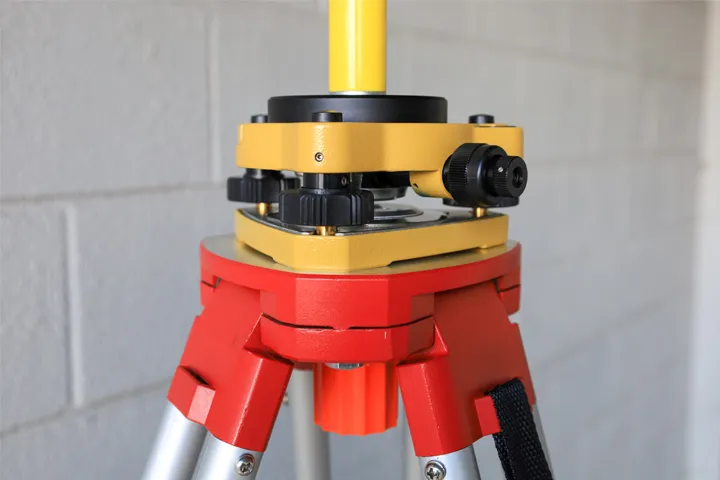

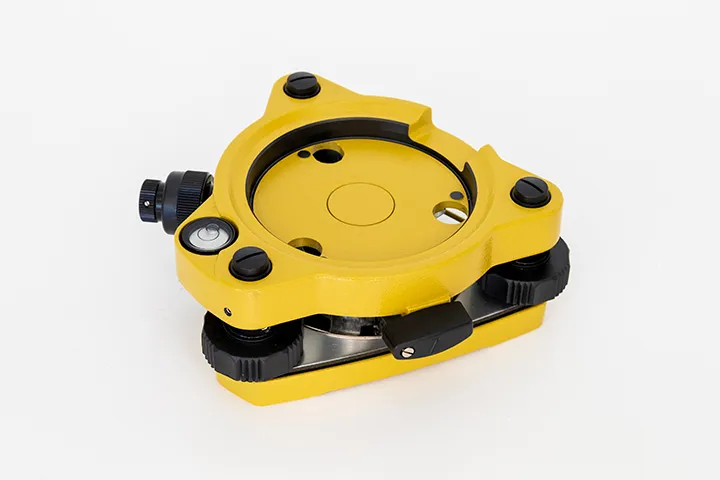

Tribrach with Optical Plummet × 1

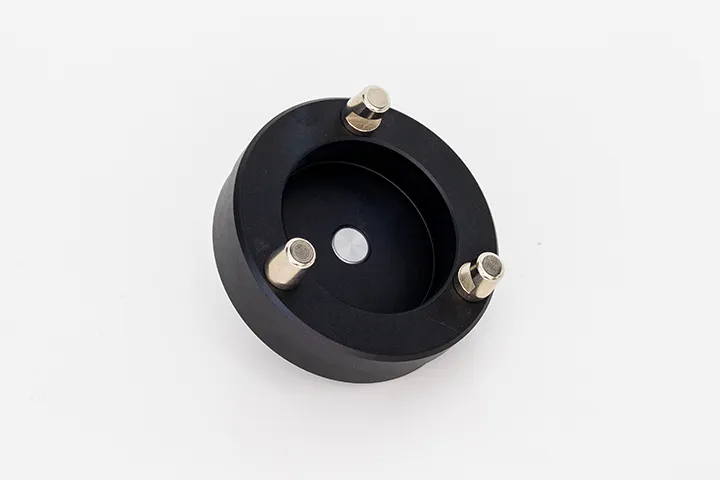

Rotating Tribrach Adapter × 1

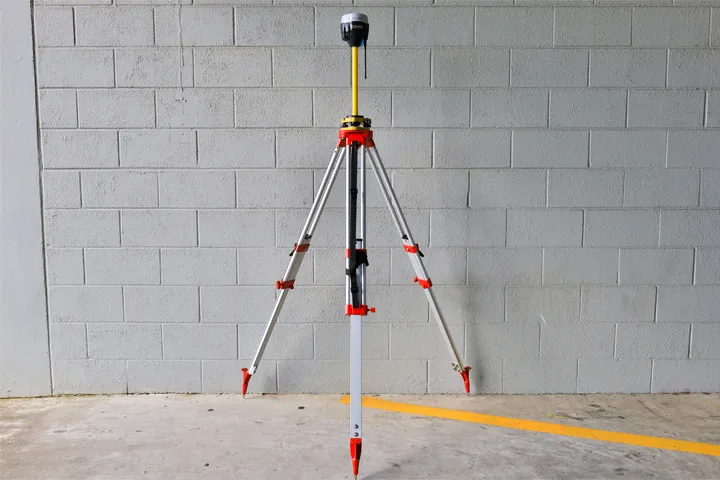

Aluminium Tripod × 1
